MSE PRO 1-60%RH 98L ESD Safe Nitrogen Cabinet
Introduction

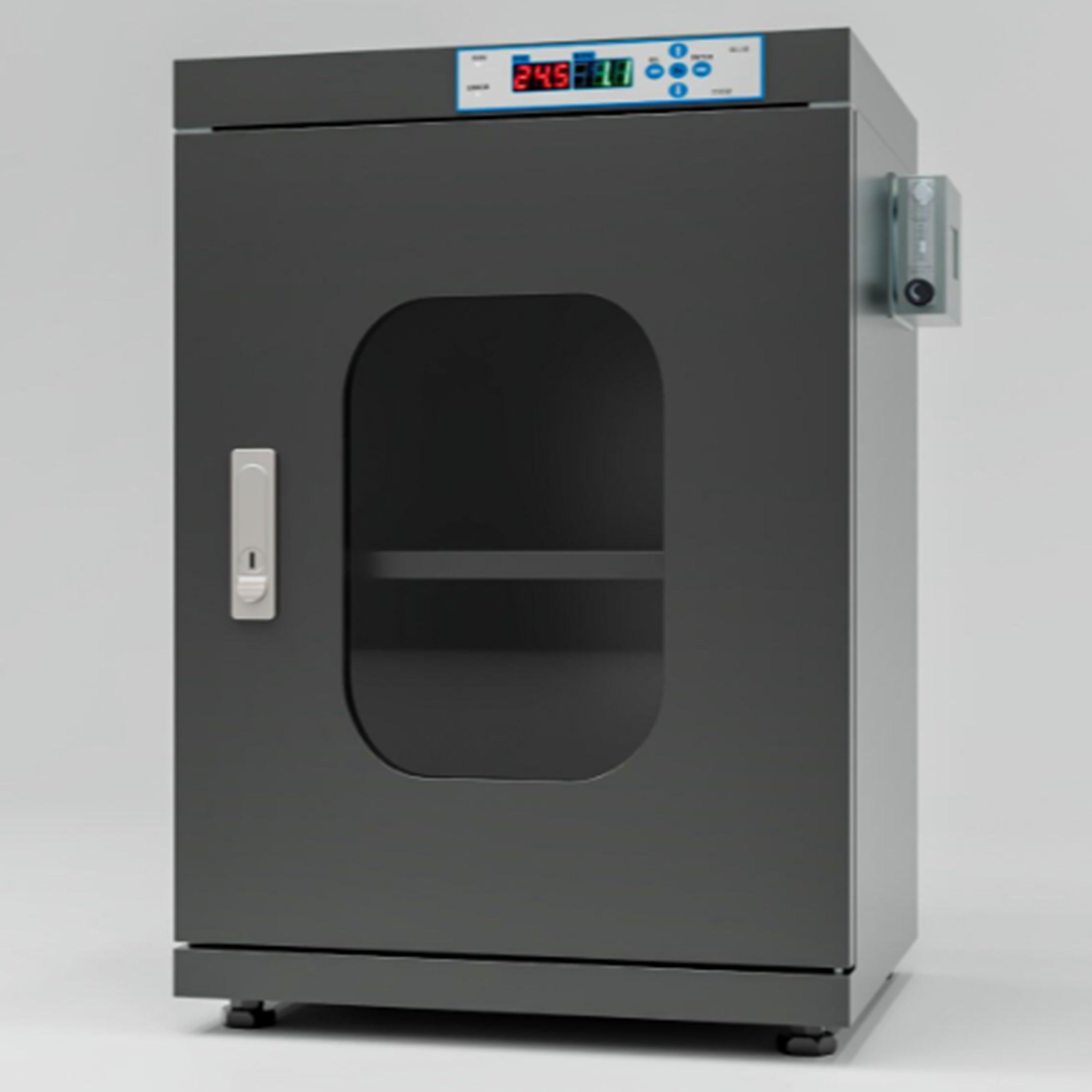

The MSE PRO 1–60%RH 98L ESD Safe Nitrogen Cabinet provides precise humidity control and nitrogen-assisted protection for moisture-sensitive electronic components such as IC, BGA, and PCB. With an adjustable humidity range of 1–60% RH and a U.S. Honeywell humidity sensor, the cabinet ensures stable and accurate environmental control. The integrated nitrogen input and flow meter automatically regulates nitrogen supply based on the humidity setting, reducing nitrogen consumption while preventing moisture and oxidation damage.
Constructed with 1.2 mm galvanized steel and a tempered glass door, the cabinet offers excellent durability, airtight sealing, and reliable protection for sensitive materials. Designed in compliance with J-STD-033B standards, it is an ideal storage solution for electronics manufacturing, laboratories, and research environments.
Key Features
-
Adjustable humidity range: 1–60% RH
-
98L storage capacity
-
Automatic nitrogen supply control to maintain stable humidity
-
Up to 70% reduction in nitrogen consumption
-
Independent temperature and humidity display with memory function
-
1.2 mm galvanized steel cabinet with Dupont coating
-
3.2 mm tempered glass door with airtight sealing
-
Zinc alloy lock for enhanced security
-
PU casters with brakes for easy mobility
Specification
| SKU | MA0067146 |
| Interior Dimension | W446 × D372 × H598 mm |
| Exterior Dimension | W448 × D400 × H688 mm |
| Packing Dimension | W540 × D480 × H850 mm |
| Humidity Range | 1–60% RH Adjustable |
| Volume | 98 L |
| Net/Gross Weight | 20 kg / 31 kg |
| Shelf | 1 pc (Max load: 50 kg) |
| Voltage | 110V 60Hz |
Recommended Storage Humidity Guide
|
Relative Humidity
|
Suggested stored items
|
|
55%~45%RH
|
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
|
|
45%~35%RH
|
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
|
|
35%~20%RH
|
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
|
|
10%~20%RH
|
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
|
|
10%-1%RH
|
IC, BGA, copper, silver, and materials very sensitive to humidity, etc
|
MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.
