Key Features:
-
Adjustable humidity range: 1–60% RH
-
1436L large storage capacity
-
Drawer-style compartments for organized storage and easy access
-

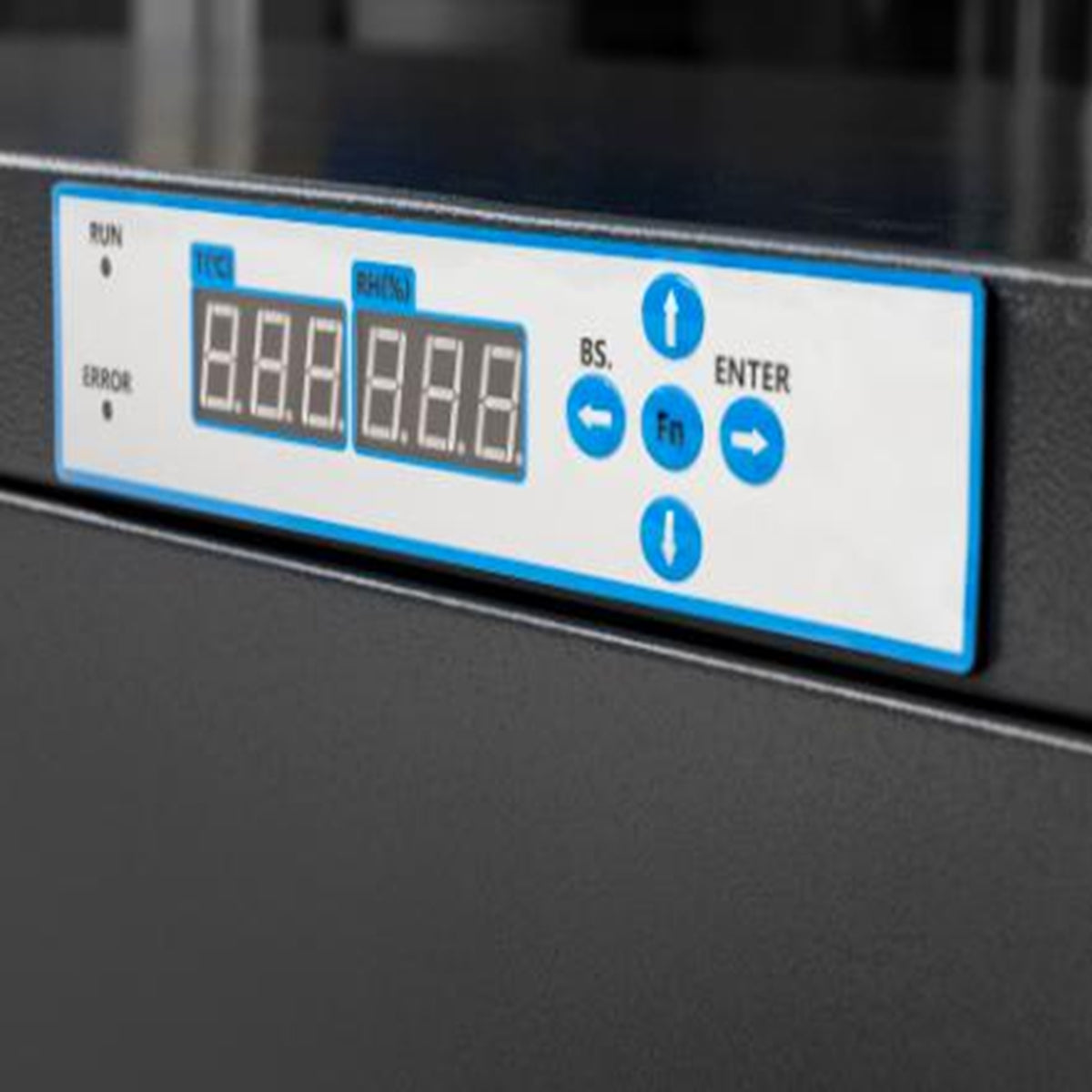

LED digital humidity controller for precise monitoring
-
ESD-safe cabinet design for electronics protection
-
Modular design for easy maintenance and component replacement
-
Calibration reminder function for sensor accuracy
-
Plug-and-play operation for simple installation
-
Suitable for electronics manufacturing, laboratories, and research environments
Specification
| SKU | MA0067152 |
| Interior Dimension | W1198 × D682 × H1723 mm |
| Exterior Dimension | W1200 × D710 × H1910 mm |
| Packing Dimension | W1300 × D800 × H2130 mm |
| Shelf Dimension | Drawer: W510 × D576 × H108 mm (24 pcs) |
| Humidity Range | 1–60% RH Adjustable |
| Volume | 1436 L |
| Net/Gross Weight | 144 kg / 205 kg |
| Recovery Time | 10 min (after door open 30s and close) |
| Precision | ±3.0% RH; Resolution 0.1% RH |
| Shelf | Drawer type: 24 pcs, Max load 30 kg/pc |
| Voltage | 110V 60Hz |
Recommended Storage Humidity Guide
|
Relative Humidity
|
Suggested stored items
|
|
55%~45%RH
|
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
|
|
45%~35%RH
|
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
|
|
35%~20%RH
|
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
|
|
10%~20%RH
|
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
|
|
10%-1%RH
|
IC, BGA, copper, silver, and materials very sensitive to humidity, etc
|
MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.
The size, voltage, and design are customizable. Please contact us if you have any customization need.
The signal alarm, buzzer alarm and data logger are available with additional cost.
The product image is for reference only. MSE may upgrade the design without notice.
