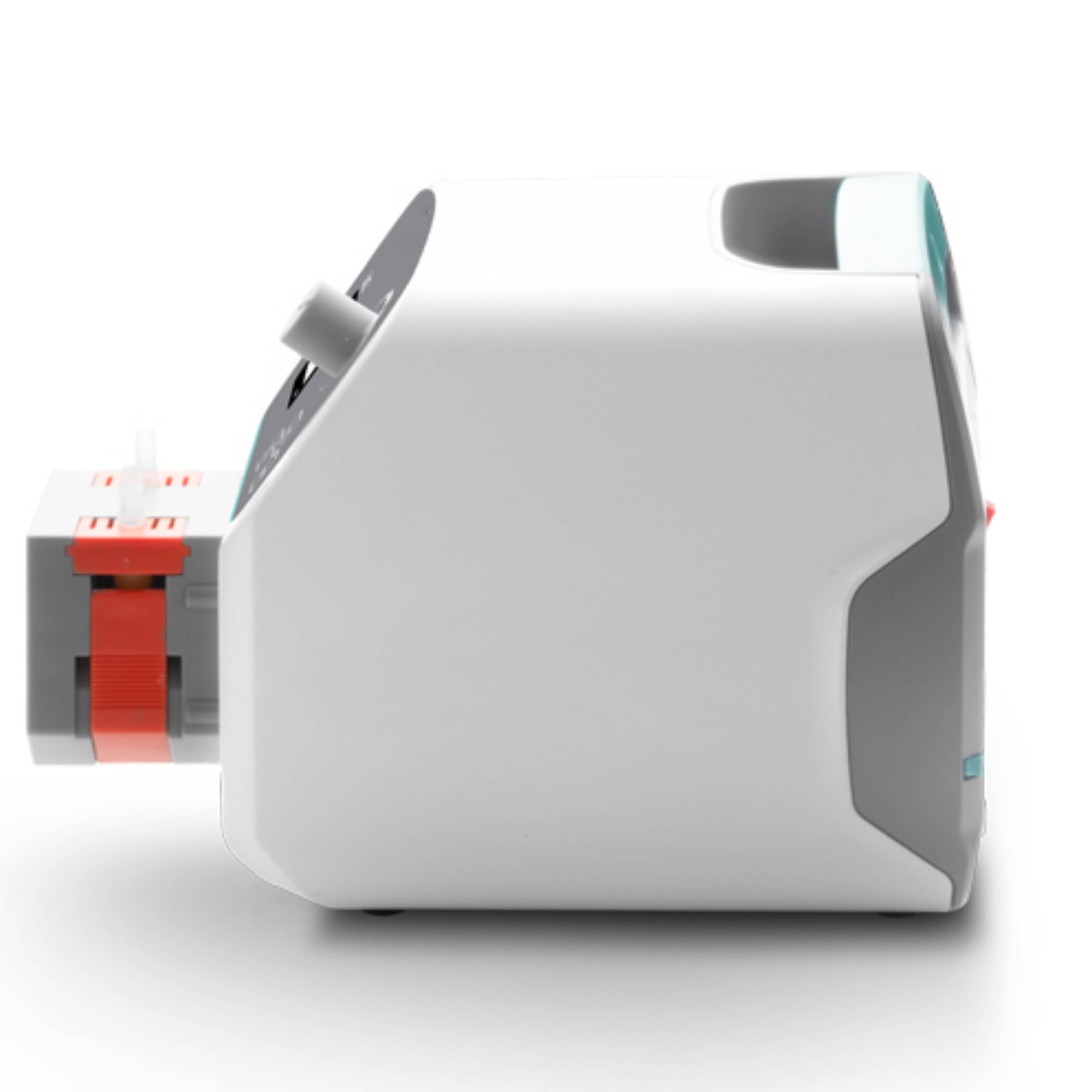

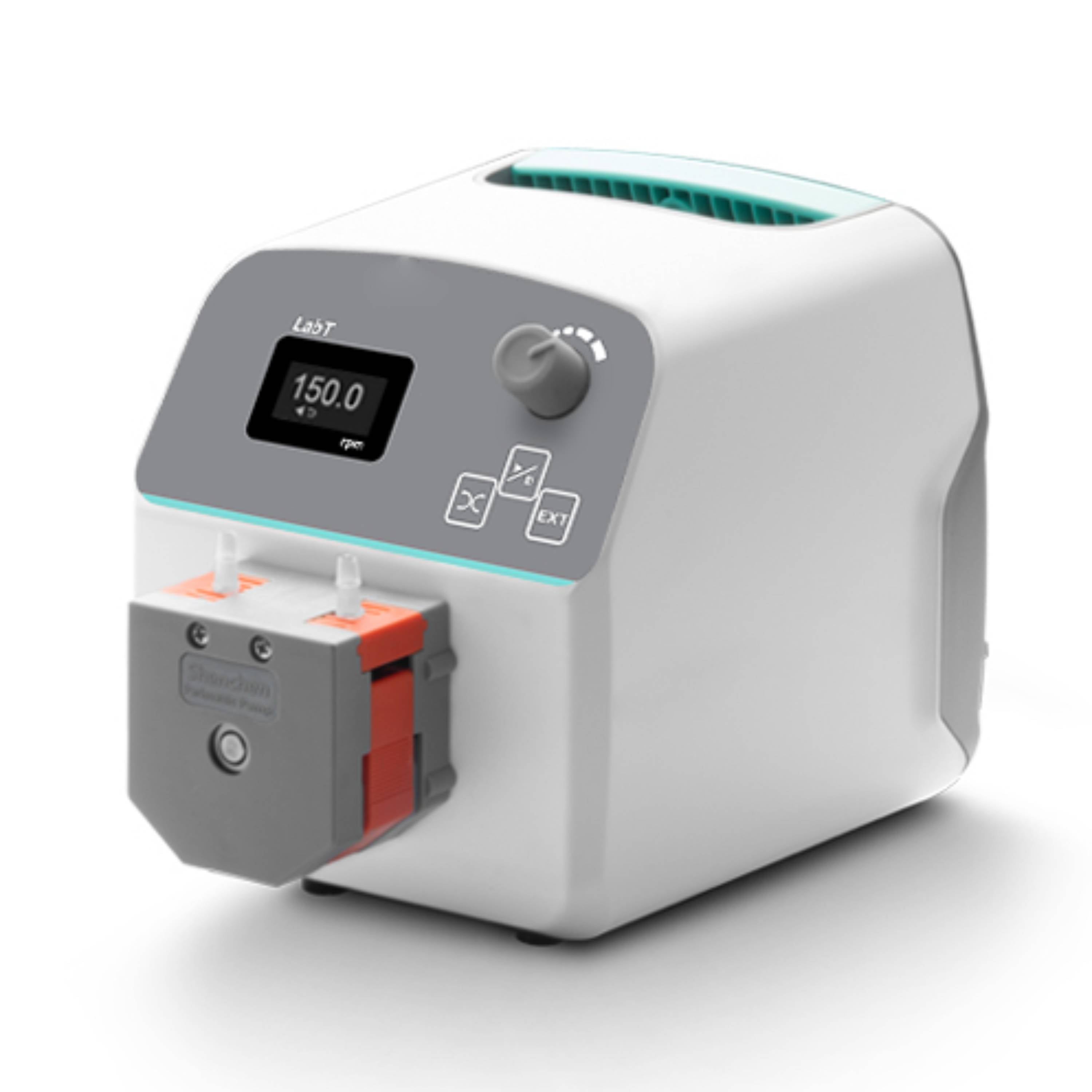

MSE PRO Compact Silent Type Peristaltic Pump with Speed Range 0.1-300rpm
Regular price
$ 1,149.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ Compact Silent Type Peristaltic Pump with Speed Range 0.1-300rpm
Product Introduction
- Easy to install pump head, stable flow rate.
- Lower power, silent working.
- High definition OLED display screen.
- Convenient to adjust the speed through digital knob.
- Power-down memory function.
Technical Parameter
|
Flow rate range |
0.0024-190mL/min |
|
Speed range |
0.1-300rpm, reversible |
|
Speed resolution |
0.1rpm |
|
Speed control |
Digital knob |
|
Control method |
Mechanical keypad |
|
Keypad lifetime |
300,000 times |
|
Display |
OLED display (0.96") |
|
Communication interface |
RS485 support MODBUS protocol |
|
External control |
Start/stop direction control (switch signal),0-5V,4-20mA (standard); 0-10V (optional) |
|
Power supply |
DC 24V/1A with power adapter |
|
Dimension |
180x115x125mm (LxWxH) |
|
Weight |
800g |
|
Condition temperature |
0-40℃ |
|
Relative humidity |
<80% |
|
IP rate |
IP31 |
Pump Head Parameter
|
Model |
Speed range |
Tubing |
Flow rate (mL/min) |
|
MA0066874 |
0.1-300rpm |
1x1, 2x1, 2.5x1, 3x1, |
0.0024-190 |
