MSE PRO™ Compact Multi Peristaltic Pump with Speed Range 0.1-350rpm
Description

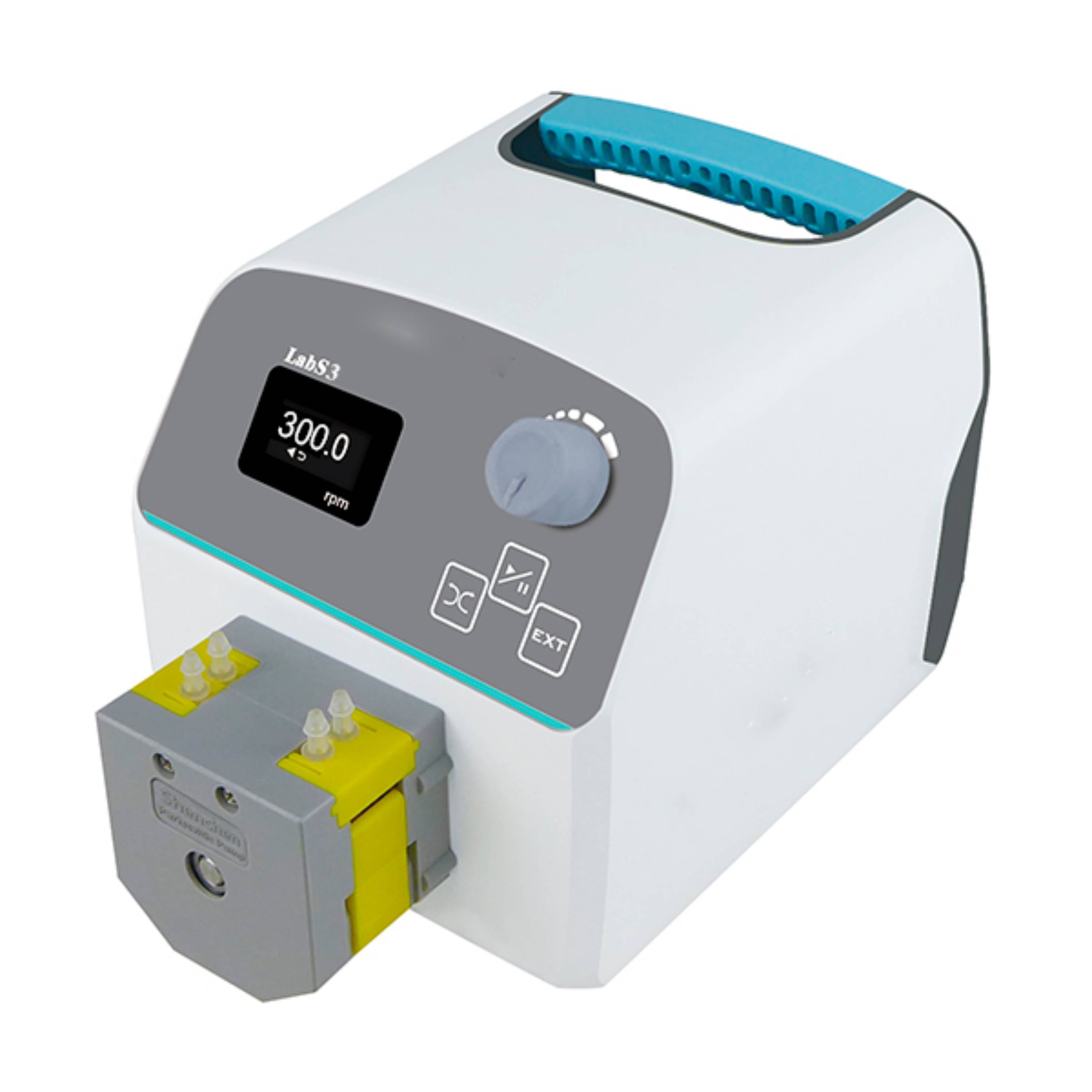

MSE PRO is a compact, simple and low vibration peristaltic pump with an ABS plastic housing. This pump will be phased out and replaced by the silent LabT pump. At flow rates between 0.1 - 350 rpm you have the ability to run at custom speeds for your application.
The OLED display gives you an easy overview of speed, direction and external control.
This pump must be ordered with the pump head you need for your application as it is not easy to replace afterwards.
Technical Specifications
|
Flow rate range |
0.0024-190 ml/min/channel |
|
Speed range |
0.1 - 350 rpm |
|
Speed resolution |
0.1 rpm |
|
Display |
0.96 "OLED display |
|
Operation |
Rotary switch and mechanical keypad |
|
Speed control |
Rotary switch |
|
External signal for speed control |
0-5V, 4-20 mA (standard), 0-10V (optional) |
|
External signal for start / stop and direction |
Switch signal |
|

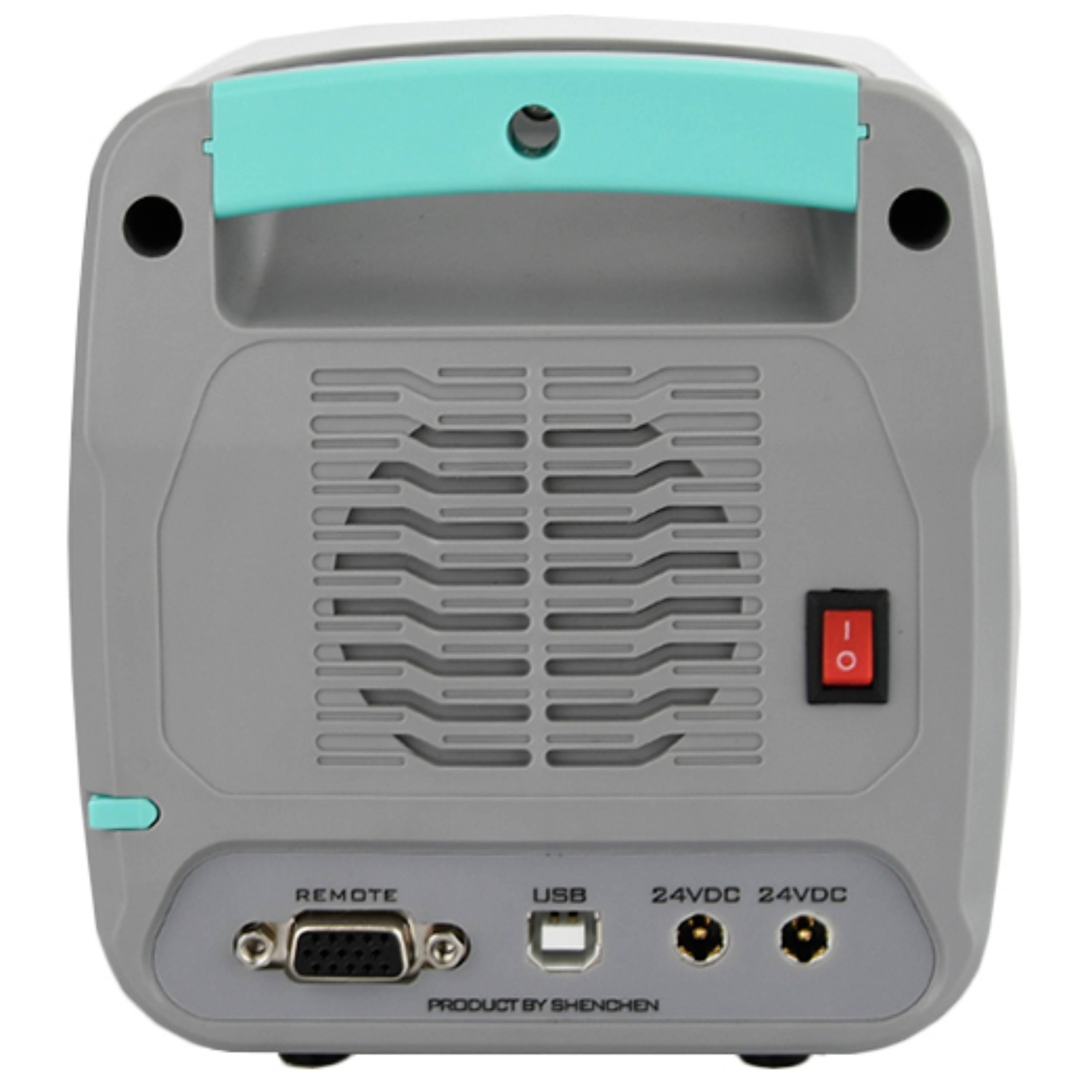

Communication interface |
USB connector, RS485 support (MODBUS protocol, RTU mode) |
|
Power supply |
DC 24V / 1A with power adapter |
|
Pump housing material |
ABS plastic |
|
Pump housing dimensions: (LxDxH) |
190x128,3x135 mm |
|
Operating temperature |
0-40°C |
|
Relative humidity |
<80% |
|
IP rate |
IP31 |
|
Weight |
1.1 kg |
Parameters
|
Motor |
Pump head |
Tubing size (#) |
Tubing dimensions |
Flow rate (ml/min/channel) at 0.1 - 300 rpm (measured with water) |
|
MA0066877 |
MiniPump01 |
13# |
0.8 × 1.6 |
0.0028 - 8.28 |
|
MiniPump01 |
14# |
1.6 × 1.6 |
0.0113 - 33.88 |
|
|
MiniPump01 |
19# |
2.4 × 1.6 |
0,026 - 77.23 |
|
|
MiniPump01 |
16# |
3.2 × 1.6 |
0.038 - 114.31 |
|
|
MiniPump01 |
25# |
4.8 × 1.6 |
0.063 - 190.00 |
|
|
MiniPump02 |
- |
1 x 1 |
0.005 - 15.01 |
|
|
MiniPump02 |
- |
2 x 1 |
0.182 - 54.63 |
|
|
MiniPump02 |
- |
2.5 x 1 |
0.256 - 76.84 |
|
|
MiniPump02 |
- |
3 x 1 |
0.036 - 108.39 |
Pump head information

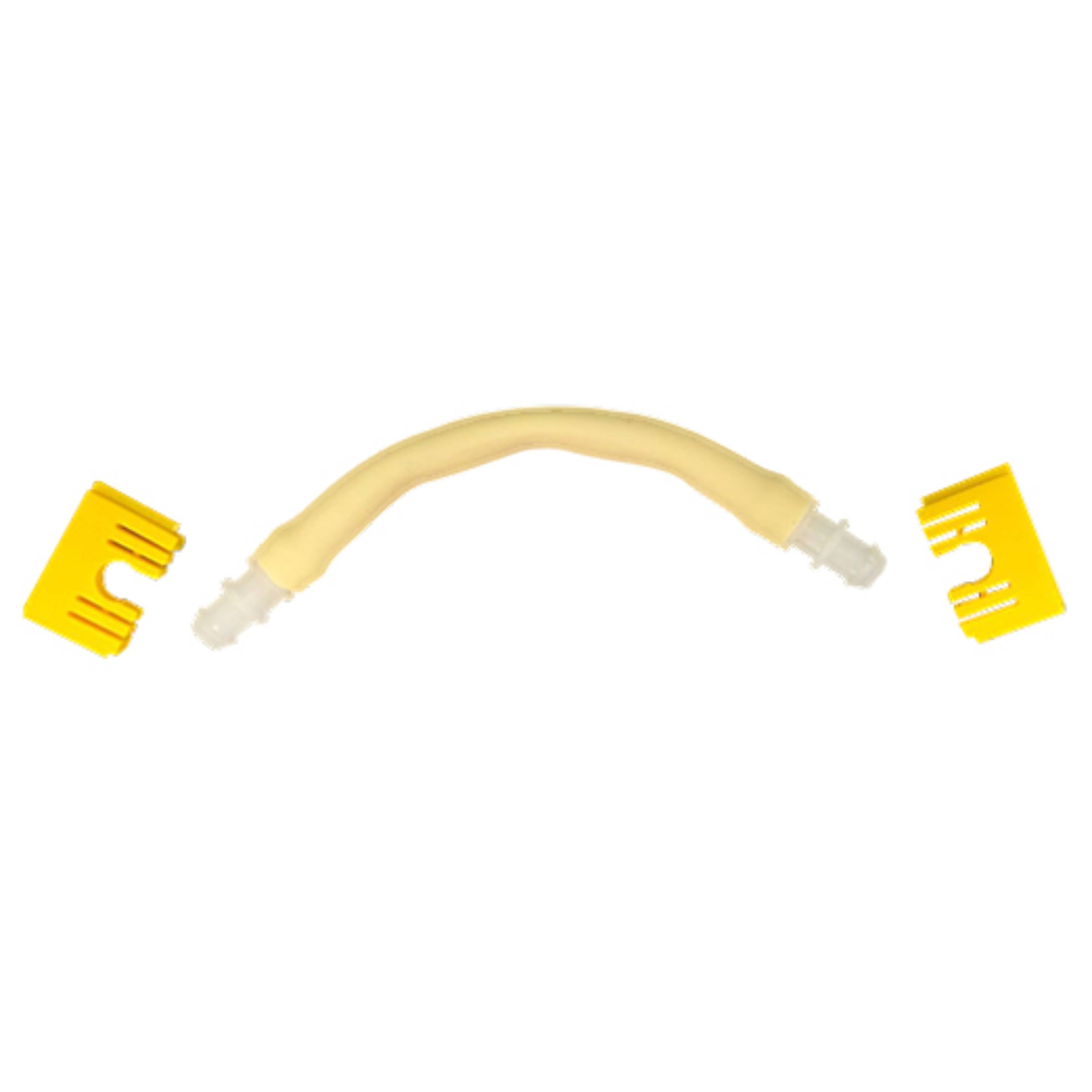

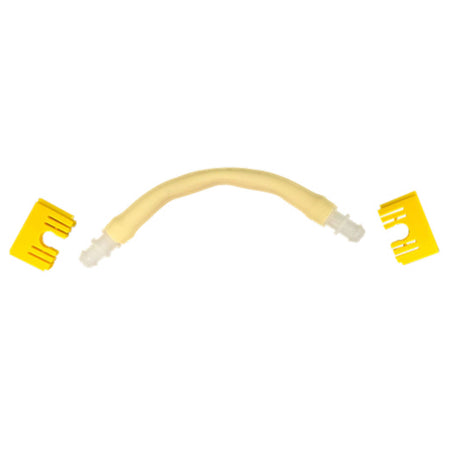

- The MiniPump01 pump head has 1 channel, and 5 different sizes of PharMed tube sets with holders are included.

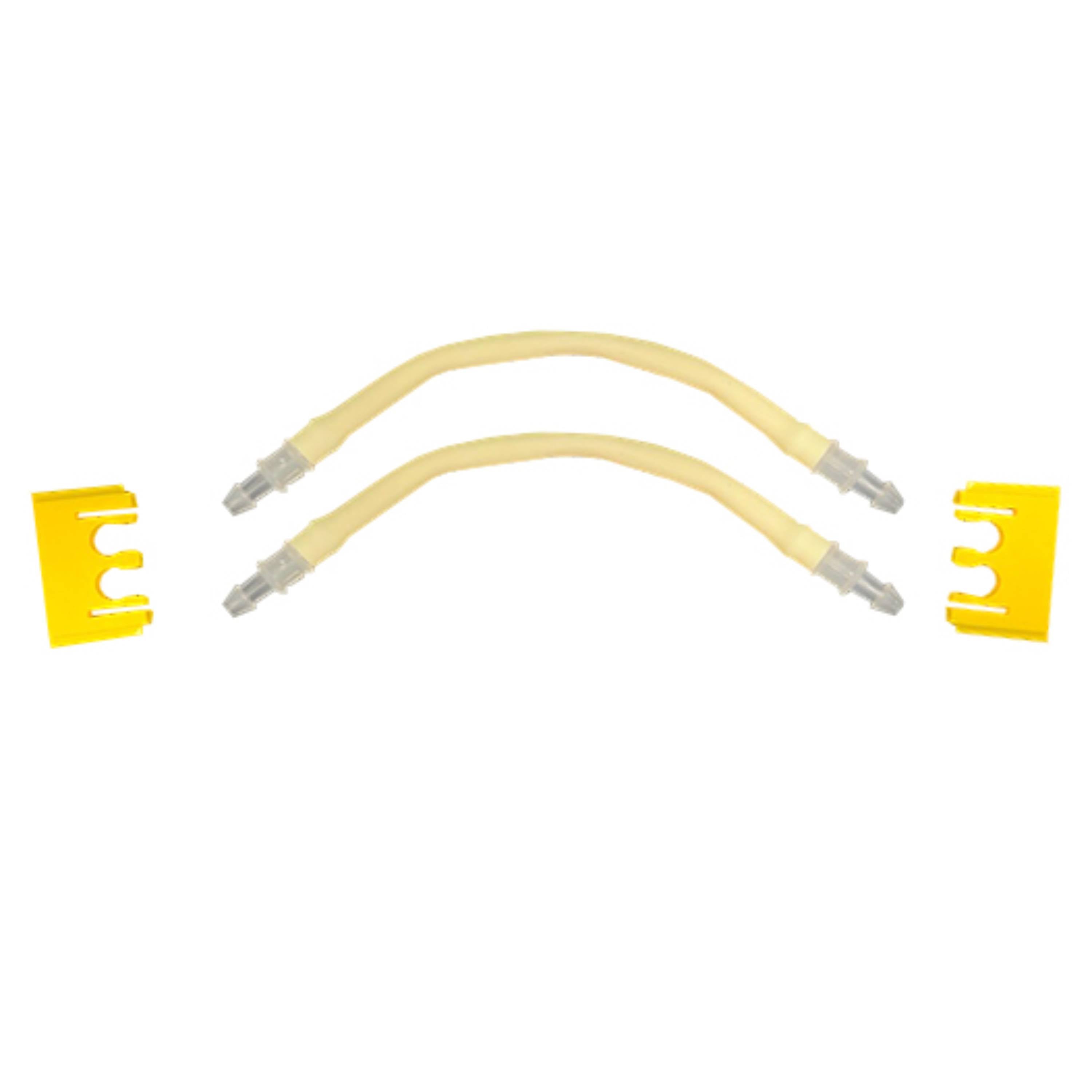

- The MiniPump02 pump head has 2 channels, and 4 different sizes of PharMed tube sets with holders are included.
