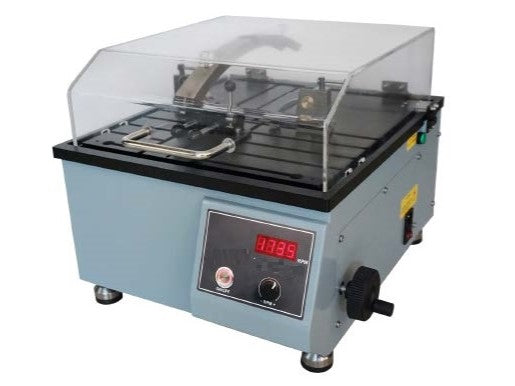

MSE PRO Manual Metallographic Abrasive Cutting Machine, Max. Cutting Diameter 30mm
Regular price
$ 6,269.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ Manual Metallographic Abrasive Cutting Machine, Max. Cutting Diameter 30mm
MSE Supplies provides a manual metallographic abrasive cutting machine. This reliable tool is widely utilized for cutting PCB boards, semiconductor components, wafer ceramics, quartz glass, and petrographic specimens."
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
- Dry or wet cutting capability
- T-slot clamping device for effortless fixture installation
- Fully transparent, high-strength hood for clear observation of the cutting process
- Unlockable top cover for accommodating specimens beyond the platform range
- Adjustable rotation speed: 200-3000 RPM
- Motor equipped with a cooling fan and overload protection
MSE supplies offers various metallographic cutting machines with different capacities, please contact us for more information. Extra cutting fluid and diamond/CBN blades are also available upon request.
Technical Specifications:
| SKU# | MA1388 |
| Cutting Method | Manual (Blade operates via hand-wheel) |
| Wheel Diameter | Φ180-230mm |
| Wheel Arbor Size | 12.7mm |
| Wheel Speed | 200-3000rpm |
| Max. Cutting Diameter | Φ30mm |
| Table Travel | 100mm |
| Table Dimensions (WxD) | 350x370mm |
| Electric Power | 900W |
| Voltage/Frequency | 110V/50Hz |
| Cooling Type | Dipped into the coolant |
| Water Tank Capacity | Internal, around 3L |
| Dimension, Closed (WxDxH) | 470x505x359mm |
| Dimension, Open (WxDxH) | 470x556x631mm |
| Weight | 60kg |
