MSE PRO Automated Acid Etching System for Macrostructure Analysis with PLC Control
Couldn't load pickup availability
Still have questions? Ask our experts!

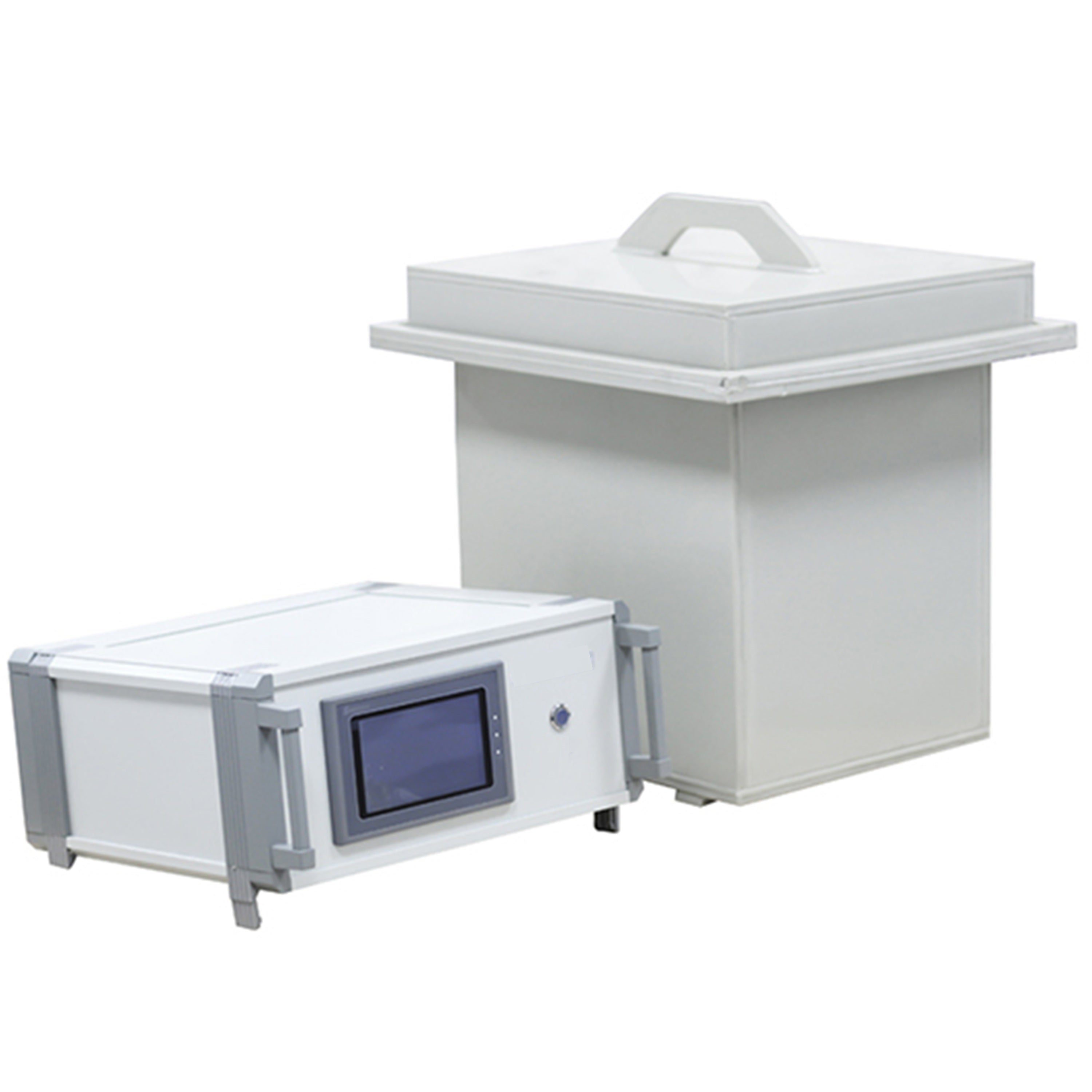

MSE PRO Automated Acid Etching System for Macrostructure Analysis with PLC Control
1. Introduction
The MSE PRO Automated Acid Etching System for Macrostructure Analysis with PLC Control is designed for macrostructure hot acid etching of steel samples in accordance with standard inspection methods for evaluating raw material defects and forging flow lines. The system uses PLC and thyristor-based control to deliver more precise heating and process stability while minimizing hydrochloric acid volatilization for an improved working environment. With touchscreen operation, automatic liquid level detection, temperature calibration capability, and a corrosion-resistant acid tank, this system offers a reliable and efficient solution for metallographic laboratories, steel inspection, and quality control applications.
2. Key Features
- Designed for macrostructure hot acid etching of steel samples to inspect raw material defects and forging flow lines
- PLC and thyristor control provide precise temperature regulation while reducing hydrochloric acid volatilization
- Automatic liquid level detection, alarm, and power cut-off help prevent dry heating
- Touchscreen interface with temperature calibration function for more accurate sample temperature control
- Three-layer sample tray design allows multiple samples to be processed at the same time
- Corrosion-resistant acid tank with detachable components, filter plate, and drain valve for easy cleaning and maintenance
3. Specifications
| Specification | Details |
|---|---|
| Product Title | MSE PRO Automated Acid Etching System for Macrostructure Analysis with PLC Control |
| Control System | PLC and thyristor control |
| Temperature Range | Room temperature to 100°C |
| Time Range | 0-99.9 min |
| Temperature Error | ±1°C |
| Timer Function | Time reminder function included |
| Heating Method | Electric heater directly immersed in the lower part of the hydrochloric acid solution for uniform and efficient heating |
| Standard Heater Power / Voltage | 110V, 60HZ |
| Acid Tank External Dimensions | 420 × 480 × 580 mm |
| Acid Tank Effective Dimensions | 400 × 400 × 250 mm |
| Maximum Sample Size | 400 × 400 mm |
| Sample Tray Capacity | Three-layer tray design |
| Acid Tank Material | Special material resistant to strong acid and high temperature |
| Safety Features | Automatic liquid level detection, alarm, and automatic power shut-off |
| Standard Configuration | Controller, acid tank with electric heater, temperature sensor, sample basket, filter plate, manual, acid-resistant gloves, certificate, outlet pipe, hose clamp |
MSE supplies offers various metallographic equipment, please contact us for more information.
