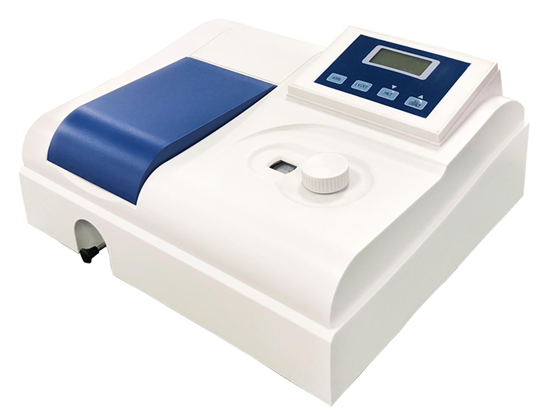

MSE PRO N Type UV-VIS Spectrophotometer 200-1000nm
Regular price
$ 2,037.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ N Type UV-VIS Spectrophotometer 200-1000nm
UV-VIS Spectrophotometer can be widely used in colleges and enterprises for general quantitative analysis and experiments based in absorbance measurements.
- High quality silicon photometric diode detector and 1200 lines/mm diffraction grating ensure the high quality accuracy and precision.
- Backlit LCD display for an easy readout.
- Automatic 0A and 100%T.
- Easy switching of transmittance, absorbance and concentration modes, just by pressing one key.
- Direct concentration read-out and concentration factor setting function.
- Large sample compartment, for 5 - 100mm path length cuvettes with optional holders.
- Easy to change the halogen lamp or deuterium lamp by the user.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features
- Sample compartment for 5-50mm cuvettes
- Precise automatic T/A changeover
- Automatic zero and full scale adjustment
- Equipped with USB port
- Direct concentration read-out and concentration factor setting function.
- Automatic light gate technology to protect photoelectric sensors
Please Contact Us for Available Models and Specifications.
Specifications
| SKU# | LS4609 |
|
Photometry |
Split Beam |
| Monochromator Type | Czerny-Turner |
| Focal Length | 160mm |
| Wavelength Range | 200-1000nm |
| Bandwidth | 2 nm |
| Wavelength Accuracy | ±2 nm |
| Wavelength Repeatability | ≤1nm |
| Wavelength Setting | Manual Turn Knob |
| Photometric Repeatability |
≤0.2% T 0.002 Abs (0-0.5A) 0.004 Abs (0.5-1A) |
| Photometric Range |
0.0-200.0% T -0.097-4.000 A 0.000-9999 C |
| Photometric Accuracy |
±0.5% T ±0.004 Abs (0-0.5A) ±0.008 Abs (0.5-1A) |
| Stray Light | ≤0.1%T(at 220nm NaI, 360nm NaNo2) |
| Grating | 1200 lines/mm |
| Noise |
100%（T）noise≤0.3%(T) 0%（T）noise≤0.2%(T) |
| Detector | Silicon Photocell |
| Power Requirements | AC220V±22V 50Hz±1Hz, 80W |
| Dimension | 580mm X 460mm X 345mm |
| Weight | 16.5 kg |
Standard Accessories
| Item | Description | Quantity |
| 1 | Operation manual | 1 pcs |
| 2 |
UV WIN8 Spectrum data processing software |
1 set |
| 3 |
Glass cuvette 1cm |
4 Pcs |
| 4 | Quartz cuvette 10mm | 2 pcs |
| 5 |
Power cable |
1 Pcs |
| 6 |
Fuse |
2 Pcs |
| 7 |
Cuvette holder 10mm |
1 Pcs |
Optical Accessories
- Cuvette holder 50, 100 mm
- Cuvettes 20, 30, 50, 100mm
