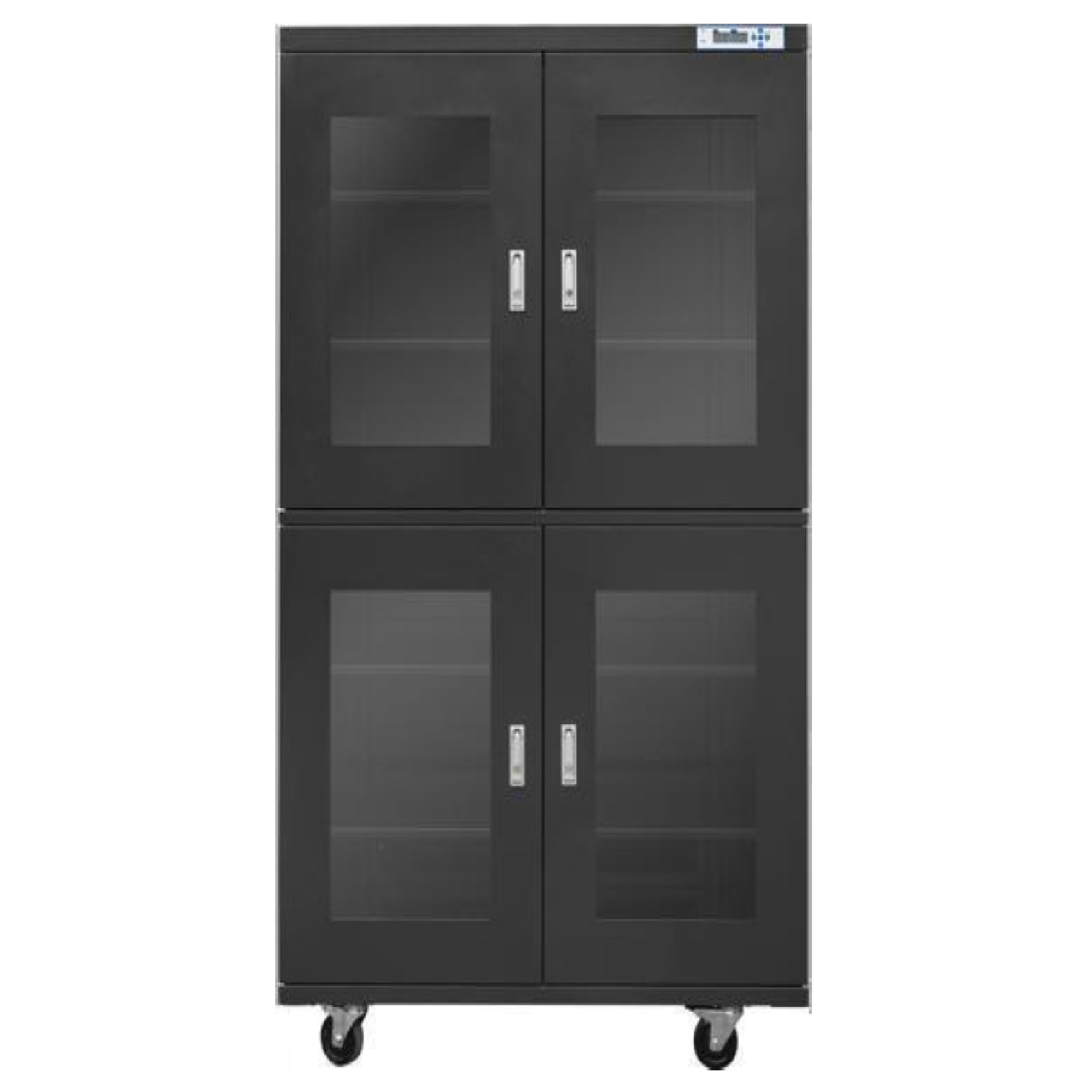

MSE PRO <5%RH 1436L ESD Safe Dry Cabinet
Introduction
The MSE PRO <5%RH 1436L ESD Safe Dry Cabinet is designed to protect moisture-sensitive electronic components from humidity-related damage. It provides automatic humidity control within <5% RH, ensuring a stable low-humidity storage environment ideal for ICs, PCBs, semiconductors, and other precision electronic materials.
Equipped with a precise LED digital controller and ESD-safe construction, the cabinet offers reliable environmental monitoring and safe handling of sensitive components. Its modular design—including the display controller, power unit, dehumidifier, shelves, and casters—allows for easy maintenance, replacement, and future upgrades.
Built with RoHS-compliant materials and durable construction, the cabinet supports a long service life of 15–20 years under proper use. Additional features include a calibration reminder function to maintain sensor accuracy and a plug-and-play design for simple operation.
Key Features
-
Automatic humidity control <5% RH
-
Large 1436L storage capacity
-
ESD-safe structure for electronics protection
-

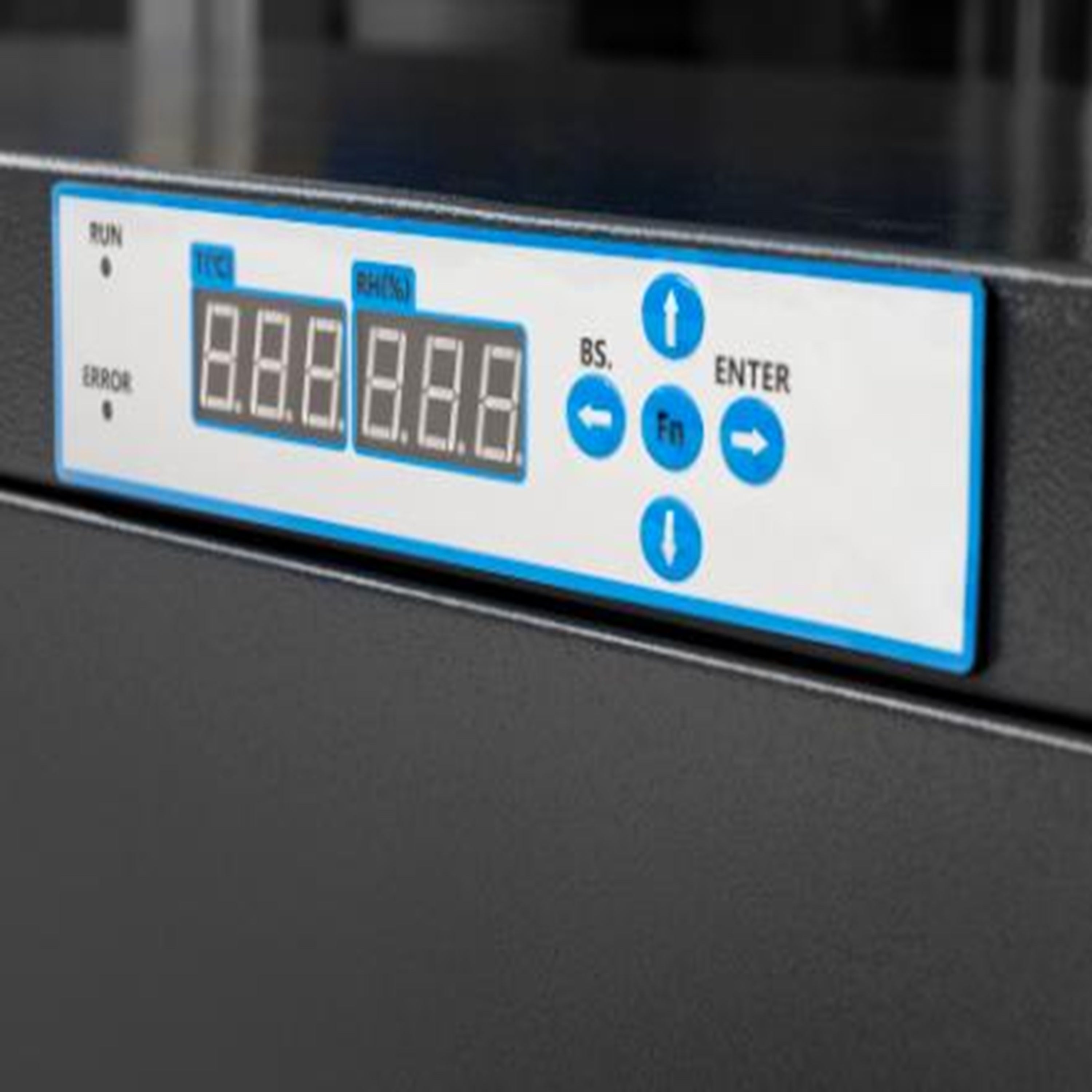

Precise LED digital humidity control
-
Modular, upgradeable design
-
Calibration reminder function
-
Plug-and-play operation
Ideal for electronics manufacturing, laboratories, and storage environments requiring reliable low-humidity protection.
Specification
| SKU |
MA0067073 |
| Interior Dimension |
1198(W) × 682(D) × 1723(H) mm |
| Exterior Dimension |
1200(W) × 710(D) × 1910(H) mm |
| Packing Dimension |
1300(W) × 800(D) × 2130(H) mm |
| Shelf Dimension |

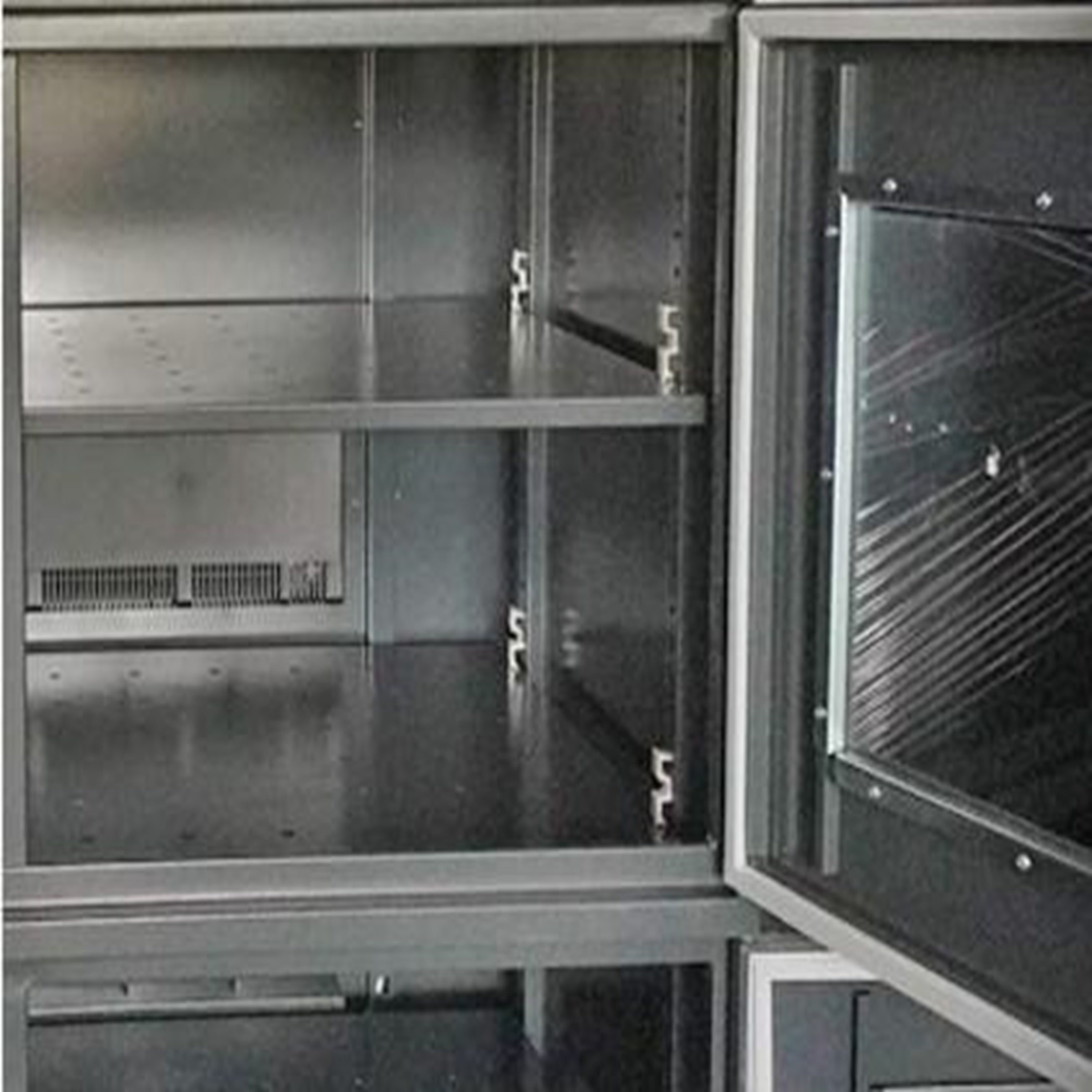

5 shelves, height adjustable, 100 kg per shelf |
| Humidity Range |
<5% RH automatic |
| Volume |
1436 L |
| Net/Gross Weight |
144 kg / 205 kg |
| Recovery Time |
Max. 30 min after 30 sec door opening (25°C, 50% RH, no load) |
| Precision |
±3% RH, ±1.0°C; Resolution: 0.1% RH, 0.1°C |
| Shelf |
5 pcs, height adjustable |
| Voltage |
110V / 220V / 230V / 240V, 50Hz / 60Hz |
Recommended Storage Humidity Guide
|
Relative Humidity
|
Suggested stored items
|
|
55%~45%RH
|
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
|
|
45%~35%RH
|
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
|
|
35%~20%RH
|
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
|
|
10%~20%RH
|
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
|
|
10%-1%RH
|
IC, BGA, copper, silver, and materials very sensitive to humidity, etc
|
MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.
The size, voltage, and design are customizable. Please contact us if you have any customization need.
The signal alarm, buzzer alarm and data logger are available with additional cost.
The product image is for reference only. MSE may upgrade the design without notice.
