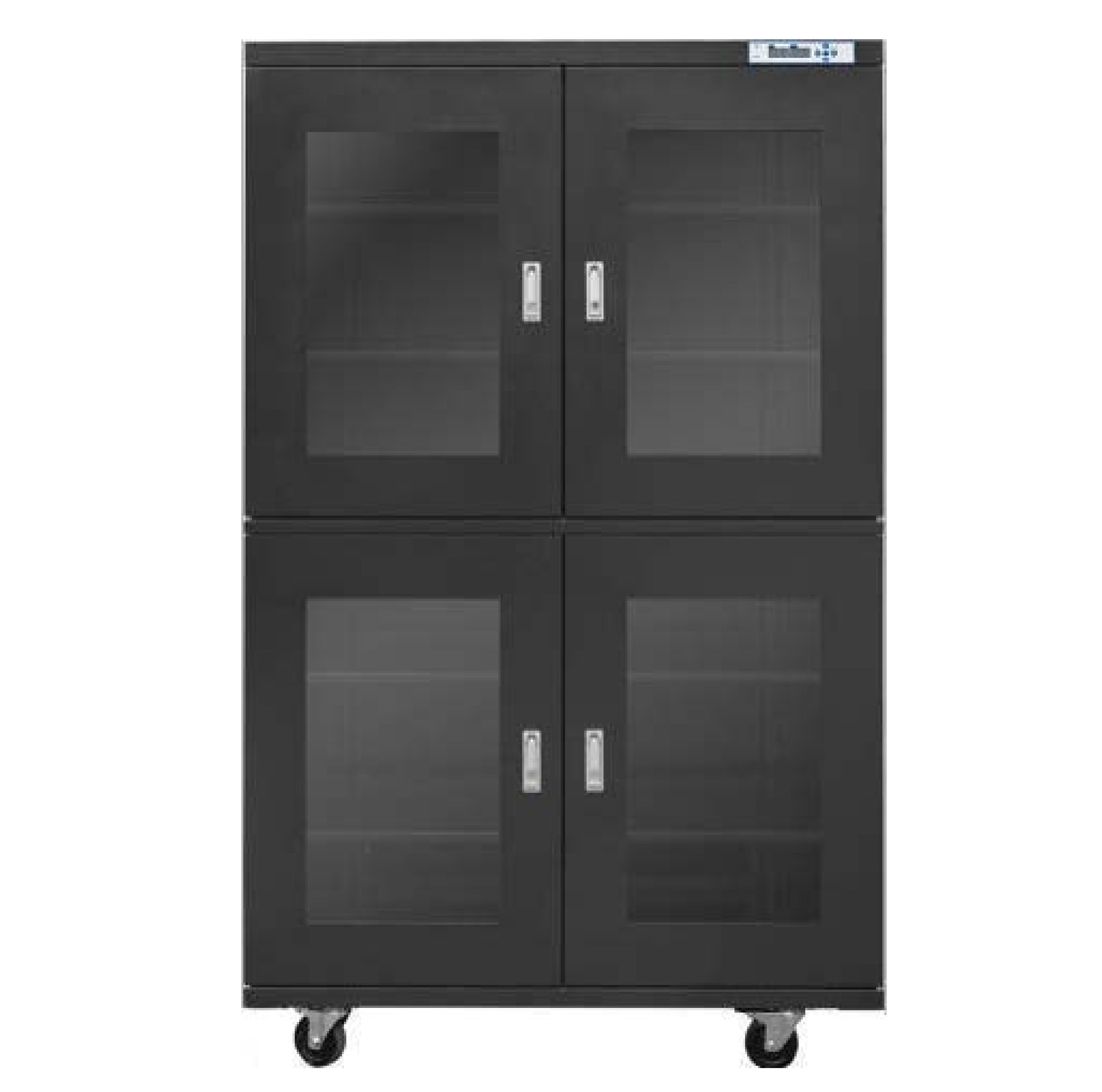

MSE PRO <3%RH 1436L ESD Safe Dry Cabinet
Introduction
The MSE PRO <3%RH 1436L ESD Safe Dry Cabinet is designed to protect moisture-sensitive electronic components from humidity-related damage. It provides automatic humidity control within <3% RH, ensuring a stable ultra-dry storage environment for ICs, PCBs, semiconductors, and other precision electronic materials.

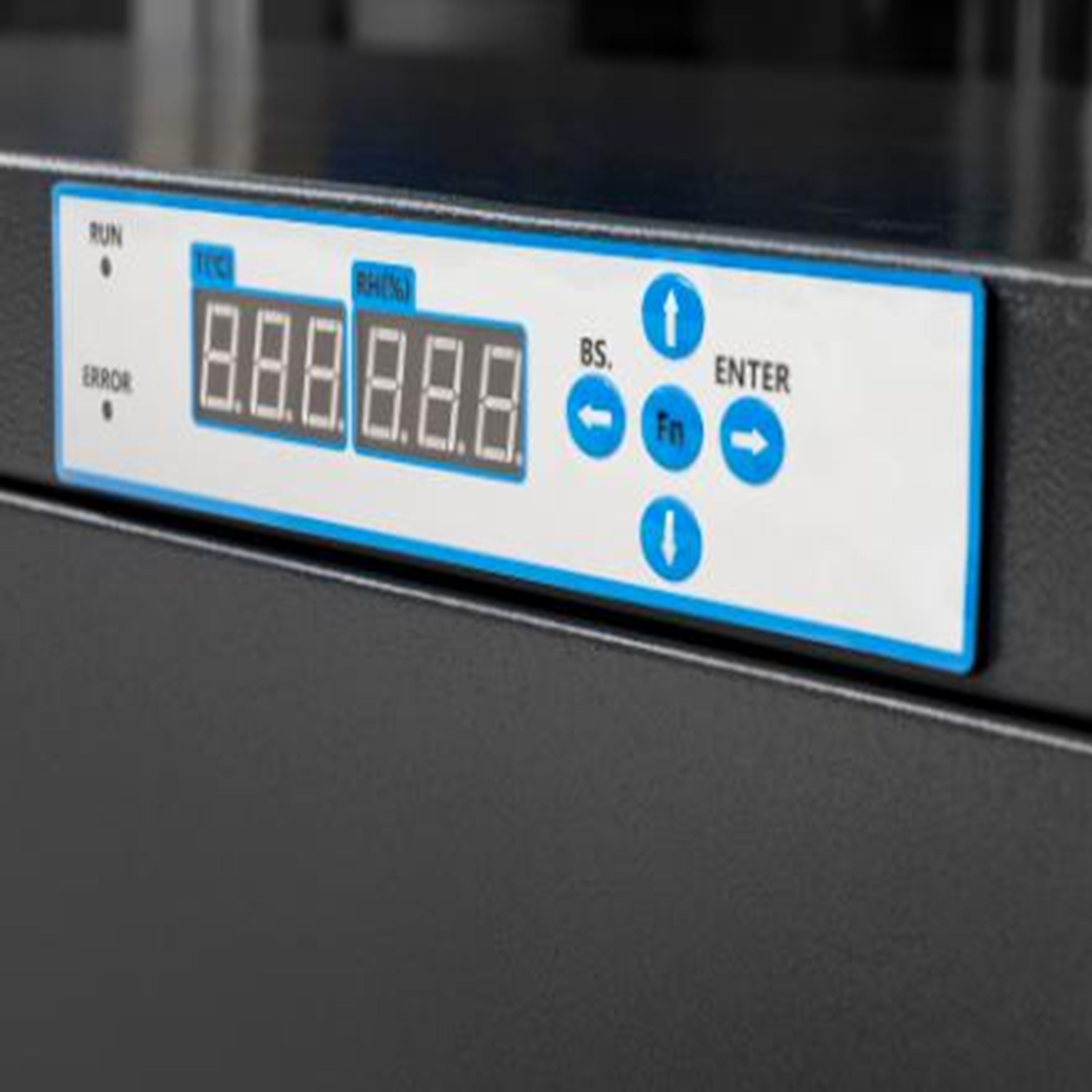

Equipped with a precise LED digital controller and ESD-safe construction, the cabinet offers reliable environmental monitoring and safe handling. Its modular design—including the controller, power unit, dehumidifier, shelves, and casters—allows easy maintenance, upgrades, and long-term serviceability.
RoHS-compliant and built for durability, the cabinet supports a long operational lifespan of 15–20 years under proper use. Additional features include a calibration reminder function to maintain accuracy and plug-and-play operation for convenient setup.
Ideal for electronics manufacturing, laboratories, and storage applications requiring consistent low-humidity protection.
Specification
| SKU | MA0067070 |
| Interior Dimension | 1198(W) × 682(D) × 1723(H) mm |
| Exterior Dimension | 1200(W) × 710(D) × 1910(H) mm |
| Packing Dimension | 1300(W) × 800(D) × 2130(H) mm |
| Shelf Dimension | Adjustable shelves, 100 kg load each |
| Humidity Range | <3% RH automatic |
| Volume | 1436 L |
| Net/Gross Weight | 144 kg / 205 kg |
| Recovery Time | Max. 30 min to reach <3% RH after 30 sec door opening (25°C, 50% RH, no load) |
| Precision | ±2.5% RH, ±1.0°C; Sensor Accuracy: ±1.5% RH; Resolution: 0.1% RH, 0.1°C |

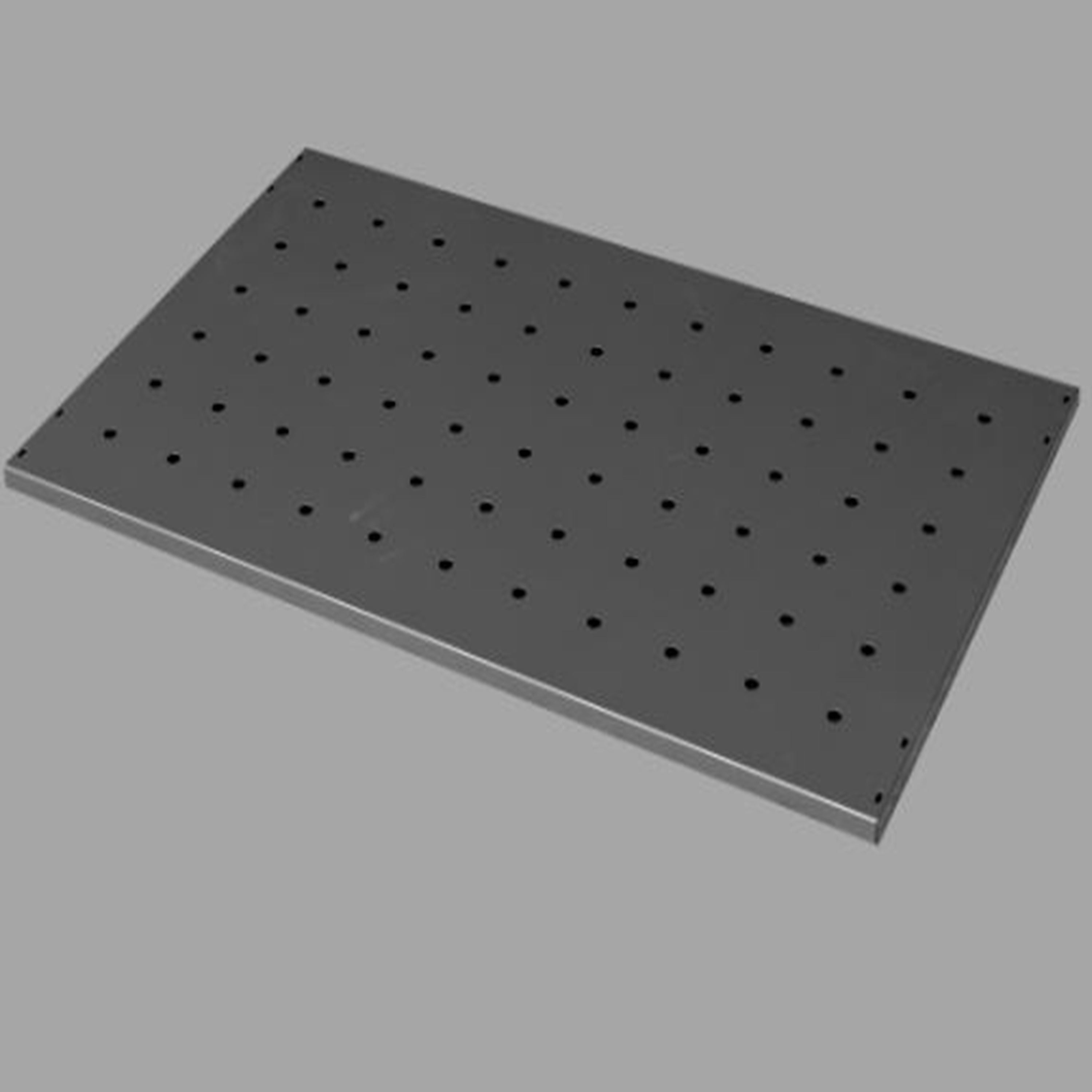

| Shelf | 5 pcs, height adjustable |
| Voltage | 110V / 60Hz |
Recommended Storage Humidity Guide
|
Relative Humidity
|
Suggested stored items
|
|
55%~45%RH
|
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
|
|
45%~35%RH
|
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
|
|
35%~20%RH
|
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
|
|
10%~20%RH
|
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
|
|
10%-1%RH
|
IC, BGA, copper, silver, and materials very sensitive to humidity, etc
|
MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.
