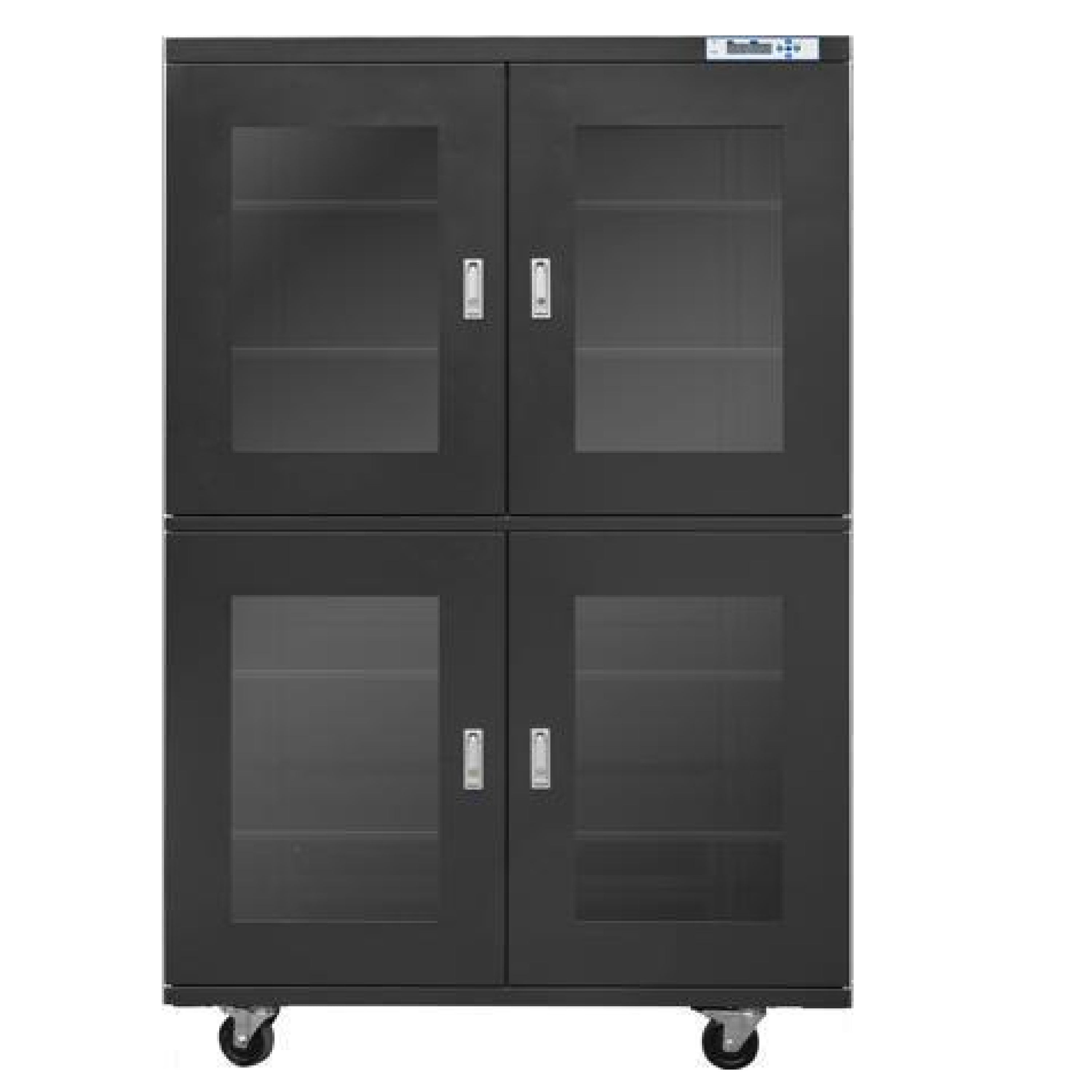

MSE PRO <10%RH 1436L ESD Safe Dry Cabinet
Introduction
The MSE PRO <10%RH 1436L ESD Safe Dry Cabinet provides reliable low-humidity storage for moisture-sensitive electronic components. Its ESD-safe construction protects semiconductors, PCBs, optical components, and other sensitive devices from moisture damage and electrostatic discharge.
A high-precision LED digital controller automatically maintains humidity levels below 10% RH, ensuring stable long-term storage conditions. The four-door, large-capacity design allows organized storage and convenient access for laboratories, electronics manufacturing, and research environments.
The cabinet features a modular design, allowing components such as the controller, power unit, dehumidification module, and shelves to be easily serviced or replaced, simplifying maintenance and extending service life.
A clear LED display provides real-time humidity monitoring, while a calibration reminder helps maintain sensor accuracy. With plug-and-play operation and durable construction, the cabinet offers dependable humidity protection for sensitive materials.
Key Features
-
Precise humidity control: <10% RH
-
1436 L large storage capacity with four-door cabinet design
-
ESD-safe construction for protecting sensitive electronic components
-

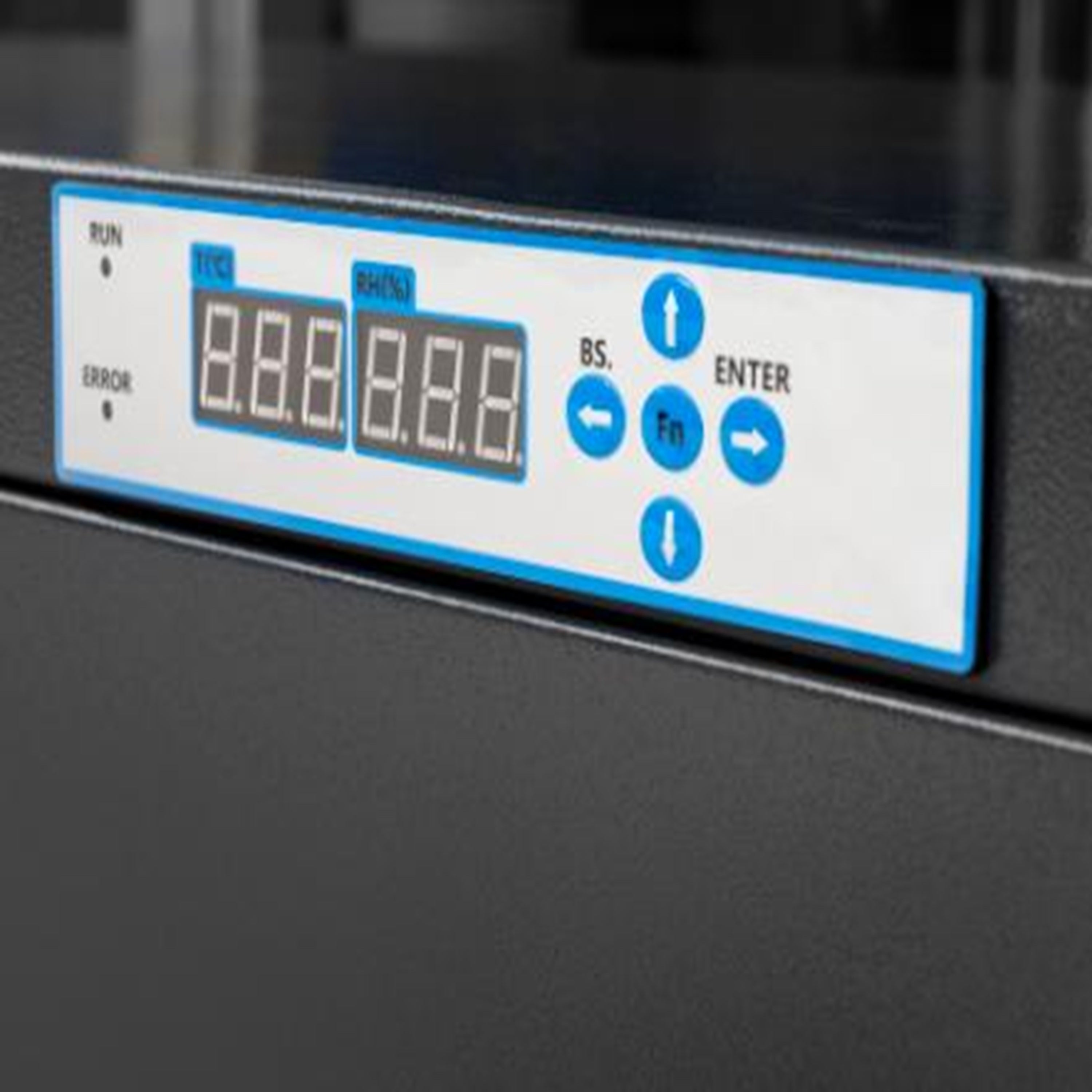

Digital LED humidity controller with real-time humidity monitoring
-
Modular internal components for easy maintenance and replacement
-
Calibration reminder function to maintain long-term accuracy
-
Plug-and-play operation with minimal setup required
-
Ideal for semiconductors, PCB storage, optics, and electronic components
Specification
| SKU | MA0067076 |
| Interior Dimension | 1198(W) x 682(D) x 1723(H) mm |
| Exterior Dimension | 1200(W) x 710(D) x 1910(H) mm |
| Packing Dimension | 1300(W) x 800(D) x 2130(H) mm |
| Shelf Dimension | Height adjustable |
| Humidity Range | <10% RH (Automatic) |
| Net/Gross Weight | 144 kg / 205 kg |
| Recovery Time | ≤30 minutes after door closure (Ambient 25°C, 60% RH, no load) |
| Precision | ±3% RH, ±1.0°C (Resolution: 0.1% RH, 0.1°C) |

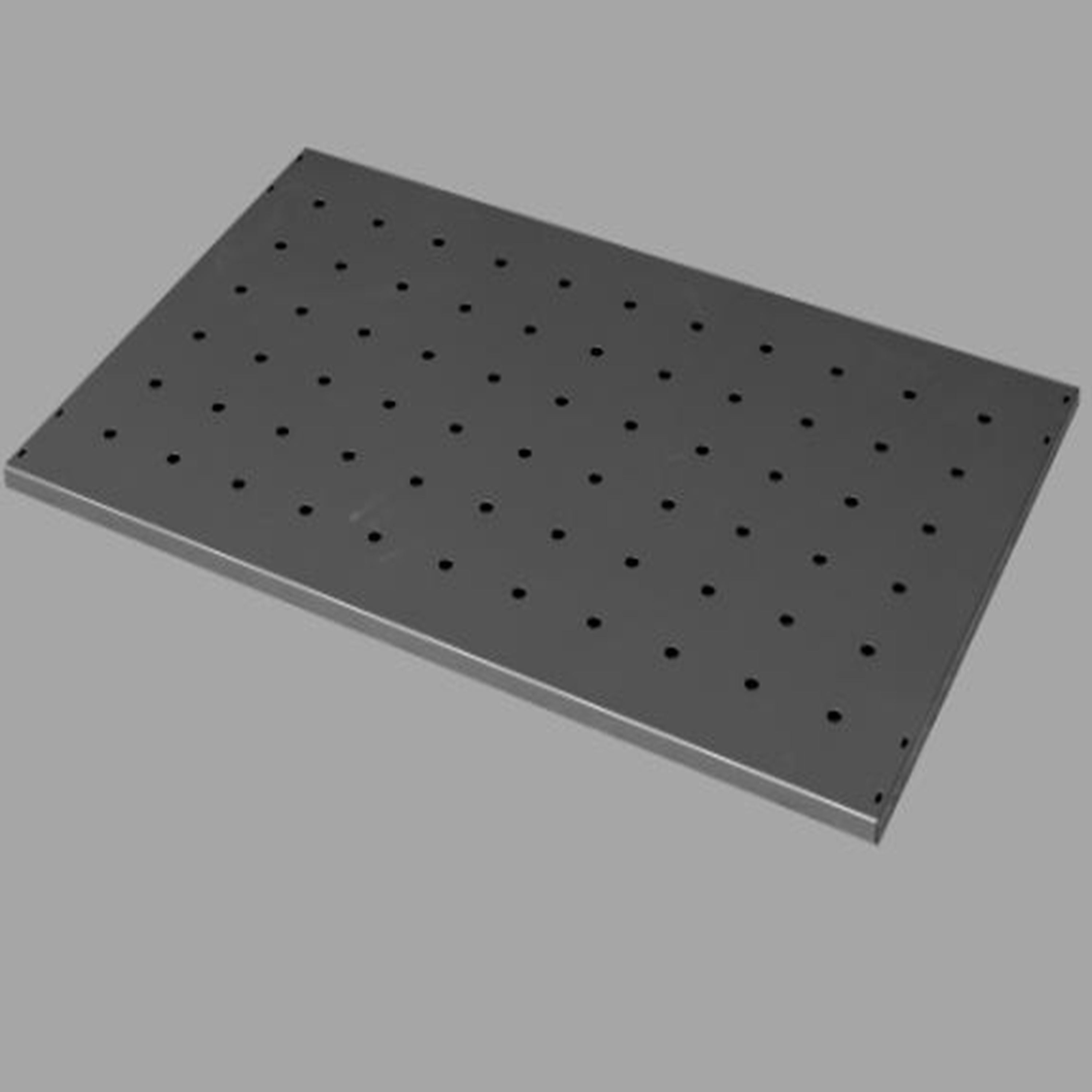

| Shelf | 5 pcs |
| Voltage | 110V/60Hz |
Recommended Storage Humidity Guide
|
Relative Humidity
|
Suggested stored items
|
|
55%~45%RH
|
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
|
|
45%~35%RH
|
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
|
|
35%~20%RH
|
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
|
|
10%~20%RH
|
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
|
|
10%-1%RH
|
IC, BGA, copper, silver, and materials very sensitive to humidity, etc
|
MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.
