MSE PRO 10%-20%RH 1436L ESD Safe Dry Cabinet
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO 10%-20%RH 1436L ESD Safe Dry Cabinet
Introduction
The MSE PRO 10%-20%RH 1436L ESD Safe Dry Cabinet provides controlled low-humidity storage for moisture-sensitive electronic components. With adjustable 10–20% RH humidity control and ESD-safe construction, the cabinet helps protect semiconductors, PCBs, optical components, and laboratory electronics from moisture and static damage.
The large four-door 1436 L design offers organized storage and easy access for electronics manufacturing, laboratories, and research environments. A digital LED controller provides precise humidity control and real-time monitoring, while the modular design allows easy replacement of key components for simplified maintenance and long service life.
Key Features
-
Adjustable humidity control: 10–20% RH
-

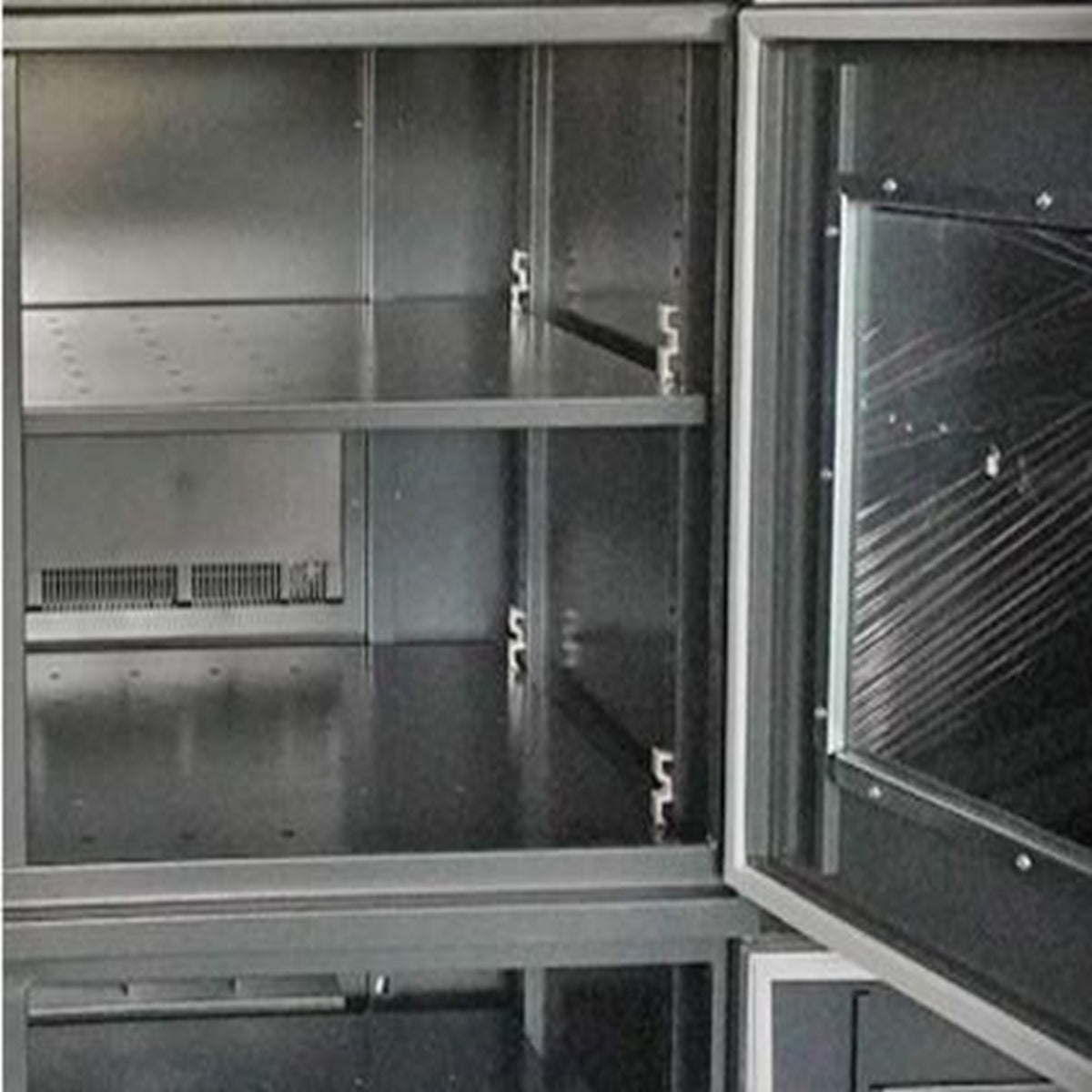

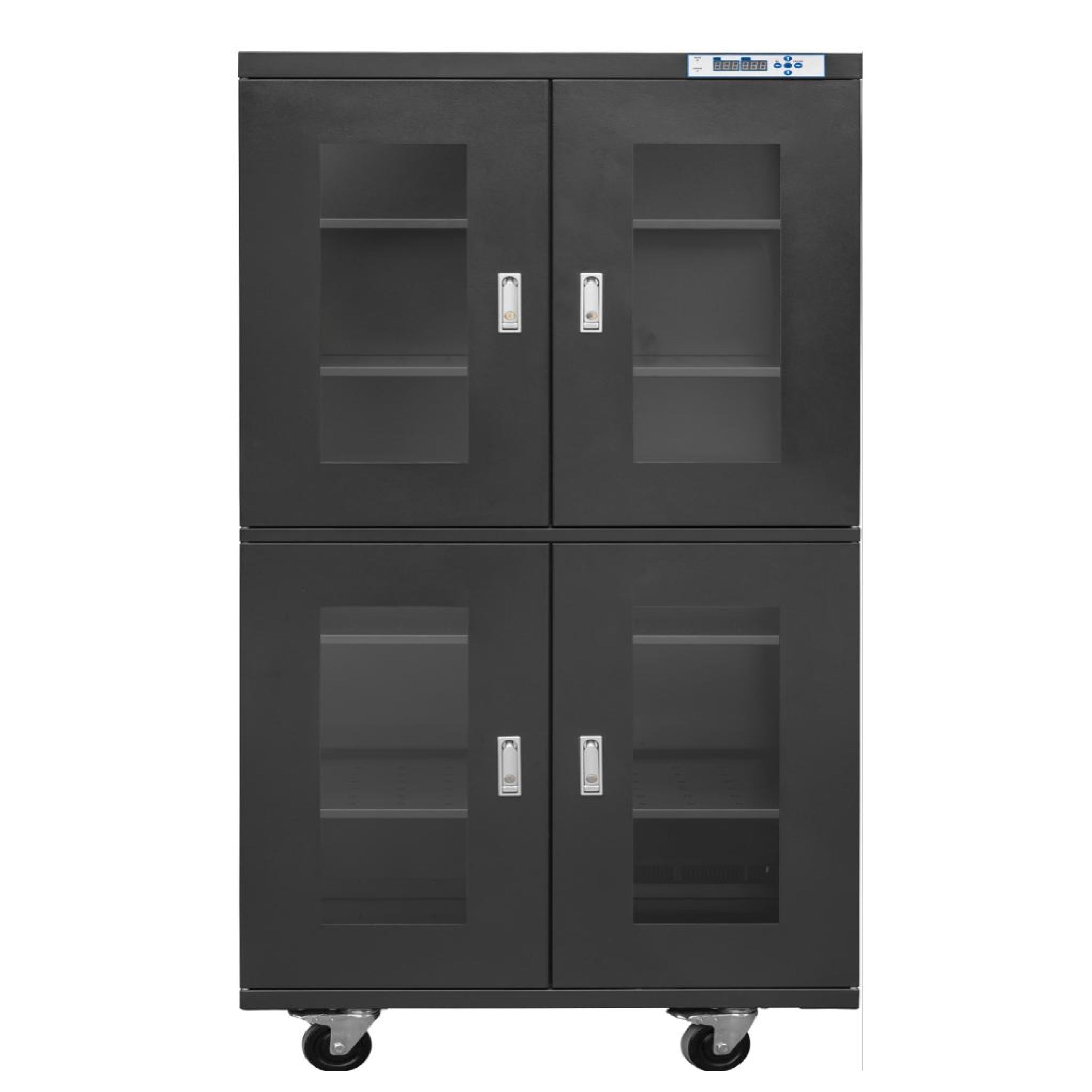

1436 L large storage capacity with four-door cabinet design
-

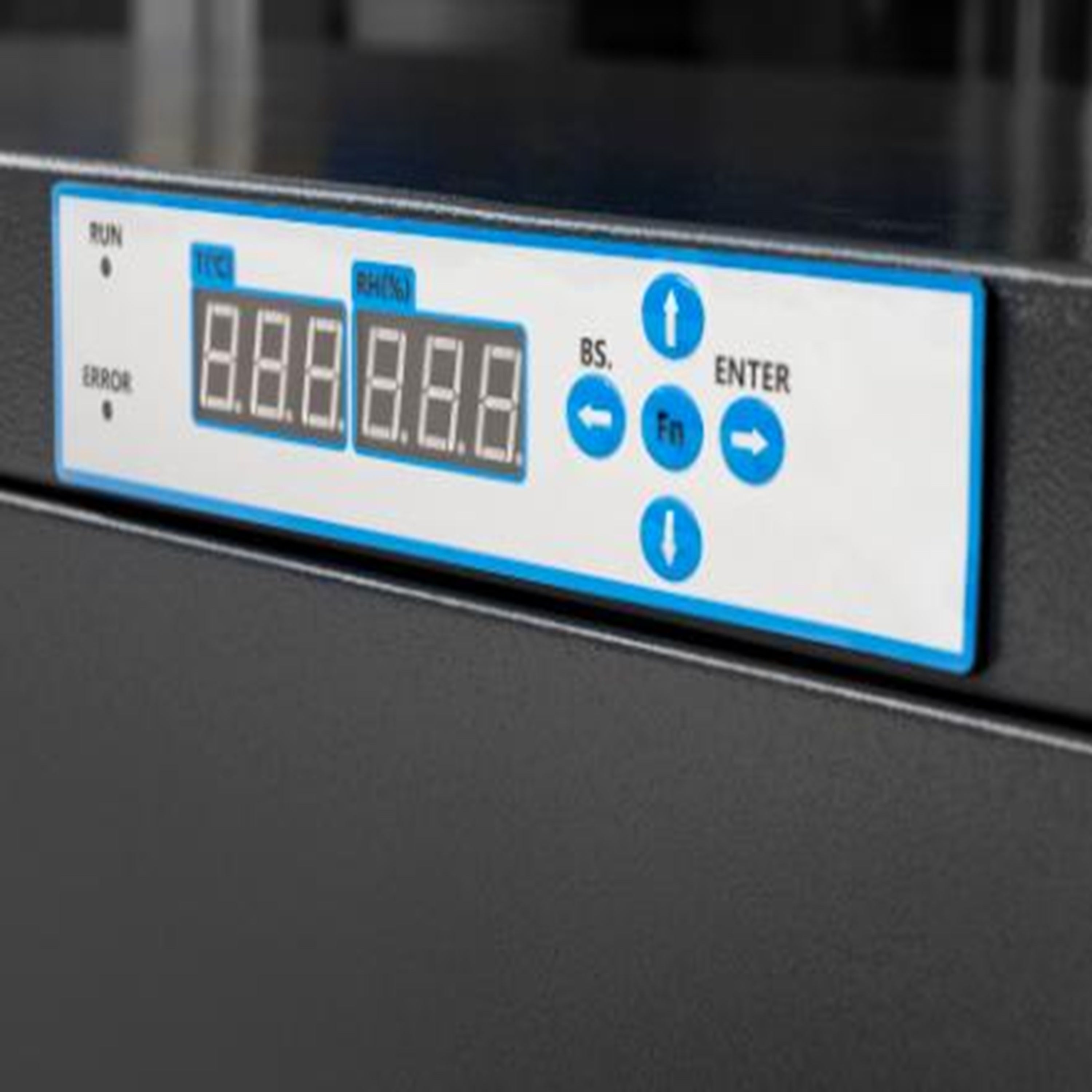

Digital LED humidity controller with real-time monitoring
-
ESD-safe construction for sensitive electronic components
-
Modular design for easy maintenance and component replacement
-
Calibration reminder function for long-term measurement accuracy
-
Plug-and-play operation with minimal setup
-
Ideal for semiconductors, PCB storage, optics, and electronic components
Specification
| SKU | MA0067079 |
| Interior Dimension | 1198(W) × 682(D) × 1723(H) mm |
| Exterior Dimension | 1200(W) × 710(D) × 1910(H) mm |
| Packing Dimension | 1300(W) × 800(D) × 2130(H) mm |
| Shelf Dimension | N/A |
| Humidity Range | 10–20% RH adjustable |
| Net/Gross Weight | 144 kg / 205 kg |
| Recovery Time | ≤30 min after door open 30s (25°C, 60%RH, no load) |
| Precision | ±3% RH |

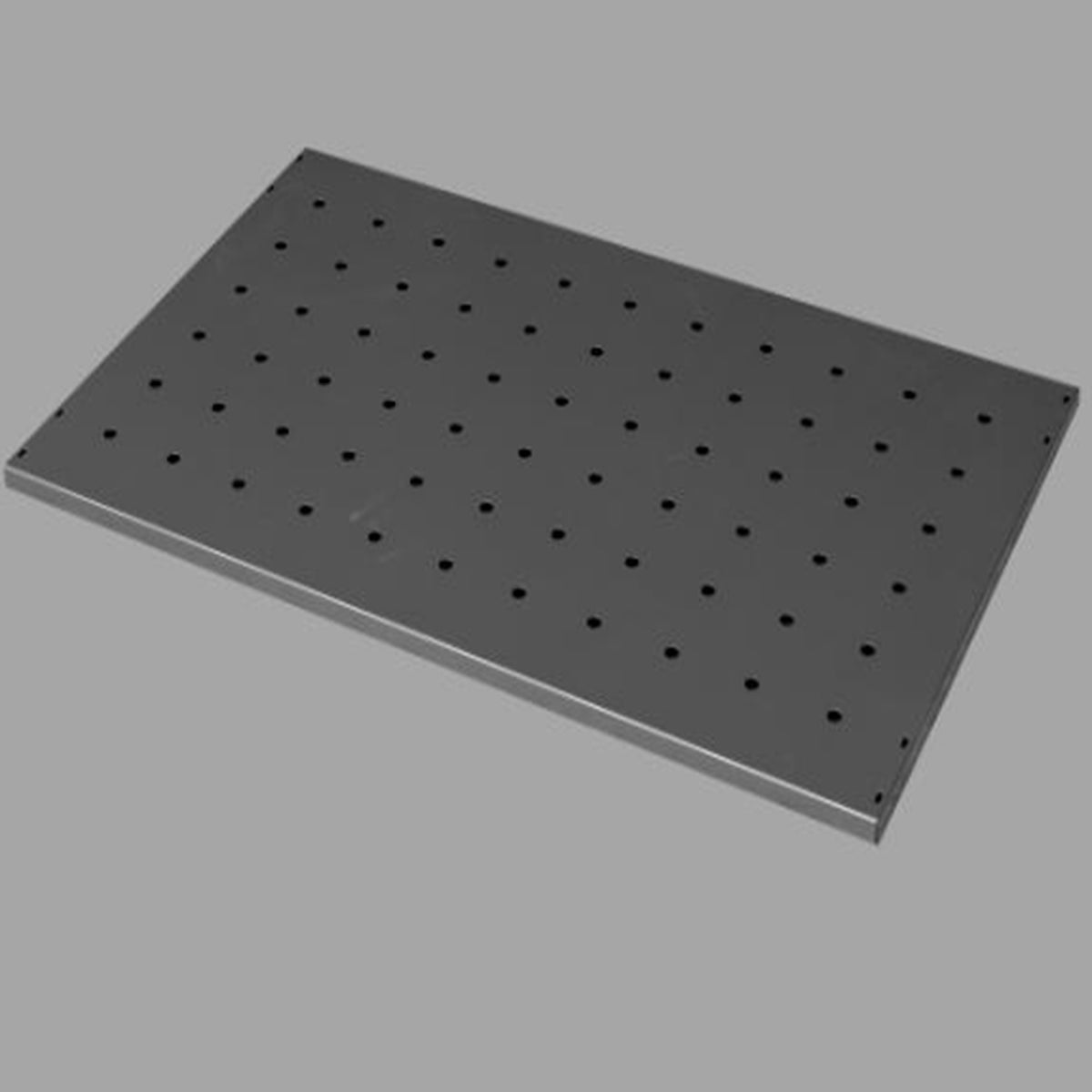

| Shelf | 5 pcs, adjustable |
| Voltage | 110V 60Hz |
Recommended Storage Humidity Guide
|
Relative Humidity
|
Suggested stored items
|
|
55%~45%RH
|
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
|
|
45%~35%RH
|
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
|
|
35%~20%RH
|
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
|
|
10%~20%RH
|
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
|
|
10%-1%RH
|
IC, BGA, copper, silver, and materials very sensitive to humidity, etc
|
MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.
