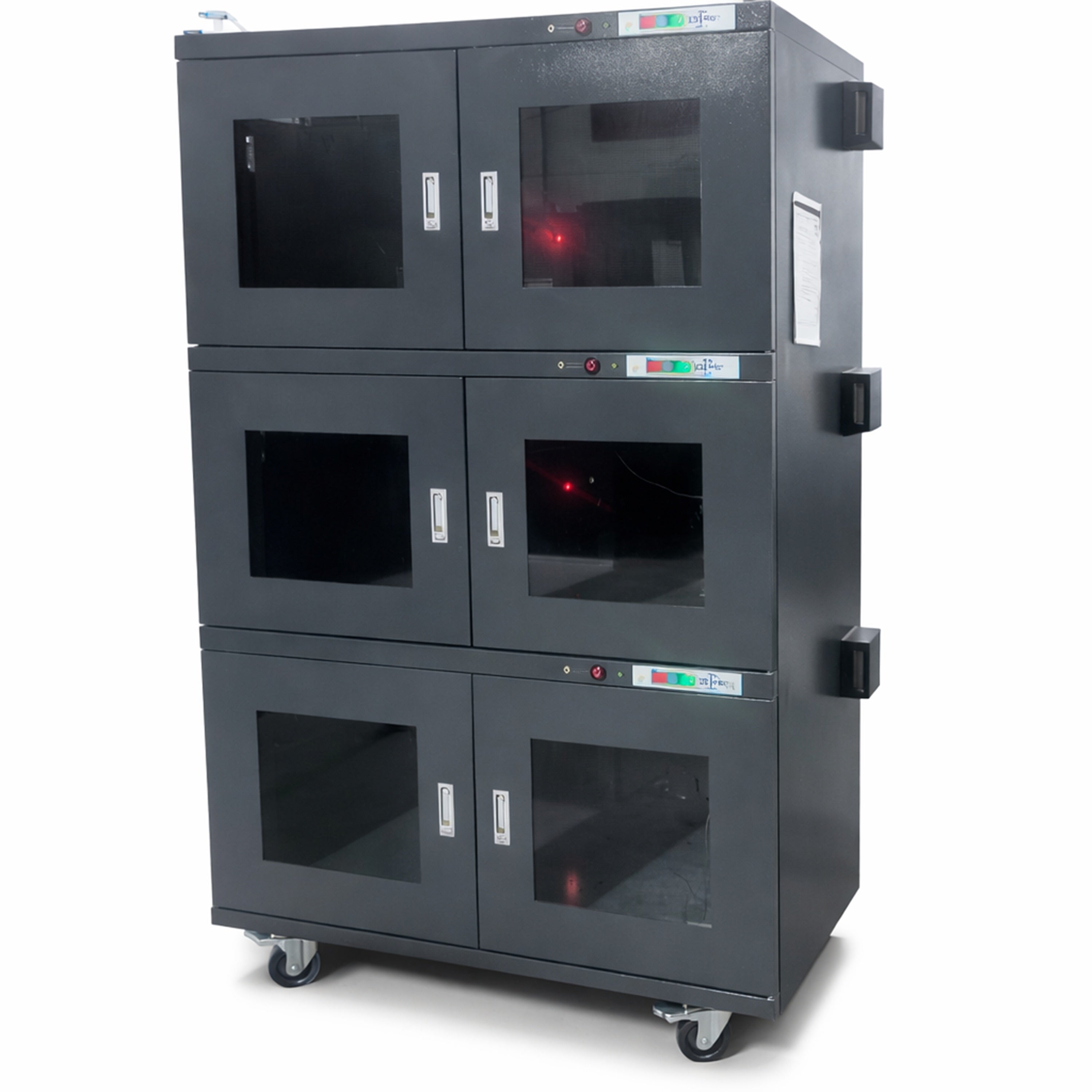

The MSE PRO 1436L ESD Safe Nitrogen Cabinet is designed for reliable storage of moisture-sensitive electronic components and materials. With an adjustable humidity range of 1–60% RH, the cabinet maintains a stable low-humidity environment using a precision digital controller. Each compartment features independent control, allowing flexible humidity management for different storage requirements. The ESD-safe structure and modular nitrogen system provide long-term protection against moisture damage, oxidation, and electrostatic discharge.
Key Features:
-
Wide Humidity Control: Adjustable 1–60% RH for versatile storage conditions
-

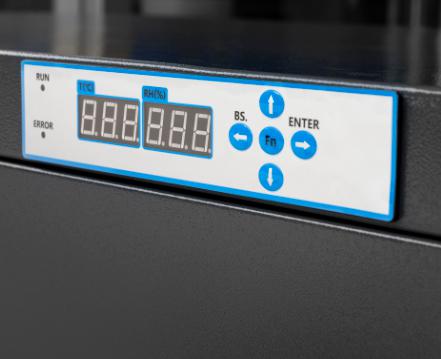

Independent Control System: Separate LED digital controllers for each cabinet section
-
Large Capacity: 1436 L storage volume with multi-chamber design
-
ESD Safe Construction: Protects sensitive electronic components from electrostatic discharge
-

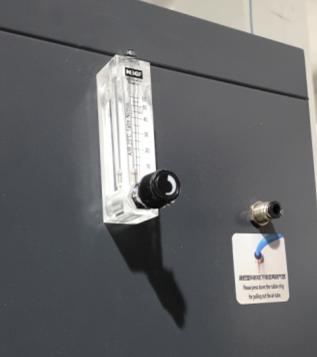

Nitrogen-Assisted Drying: Maintains ultra-stable low-humidity storage environment
-

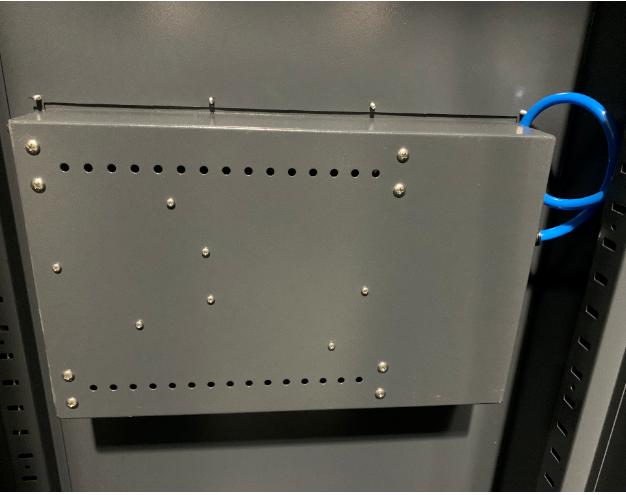

Modular Design: Replaceable control, nitrogen, and power modules for easy maintenance
-
Calibration Reminder: Built-in sensor drift reminder for long-term accuracy
-
Plug-and-Play Operation: Easy installation with minimal setup required
Specification
| SKU | MA0067153 |
| Interior Dimension | W1153 × D600 × H1770 mm |
| Exterior Dimension | W1200 × D710 × H1910 mm |
| Packing Dimension | W1300 × D800 × H2100 mm |
| Shelf Dimension | 1153 × 560 × 19 mm × 3 pcs |
| Humidity Range | 1–60% RH adjustable |
| Volume | 1436 L |
| Net/Gross Weight | 144 kg / 205 kg |
| Recovery Time | ~10 minutes |
| Precision | ±3.0% RH, ±0.5°C (Resolution: 0.1% RH, 0.1°C) |
| Shelf | 3 pcs, height adjustable |
| Voltage | 110V 60Hz |
Recommended Storage Humidity Guide
|
Relative Humidity
|
Suggested stored items
|
|
55%~45%RH
|
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
|
|
45%~35%RH
|
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
|
|
35%~20%RH
|
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
|
|
10%~20%RH
|
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
|
|
10%-1%RH
|
IC, BGA, copper, silver, and materials very sensitive to humidity, etc
|
MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.
