Microwave Vector Network Analyzer / Vector Network (VNA) Analytical Service

Overview

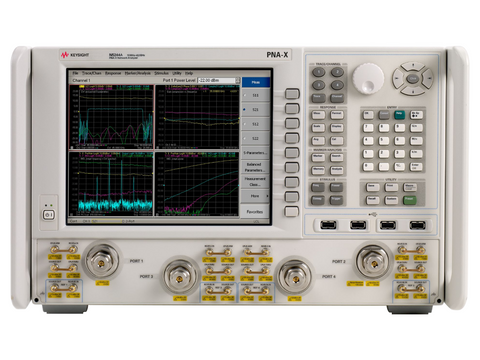

A Microwave Vector Network Analyzer (VNA) is a precision instrument used to measure the transmission and reflection properties of RF and microwave devices across a wide frequency range. It analyzes S-parameters (e.g., S11, S21) to provide detailed amplitude and phase information, enabling accurate characterization of components like antennas, filters, amplifiers, and cables. VNAs are essential in industries such as telecommunications, aerospace, and electronics for tasks like impedance matching, device performance evaluation, and signal integrity analysis, making them indispensable tools in RF and microwave engineering.

A vector network analyzer can test electromagnetic shielding and absorption performance. Electromagnetic shielding is primarily calculated using S-parameters, while absorption efficiency is calculated using electromagnetic parameters.

Sample Requirements

Powder Sample Testing:

• Coaxial method: Requires at least 200 mg of powder sample (paraffin is not needed).

Bulk Sample Testing (Coaxial Method):

• Requires a coaxial ring with dimensions of outer diameter 7 mm, inner diameter 3.04 mm, and thickness 2 mm.

Bulk Sample Testing (Waveguide Method):

• Different frequency ranges require corresponding sample dimensions:
  • 1.13–1.73 GHz: 82.4 × 164.8 × (10.0–35.0) mm
  • 1.72–2.61 GHz: 54.46 × 108.92 × (8.0–12.0) mm
  • 2.60–3.95 GHz: 33.89 × 71.84 × (8.0–12.0) mm
  • 3.94–5.99 GHz: 22.0 × 47.25 × (8.0–12.0) mm
  • 5.38–8.17 GHz: 15.75 × 34.70 × (2.0–6.0) mm
  • 8.2–12.4 GHz: 22.9 × 10.2 × (2.0–6.0) mm
  • 12.4–18.0 GHz: 15.9 × 8.03 × (2.0–4.0) mm
  • 18.0–26.5 GHz: 10.95 × 4.5 × (2.0–4.0) mm
  • 26.0–40.0 GHz: 7.15 × 3.60 × (2.0–4.0) mm

Bulk Sample Testing (Arch Method):

• Requires samples with one of the following dimensions: 180 × 180 mm, 300 × 300 mm, or 600 × 600 mm. This method directly measures absorption efficiency but cannot measure electromagnetic parameters.

SPDR Testing for Bulk Samples:

• Samples must have uniform thickness and a dielectric constant > 20. Dimensions required (length/width or diameter, thickness):
  • 1 GHz: 110–190 mm, 3 mm
  • 2.5 GHz: 60–120 mm, 3 mm
  • 3 GHz: 50–120 mm, 3 mm
  • 5 GHz: 50–100 mm, 1.6 mm
  • 10 GHz: 30–100 mm, 1 mm
  • 15 GHz: 20–100 mm, 0.5 mm
  • 20 GHz: 20–40 mm, 0.5 mm
  • 28 GHz: 20–40 mm, 0.5 mm
  • 39 GHz: 20–40 mm, 0.5 mm

Quasi-Optical Cavity Testing:

• Samples must have uniform thickness and a dielectric constant < 20, with dimensions: length > 40 mm, width > 40 mm, and thickness < 1 mm.

Note: The listed price is for reference only. Please request a quote for the final pricing.

Analytical Service Minimum order requirement: $250 per order. A $200 handling fee will be applied if order is below $250.

Please contact sales@msesupplies.com for additional information and instructions on our Analytical Services program. Confirmation of the sample(s) requirements, SDS sheets and additional information is needed prior to processing the Analytical Service order.

***Please do not ship any samples without authorization from MSE Supplies***
