MSE PRO Fully Automatic Metallographic Precision Cutting Machine with 150 mm Capacity
Introduction

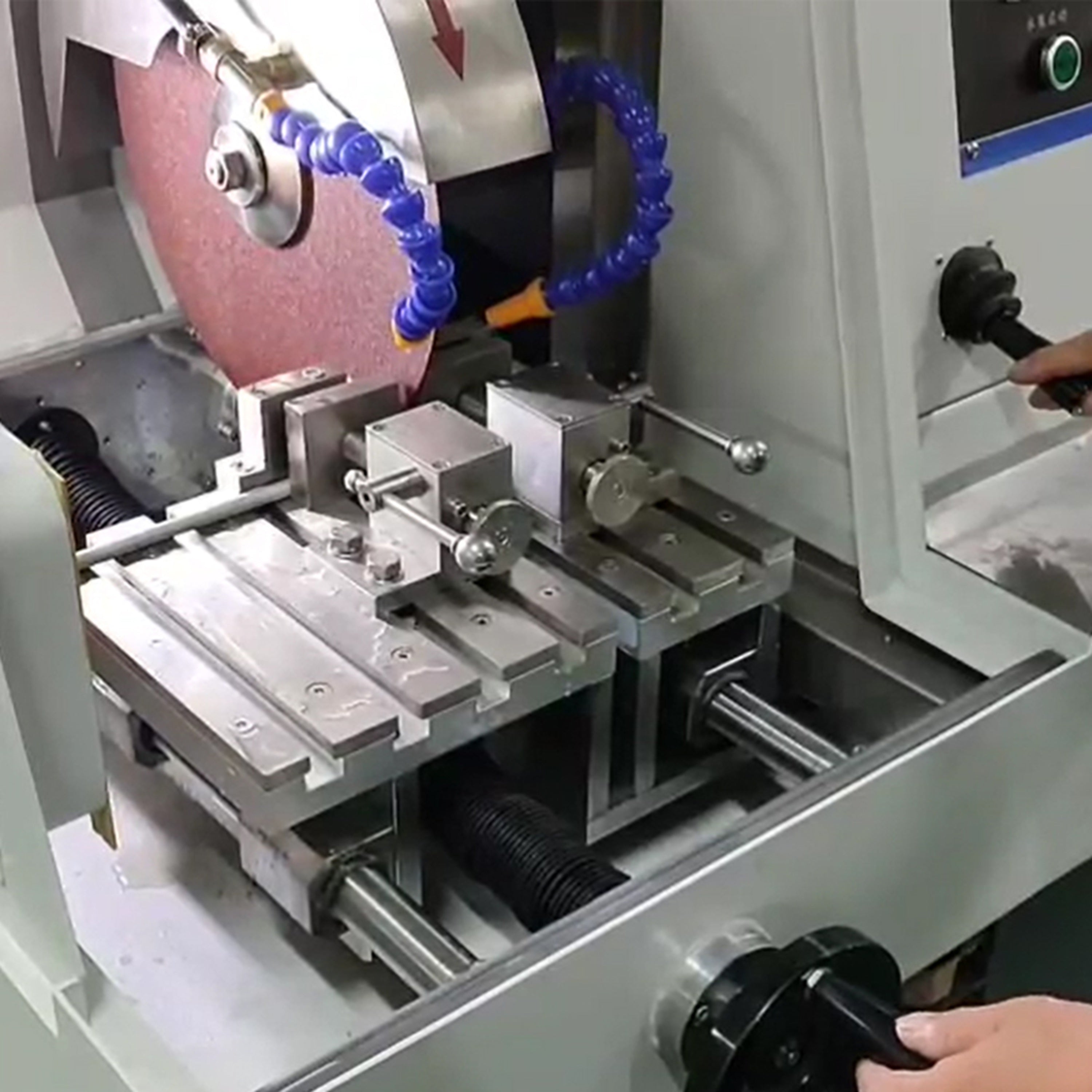

The MSE PRO Fully Automatic Metallographic Precision Cutting Machine is a high-performance system designed for precise and efficient sectioning of large and complex samples. Featuring advanced PLC-based automation, closed-loop control, and multi-axis movement, it delivers highly accurate, repeatable cutting results with minimal operator intervention.
Engineered for modern laboratories, the system integrates intelligent parameter storage, real-time monitoring, and a high-efficiency cooling system, making it ideal for metallographic analysis, materials research, and industrial quality control.
Key Features
- Fully Automatic Operation – PLC control with touchscreen interface for programmable cutting workflows
- Multi-Axis Precision Control – Y-axis automatic feed and Z-axis controlled cutting for flexible cutting modes
- Multiple Cutting Modes – Supports continuous, step, and reciprocating cutting operations
- High Precision Positioning – Encoder-based control ensures accurate movement and repeatability
- Parameter Storage System – Save up to 200 cutting programs for different materials and applications
- Variable Speed Control – Frequency-controlled motor (500–3000 rpm) for optimized cutting performance
- Smart Detection System – Automatically detects cutting completion and retracts blade
- Laser Positioning – Enables precise sample alignment before cutting
- Advanced Cooling System – Multi-stage filtration with magnetic separation and 80 L coolant tank
- Enhanced Safety Design – Separate cutting and electrical chambers for improved reliability and safety
Specification
| Parameter | Specification |
| Max. Cutting Diameter | 150 mm |
| Max. Cutting Length | 300 mm |
| Blade Size | 400 × 3 × 32 mm |
| Motor Power | 4 kW |
| Speed Range | 500 – 3000 rpm |
| Feed Rate | 0.01 – 3 mm/s (≤0.2 mm/s for hard or viscous materials) |
| Y-Axis Feed | Automatic |
| Z-Axis Feed | Manual |
| Max. Travel | Z-axis: 100 mm; Y-axis: 300 mm |
| Control System | PLC + Touchscreen |
| Cutting Modes | Multiple modes (automatic, step, reciprocating, manual) |
| Positioning | Laser positioning |
| Clamping System | Quick push-pull fixture (jaw height 60 mm) |
| Cooling System | Multi-stage filtration with magnetic separation, 4 cooling lines + 1 spray gun |
| Coolant Tank Volume | 80 L |
| Lighting | LED |
| Power Supply | 220 V, 60 Hz |
| Machine Dimensions (W × D × H) | 1050 × 1150 × 1800 mm |
| Weight | 200 kg |
