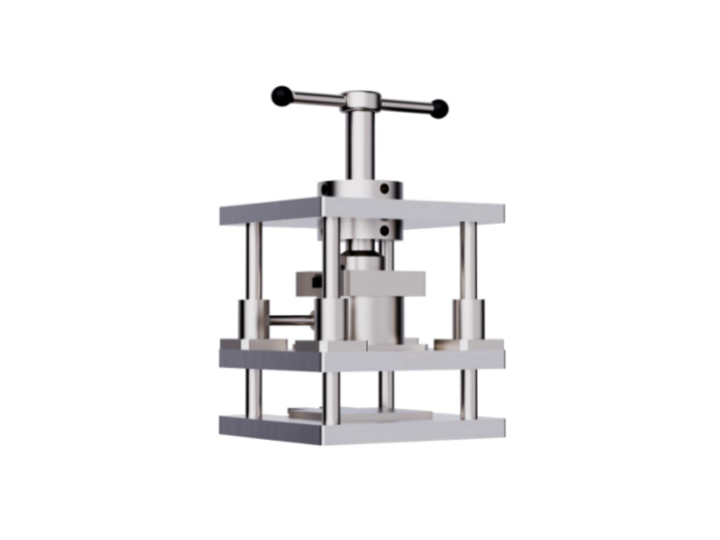

MSE PRO Cell Clamps for Fluid and Solid-State Batteries with Clamp Size(L*W*H) 300x200x322 mm
Regular price
$ 4,750.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO Cell Clamps for Fluid and Solid-State Batteries with Clamp Size(L*W*H) 300x200x322 mm
Description:
This clamp is designed for detecting the swelling force of liquid & solid-state pouch
cells under constant gap during cycling.
Together with an additional Force Acquisition Console and Cyclers, it can automatically
collect the swelling force during cycling
Specifications:
| Clamp Material | Stainless Steel |
| Clamp Size(L*W*H) | 300x200x322 mm |
| Applicable Cells & Size | Pouch Cells with a max size of 240x200x100 mm |
| Max Manual Force | Up to 1000 Kg 0.2 MPa |
| Force Sensor Range | 3000 Kg |
| Force Sensor Accuracy | 0.3% F.S |
| Clamp Weight | 35 kg |
| Working Temp | -10~60℃ |
Note: Force Acquisition Console and Cyclers are not included.
Force Acquisition Console purchase link:
MSE PRO Additional Force Acquisition Console for Cell Clamps for Fluid– MSE Supplies LLC
