MSE PRO 1800°C Box Furnace B 18/18
Couldn't load pickup availability
Customizable Product
Together with our experts we will create a product designed for your needs
Still have questions? Ask our experts!

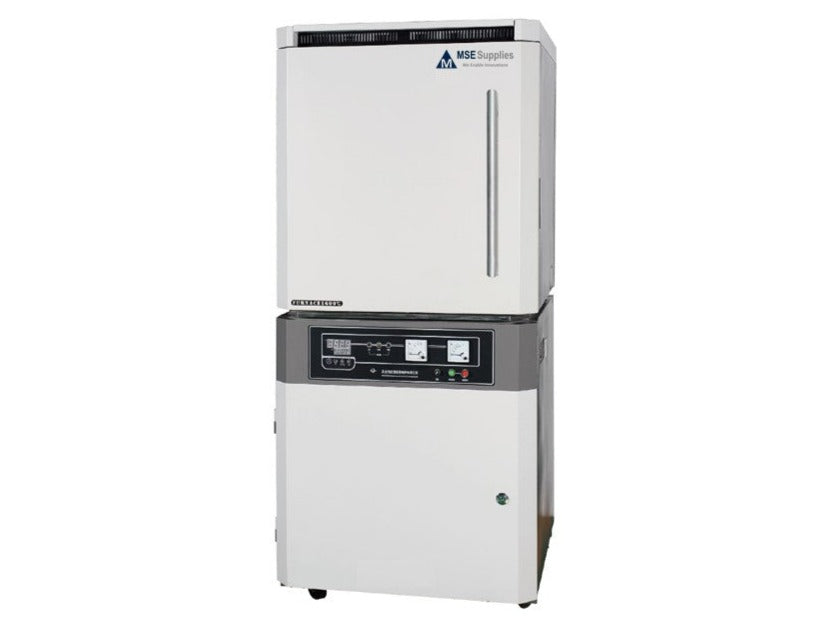

MSE Supplies offers a Box Furnace B 18/18 maximum working temperature of 1750°C and capacity of 18L. With its convincing price/performance ratio and the fast heat-up rates, this box furnace is mainly used for sintering and oxidation experiments of ceramic, composite, metal, nano, functional, thermoelectric and crystal materials, etc.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
- High current protection guarantees long service life
- High heating rate
- Uniform temperature distribution
- Easy-to-operate
- With PID adjustment, fuzzy control, and self-tuning functions
- Programmable controller with 50 segments
- Over-temperature protection and electric shock protection
- The furnace will be powered off automatically if the door is open
- Corrosion Resistance
- Stainless steel embossed board
Technical Data:
| Model | B 18/18 |
| SKU# |
Regular Control Panel (MA0474) Touch Screen Control Panel (MA0475) |
| Power | 18kW |
| Voltage |
380V Single Phase Plug is not included for safety concern |
| Capacity |
18L |
| Maximum Temperature | 1800℃ |
| (Recommended) Heating Rate |
0℃-1200℃≤10℃/min; 1200℃-1400℃≤5℃/min; 1400℃-1800℃≤2℃/min |
| Temperature Control Accuracy | ±1℃ |
| Heating element | 1900℃ Silicon molybdenum bar |
| Temperature Control | Programmable temperature control system with 30 segments |
| Chamber Dimension | 300*300*285mm |
| Chamber Dimension Without Heating Element | 300*250*250mm |
| Outer Dimension | 764*749*1584mm |
| Weight | 350kg |
| Warranty | One-year limited warranty with lifetime support. Not responsible for damage caused by improper use. |
We offer Tube and Box Furnaces with different sizes and Tmax . For more information, please contact us.
