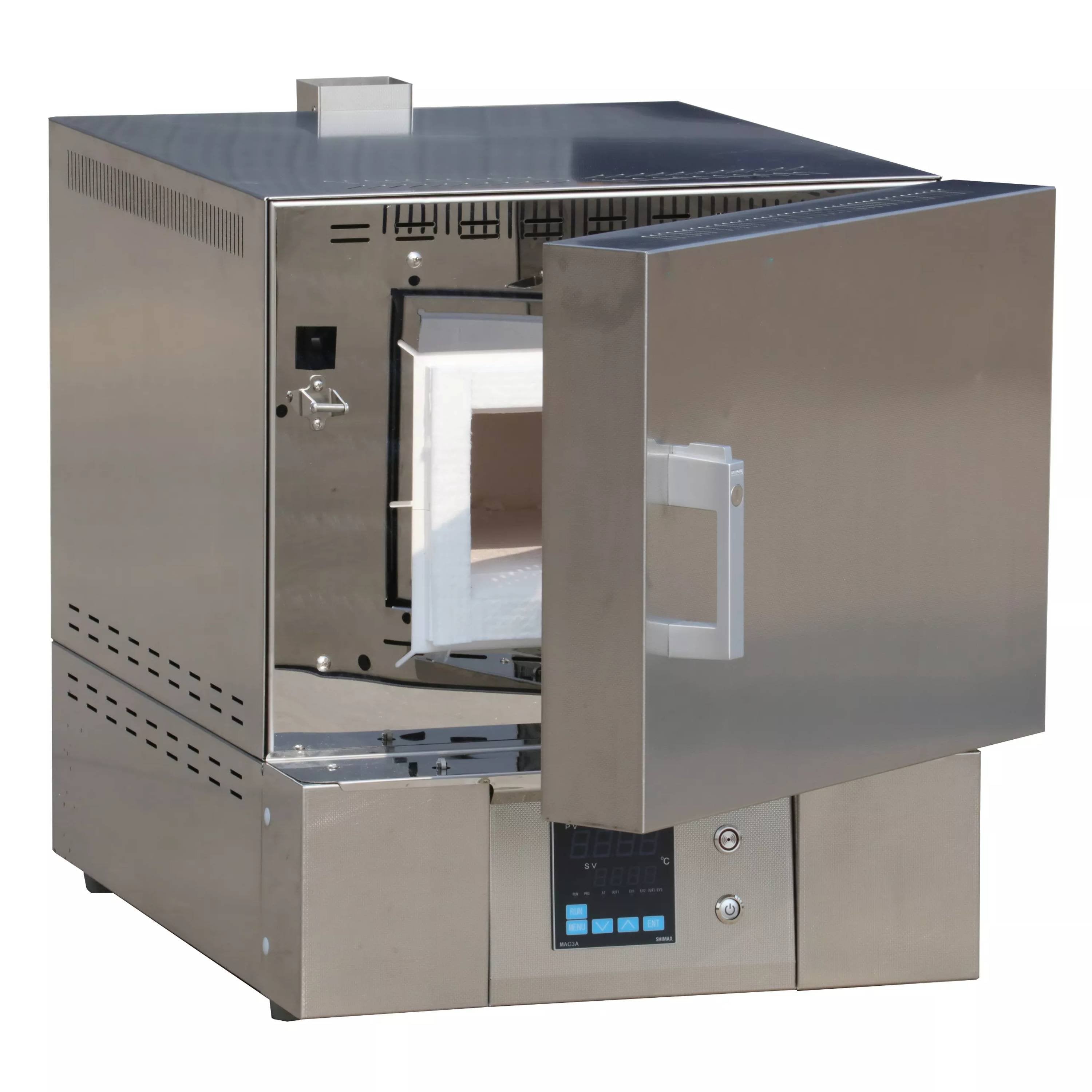

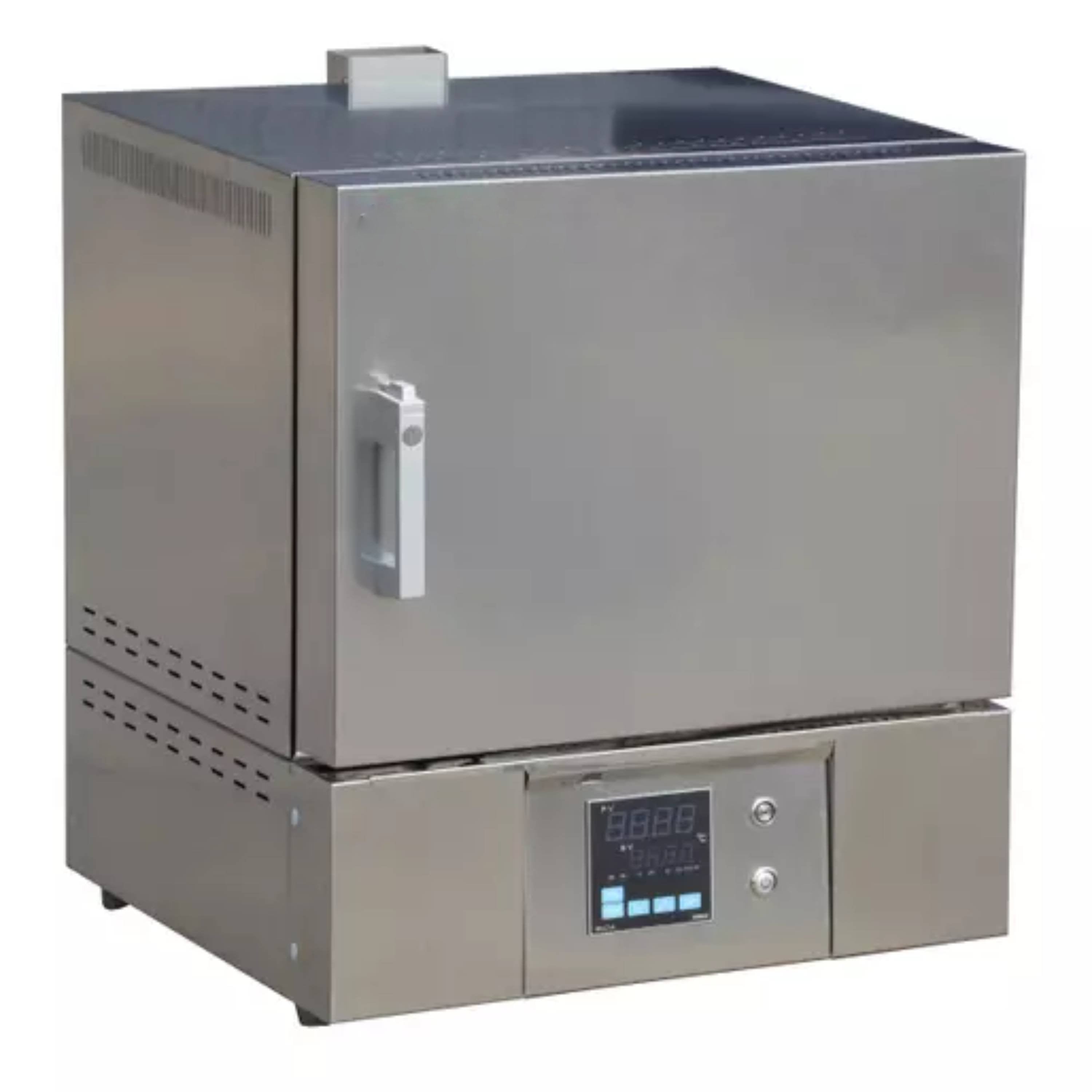

MSE PRO 1200℃ Muffle Furnace Programable Model (Japan-Controller) – 300×200×200mm, 220V, 12L
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ 1200℃ Muffle Furnace Programable Model (Japan-Controller) – 300×200×200mm, 220V, 12L
Product Description
Sintering, melting, elemental analysis and physical measurement within 1200℃ of precise control
Features:
- Import time control system and high precise sensor with sensitive, response, high precision and good stability.
- Adding exhaust devices is beneficial to ashing.
- Split design, circuit detachable, easy to maintenance and repair.
- P model is program temperature control type. Program temperature controller can program multistage program.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Climate Chamber with Illuminations. Please contact us for more information.
Specifications:
|
Model |
MA0067539 |
|
|
Heating mode |
Alloy wire heating in three sides left; right; top side. |
|
|
Function |
Temp. Range |
100-1200℃ |
|
Temp. Resolution Ratio |
1℃ |
|
|
Temp. motion |
±1℃ |
|
|
Temp. Rising time to max temp |
≤30min |
|
|
Structure |
Chamber material |
Ceramic fiber |
|
Outer shell |
Stainless steel |
|
|
Insulation layer |
Ceramic fiber |
|
|
Heater |
Alloy heating wire |
|
|
Power rating |
4.5kW |
|
|
Exhaust hole |
φ30mm(chimney size 80*60mm) |
|
|
Controller |
Temp. control mode |
Japaness Fuji color LCD 64- segment programmed temperature controller |
|
Temp. setting mode |
Touch button setting |
|
|
Temp. display mode |
Measuring temperature: LED upper row, setting temperature: the lower row |
|
|
Timer |
0- -99 hours and 59 minutes(with Timing Waiting Function) |
|
|
Operation function |
Fixed temperature operation, timing function, auto stop. |
|
|
Additional function |
Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory |
|
|
Sensor |
High precision K type sensor |
|
|
Safety device |
Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection, thermocouple failure |
|
|
Specification |
Inner Chamber size |
200*300*200 |
|
Exterior size (W*L*H) (mm) |
530*785*720 |
|
|
Packing size (W*L*H) (mm) |
655*875*865 |
|
|
Volume |
12L |
|
|
Current rating (50/60HZ) |
AC220V/9.9A |
|
|
NW/GW (kg) |
62/68 |
|
|
optional type |
Air Inlet, USB interface, 5.0inch ture color screen, programable controller with USB date storage function |
|
