IKA RW 20 Digital Package Overhead Stirrers (20 l, 2000 rpm) - MSE Supplies LLC

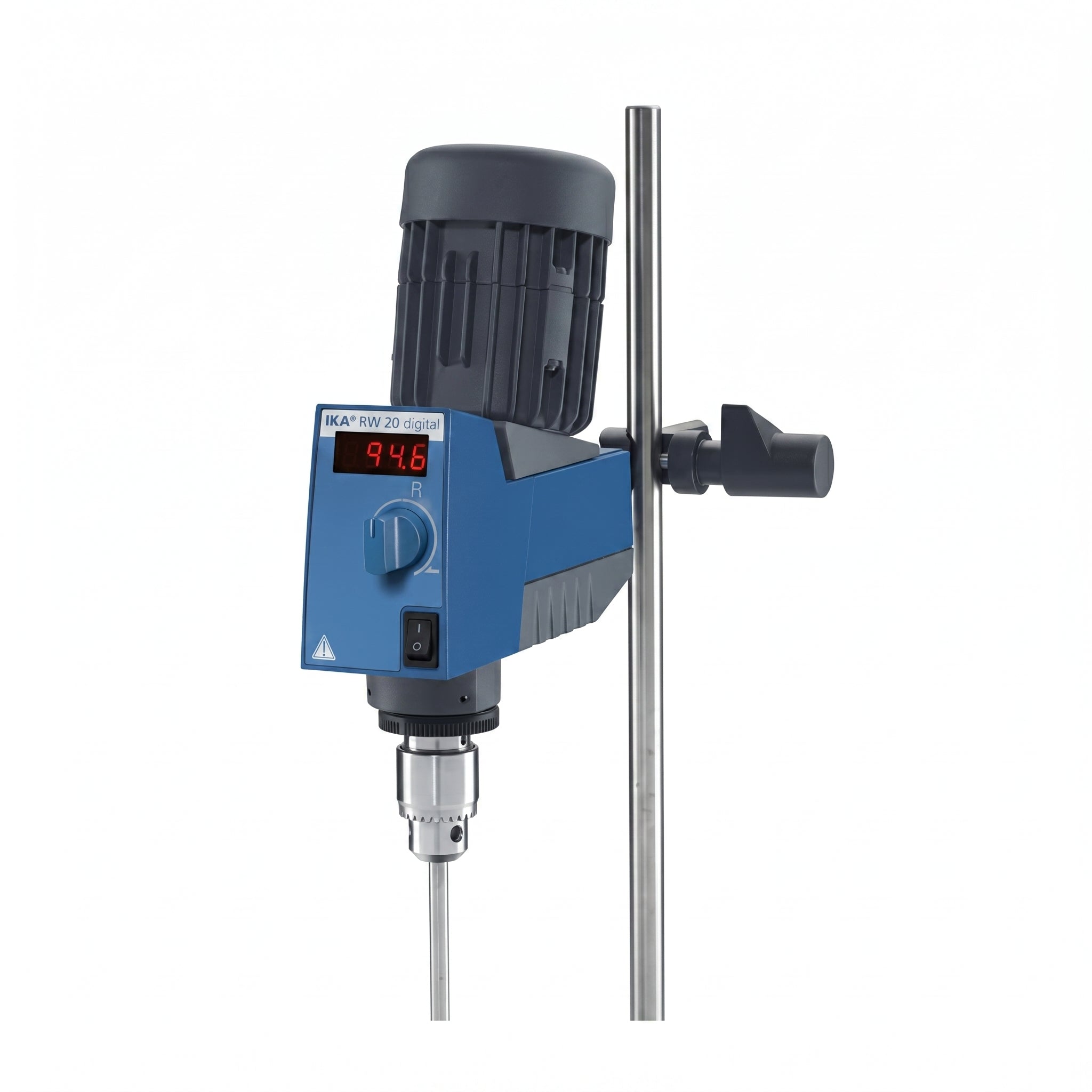

IKA RW 20 Digital Package Overhead Stirrers (20 L, 2000 rpm)

  • $ 2,05095
  • Save $ 24700


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0010003305

The bestseller in the laboratory:
  • With digital display
  • Robust, slimline, ergonomic design
  • Technical improvements on the trusted RW 20 series designs
  • With constant power-drive
  • Two speed ranges for universal use from 60 - 2.000 rpm
  • Push-through agitator shafts (only when stationary)
  • For stirring quantities of up to 20 L(H2O)
Package includes
  • RW 20 digital
  • R 1826 Plate stand
  • R 182 Boss head clamp
  • R 1342 Propeller stirrer, 4-bladed
  • RH 3 Strap clamp

                                      About IKA

                                      Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

                                      Technical Data of IKA RW 20 Digital Package Overhead Stirrers (20 L, 2000 rpm)

                                      Stirring quantity max. per stirring position (H2O) 20 L
                                      Motor rating input 70 W
                                      Motor rating output 35 W
                                      Speed display LED
                                      Speed range 60 - 2000 rpm
                                      Viscosity max. 10000 mPas
                                      Output max. at stirring shaft 26 W
                                      Permissible ON time 100 %
                                      Torque max. at stirring shaft 150 Ncm
                                      Torque max. at stirring shaft at 60 1/min (overload) 300 Ncm
                                      Torque max. at stirring shaft at 100 1/min 150 Ncm
                                      Torque max. at stirring shaft at 1.000 1/min 24 Ncm
                                      Speed range I (50 Hz) 60 - 500 rpm
                                      Speed range II (50 Hz) 240 - 2000 rpm
                                      Speed range I (60 Hz) 72 - 600 rpm
                                      Speed range II (60 Hz) 288 - 2400 rpm
                                      Speed adjustment stepless
                                      Setting accuracy speed ±1 rpm
                                      Deviation of speed measurement ±30 rpm
                                      Stirring element fastening chuck
                                      Chuck range diameter 0.5 - 10 mm
                                      Hollow shaft, inner diameter 10.5 mm
                                      Hollow shaft (push-through - when stopped) yes
                                      Fastening on stand extension arm
                                      Extension arm diameter 13 mm
                                      Extension arm length 160 mm
                                      Speed control mechanical
                                      Nominal torque 1.5 Nm
                                      Dimensions (W x H x D) 88 x 294 x 212 mm
                                      Weight 3.1 kg
                                      Permissible ambient temperature 5 - 40 °C
                                      Permissible relative humidity 80 %
                                      Protection class according to DIN EN 60529 IP 20
                                      Voltage 110 - 120 V
                                      Frequency 50/60 Hz
                                      Power input 72 W
