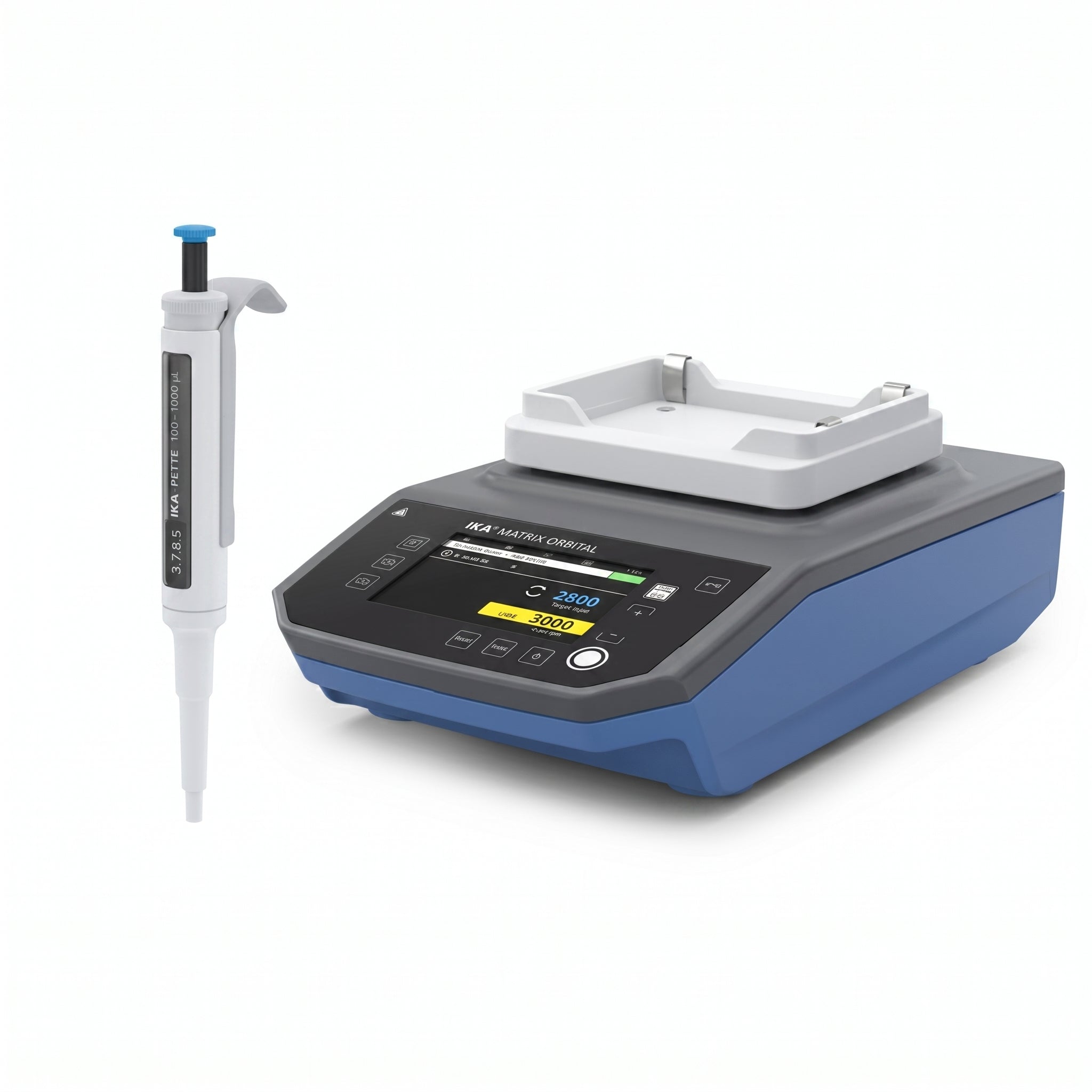

IKA MATRIX Orbital Thermoshakers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0010006510
The IKA Matrix Orbital is part of a new and powerful product family of thermoshakers available. IKA Matrix Orbital mixes and is suitable for variable inserts. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result.In addition, IKA Matrix Orbital comes with numerous user-friendly features:
- Large and clear display with a convenient menu structure allows for intuitive operation
- Speeds of up to 3,000 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
- Two different speed modes for optimal mixing
- Speed adjustment according to insert, attachment and filling volume
- Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
Scope of delivery
- MATRIX Orbital
- PCR insert
- 1.5/2.0 ml insert
- 0.5 ml insert
- IKA PETTE vario 100-1000 µl
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
| Type of movement |
orbital |
| Shaking stroke |
3 mm |
| Maximun load |
0.3 kg |
| Permissible ON time |
100 % |
| Speed min (adjustable) |
300 rpm |
| Speed range |
0 - 3000 rpm |
| Speed display |
TFT |
| Speed deviation |
±30 rpm |
| Speed adjustment |
10 RPM Steps |
| Timer |
yes |
| Timer display |
TFT |
| Time setting min. |
1 s |
| Time setting max. |
6000 min |
| Operating mode |
timer and continuous operation |
| Working with microtiter plates |
yes |
| Number of reaction vessels |
24x 0.5 ml / 24x 1.5 ml / 24x 2.0 ml |
| Number of PCR plates |
1 |
| Number of Deep Well Plates (DWP) |
1 |
| Dimensions (W x H x D) |
200 x 120 x 320 mm |
| Weight |
7.2 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative humidity |
80 % |
| Protection class according to DIN EN 60529 |
IP 21 |
| RS 232 interface |
yes |
| USB interface |
yes |
| Voltage |
100 - 240 V |
| Frequency |
50/60 Hz |
| Power input |
80 W |
| Power input max. |
80 W |
| Fuse |
2x T4A 250V |
