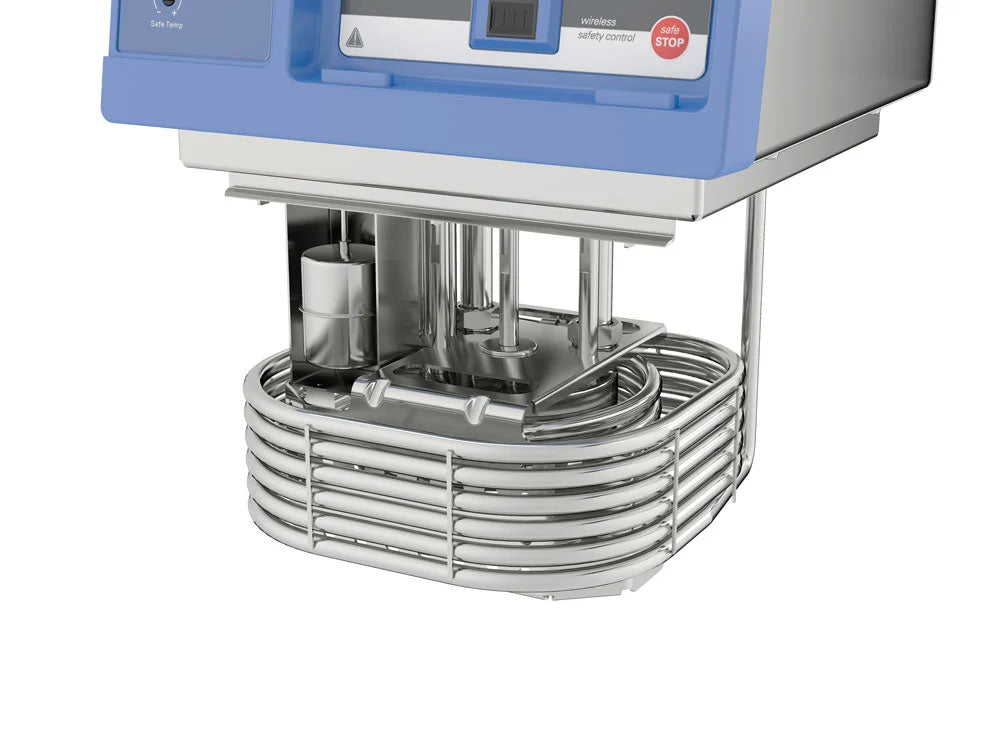

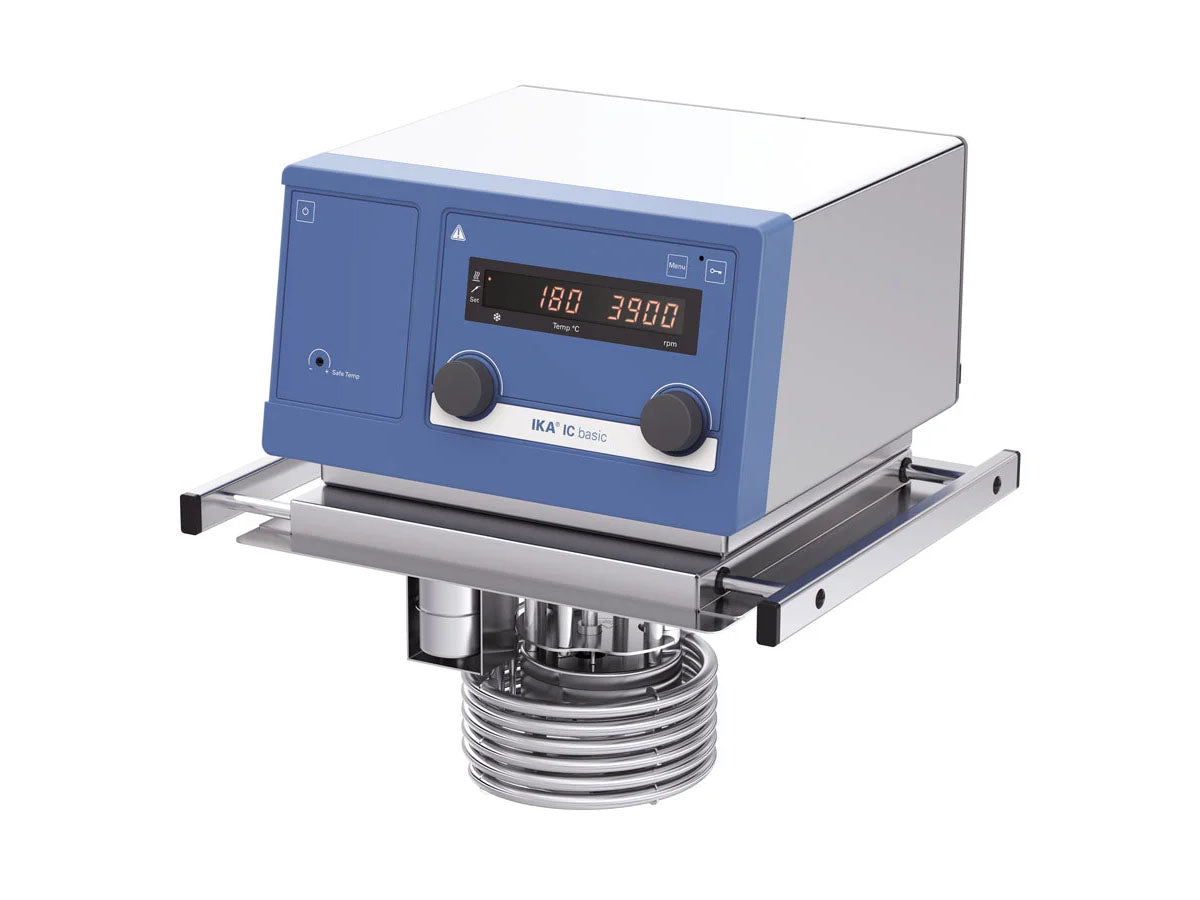

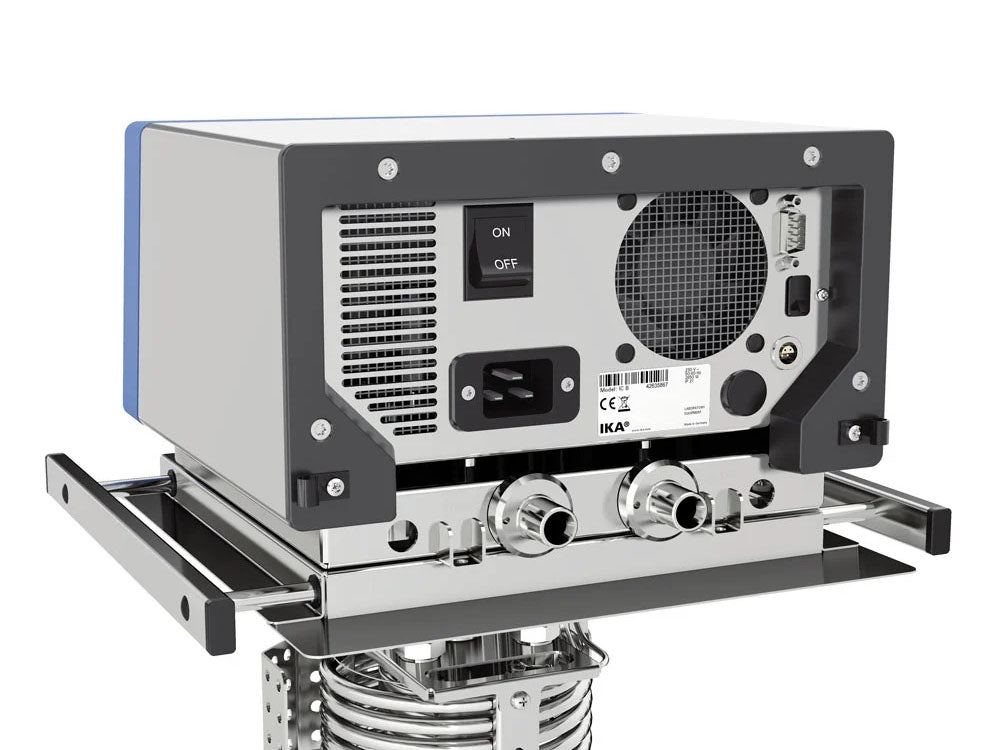

IKA IC Basic Temperature Control
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0003861001
The IC basic immersion circulator is used for tempering liquids in open or covered water baths up to 250 °C. The circulator has an adjustable bridge that can be replaced by a fixed bridge.
With the integrated powerful pressure/suction pump, the IC basic can be used for internal and external applications. A cooling coil can be connected to the circulator to temper near-ambient temperatures. All IKA circulating baths conform to the highest safety classification III (FL) for use with flammable liquids according to DIN 12876. The IC basic immersion circulators allow for quick heat-up times and stable temperature conditions. With integrated connections (M16x1) the device is suitable for external applications.
- Temperature range: RT - 250 °C
- Temperature stability is ± 0.02 K
- Stainless steel bath bridge can be combined with water baths of different volumes
- Adjustable safety circuit
- Powerful pressure/suction pump
- Large easy to read LED display for pump speed and temperature
- Push and turn buttons for intuitive menu navigation
- Connection for external PT 100 temperature probe
- Visual and acoustic safety warnings
- USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as for online firmware updates
Scope of delivery
- Hose olive NW 12 (2 pcs.)
- Screwdriver
- USB Cable - USB A to Micro-B, 2 m
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA IC Basic Temperature Control
| Appliance type | Immersion thermostat |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output | 1250 W |
| Working temperature | room temp. +10K @1000rpm - 250 °C |
| Operating temperature min. (with external cooling) | -20 °C |
| Temperature display | yes |
| Temperature control | PT 100 |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 | ±0.02 K |
| Connection for ext. temperature sensor | PT 100 |
| Display resolution | 0.1 K |
| Display for operation with ext. sensor | yes |
| Set temperature resolution | ±0.1 K |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Adjustable safety circuit | 0 - 260 °C |
| Sub-level protection | yes |
| Over-level protection | yes |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) | 0.61 bar |
| Pressure pump (suction side) (0 liter flow) | 0.45 bar |
| Flow rate max. (0 bar back pressure) | 31 l/min |
| Pump connection | M16x1 |
| Bath depth min. | 150 mm |
| Calibration option | yes |
| Appliance fastener | Bridge |
| Range of universal clamp | 280 - 375 mm |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 285 x 313 x 291 mm |
| Weight | 10 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 100 - 115 V |
| Frequency | 50/60 Hz |
| Power input | 1400 W |
