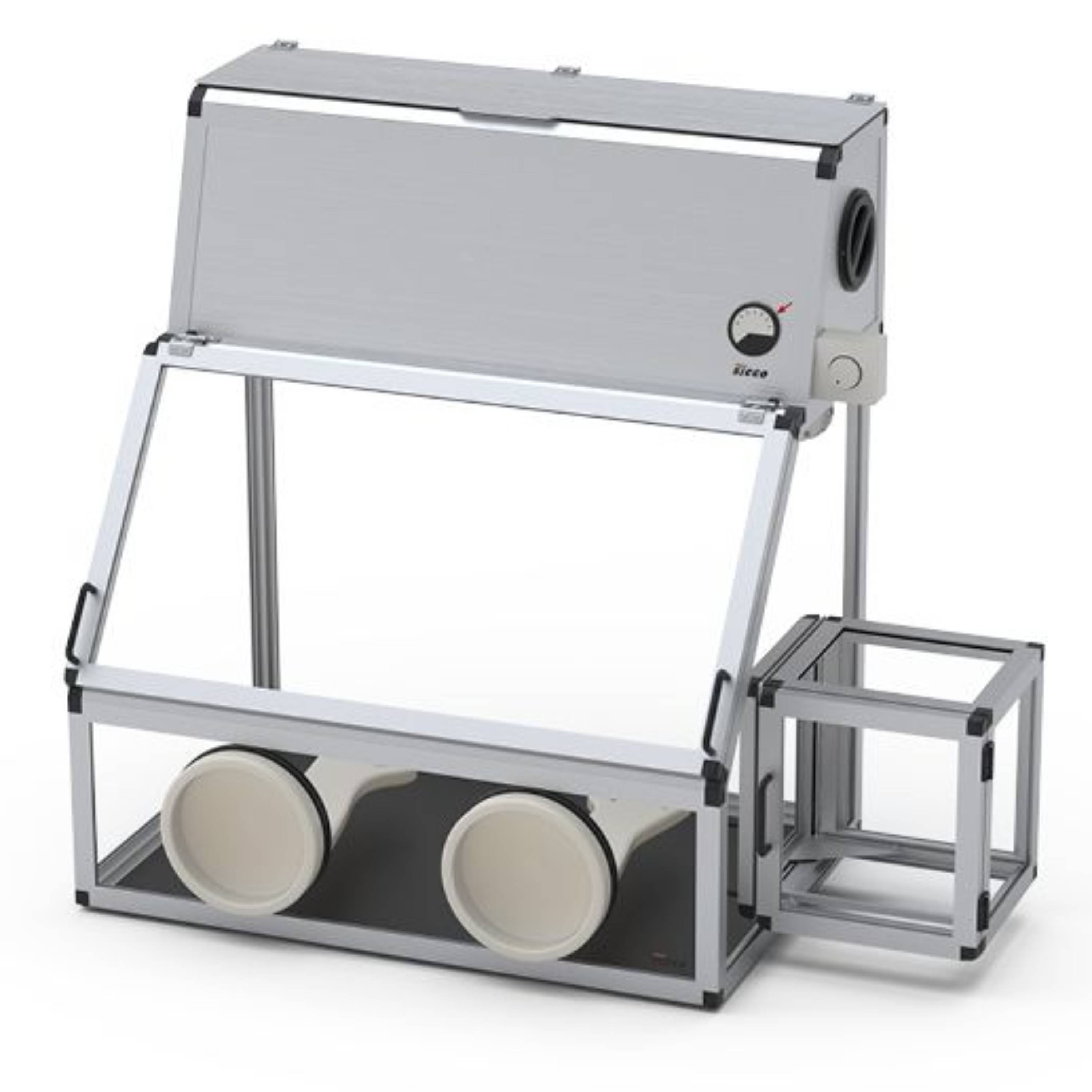

SICCO Glove Box Air Stream with Transfer Chamber (W 1210 × H 1015 × D 660 mm ) (PMMA/PE/AL )
Couldn't load pickup availability
Still have questions? Ask our experts!
SICCO Glove Box Air Stream with Transfer Chamber (W 1210 × H 1015 × D 660 mm) (PMMA/PE/AL)
Product description

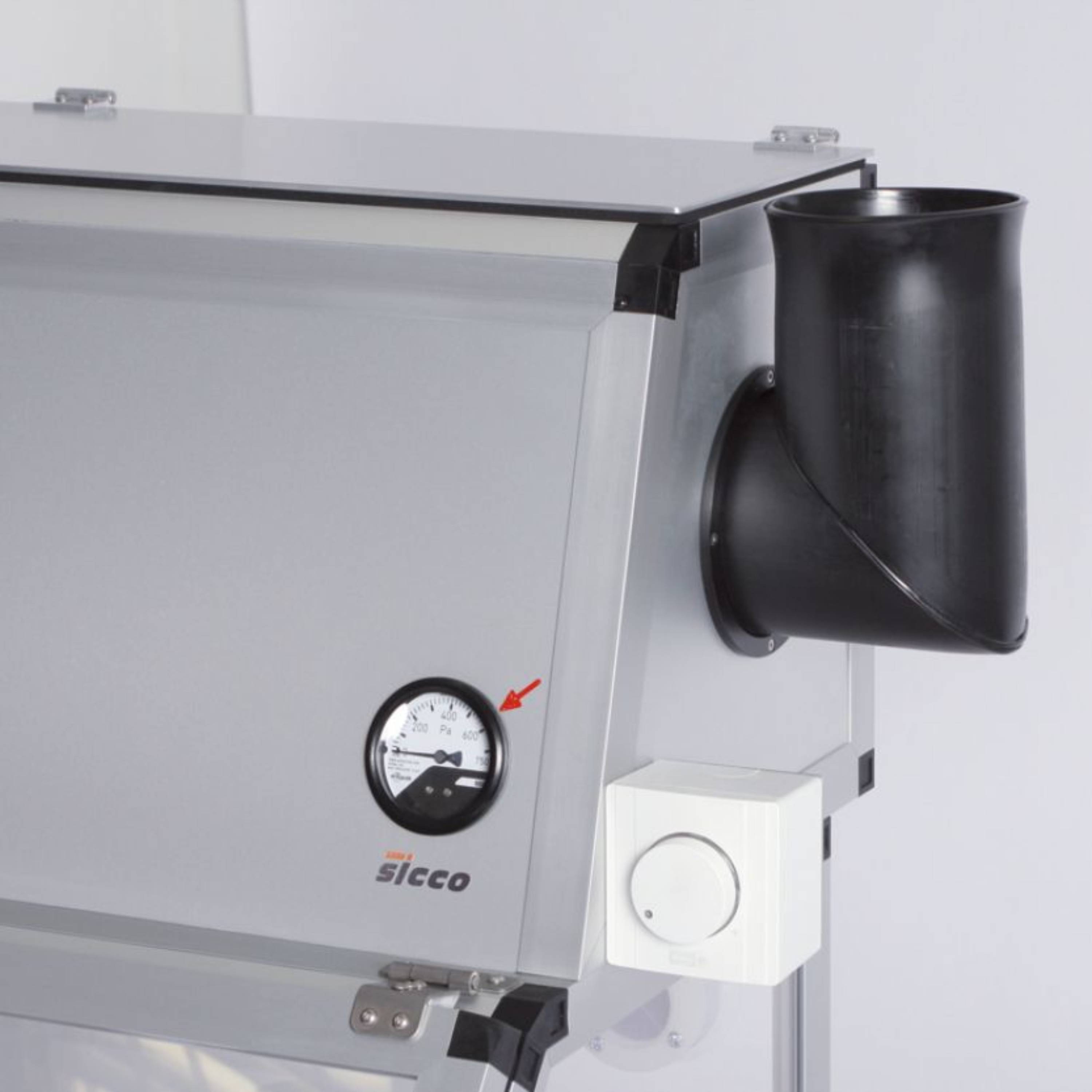

Aluminum frame with panels made of acrylic glass, base panel made of polyethylene. Front panel with two glove ports and one pair of natural rubber gloves size 9, two lead-ins for cables on the back side (upper left and upper right). Transfer chamber with two doors on the right, external door with latch to prevent accidental opening, the tray extends into the workspace with opening of the internal door for easy removal of inserted products. Integrated HEPA filtering unit in the top side for a high-purity atmosphere in the workspace. Manometer to display the degree of filter saturation. Pipe sockets made of PE are included in delivery for converting to the different operating modes: internal air circulation, fresh air supply and exhaust. The conversion can be made without any tooling. Exchangeable filter cartridge. Maintenance-free and trouble-free motor. Electrical power connection 230 V / 50 Hz is required.
Product advantages
- Robust and light-weight aluminum construction
- Superb all-round visibility
- Non-slip rubber feet
- Cable lead-ins for electric devices
- Large front opening
- Transfer chamber for inserting further products
Applications
For working in a highly pure atmosphere.
Product description
Aluminum frame with panels made of acrylic glass, base panel made of polyethylene. Front and back side with one door each, two pairs of opposite glove ports each with one pair of natural rubber gloves size 9, two cable lead-ins (left bottom side). Transfer chamber (right) with two doors, external door with latch to prevent accidental opening, the tray extends into the workspace with opening of the internal door for easy removal of inserted products. The tray is only operable from one workstation side (front right-hand). Work space and transfer chamber including two hose connectors for gas-filling each and appropriate tubing (2x 5 m tubing for gas-filling made of PVC and 2x 5 m aeration tubing made of PE).
Product advantages
- Robust and light-weight aluminum construction
- Superb all-round visibility
- Non-slip rubber feet
- Cable lead-ins for electric devices
- Large front opening
- Connectors for gas-filling and aeration including appropriate tubing
- Transfer chamber for inserting further products
Applications
Large interior space with two big doors. Two opposite workstations allow operation from two sides at the same time. Working with bulky or heavy goods is easier through a second pair of hands.
The SICCO Glove Boxes allow safe working with sensitive compounds in a controlled environment. The natural rubber gloves provide with the necessary mobility for safe handling. The connectors for gas filling allow to flush the workspace as well as the transfer chamber, the glove boxes can be easily loaded.
Specifications
|
Model |
V 1745-08 |
|
Material |
PMMA |
|
Panels |
clear |
|
Stand |
rubber feet |
|
Temperature resistance |
from -20°C to +70°C |
|
Use |
normal pressure |
|
Capacity Box [[liters] |
290 |
|
Capacity transfer chamber [liters] |
24 |
|
Hinged lid opening [W x H mm] |
850 x 425 |
|
Max. all-over load box [kg] |
24 |
|
Max. all-over load transfer chamber [kg] |
3 |
|
Overall dimensions [W x H x D mm] |
1210x 1015 x 660 |
|
Usable interior space Box [W] |
850 x 650 x 540 |
|
Usable interior space transfer chamber [W x H x D mm] |
220 x 275 x 320 |
|
Weight [kg approx.] |
42 |
Downloadable links:
Technical information
Material Safety Data Sheets
Operating Instructions
