SICCO Air Ionizer (W 65 × H 60 × D 37 mm ) (PBT)
Product Description

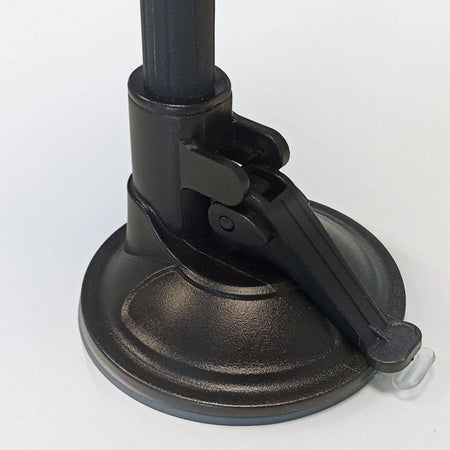

Air Ionizer with integrated fan for local charge removal at low fan speed. The tripod with suction cup allows to install the Ionizer at any desired position in the working area. With the ball joint the air stream can be directed in the desired area. Electrical power connection 240 V / 50Hz is required.
Applications
Removal of static charging by means of ionized air and directing the air stream on the concerned area. Possible applications can be the processing of electronic components or avoiding a sticking of dust and powder particles.
Specifications
|
Model |
V 1788-01 |
|
Material |
PBT |
|
Stand |
tripod with suction cup |
|
Use |
normal pressure |
|
Air humidity [Prozent] |
35 - 65 |
|
Air volume [m³ min] |
max. 0,2 |
|
Charge removal time [sec.] |
ca. 1,5 |
|
Fan speed [m s] |
,ax. 6,4 |
|
Ion balance [V] |
max. +/- 10 |
|
Length of tripod [mm] |
255 |
|
Overall dimensions (without tripod) [mm] |
65 x 60 x 37 |
|
Weight [kg] |
0.5 |
|
Working temperature [°C] |
0 - +50 |
Downloadable links:
Technical information
Operating Instructions
