Home » Glove Boxes » AS ONE Glove Box 1290 x 535 x 500mm　(Air Tight 1000 OX)
AS ONE Glove Box 1290 x 535 x 500mm　(Air Tight 1000 OX) - Glove Boxes - AS ONE Corporation - MSE Supplies
AS ONE Glove Box 1290 x 535 x 500mm　(Air Tight 1000 OX) - Glove Boxes - AS ONE Corporation - MSE Supplies
AS ONE Corporation

AS ONE Glove Box 1290 x 535 x 500mm　(Air Tight 1000 OX)

Order upon Request
SKU: ASONE2-4952-06
$ 10,891.95

Still have questions? Ask our experts!

Email +1 (520) 789-6673

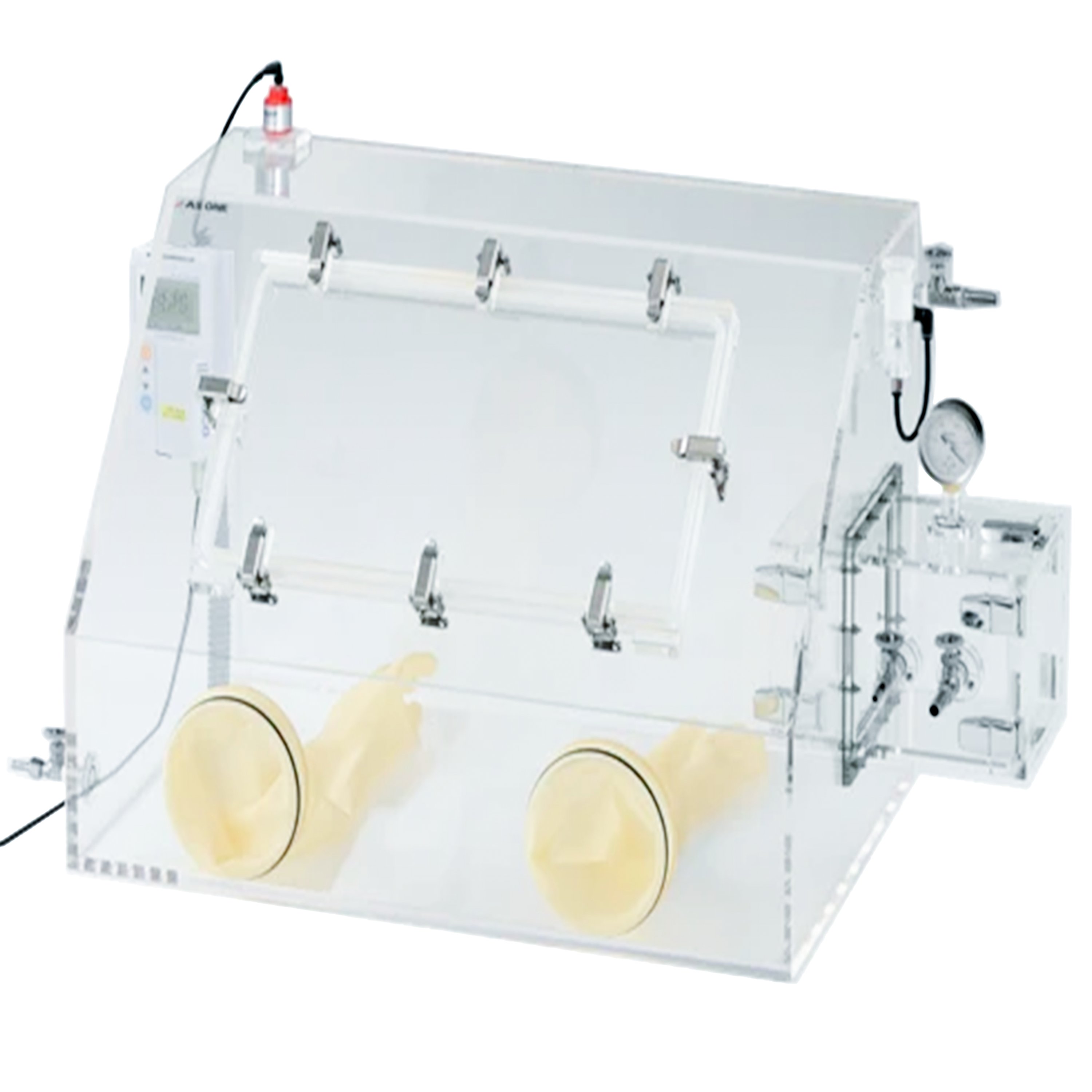

AS ONE Glove Box  1290 x 535 x 500mm　(Air Tight 1000 OX)

Buy AS ONE Corporation products from MSE Supplies at the best Value. Made in Japan.

Features:

  • The pass box can be replaced by a vacuum drawing method.
  • The body has a safety valve (100 mmH2O=980 Pa) for positive pressure.
  • It is equipped with a standard oxygen monitor, which is necessary for monitoring the internal environment. Also, the monitor holder is adjustable in angle.

Specifications:

Size (mm):  1290 x 535 x 500
Material:  Body/Transparent PMMA (acrylic resin), Sensor Base/PMMA (acrylic) 10 mm thickness Valve, vacuum gauge mounting portion/PC (polycarbonate) (Oxygen concentration meter holder) Base plate/PVC 5mm thickness, Torque hinge (SUS), Hinge Base/PMMA (acrylic) 10mm thickness
Pass box allowable vacuum degree:  1Torr (approx 133Pa)
Pass box internal dimensions:  150 x 150 x 220mm
Oxygen concentration measurement range:  0 - 25.0％
Weight:  51kg
Accessories:  Valve (outer diameter φ8mm, φ14mm) x 2 pieces, Vacuum gauge x 1 piece, Gloves for Glove box (large) x 1 pair
Size (mm):  Air tight 1000 OX with monitor
*See (1-9499-11) for the detail of Oxygen monitor.
Model number:  Air tight 1000 OX with monitor
