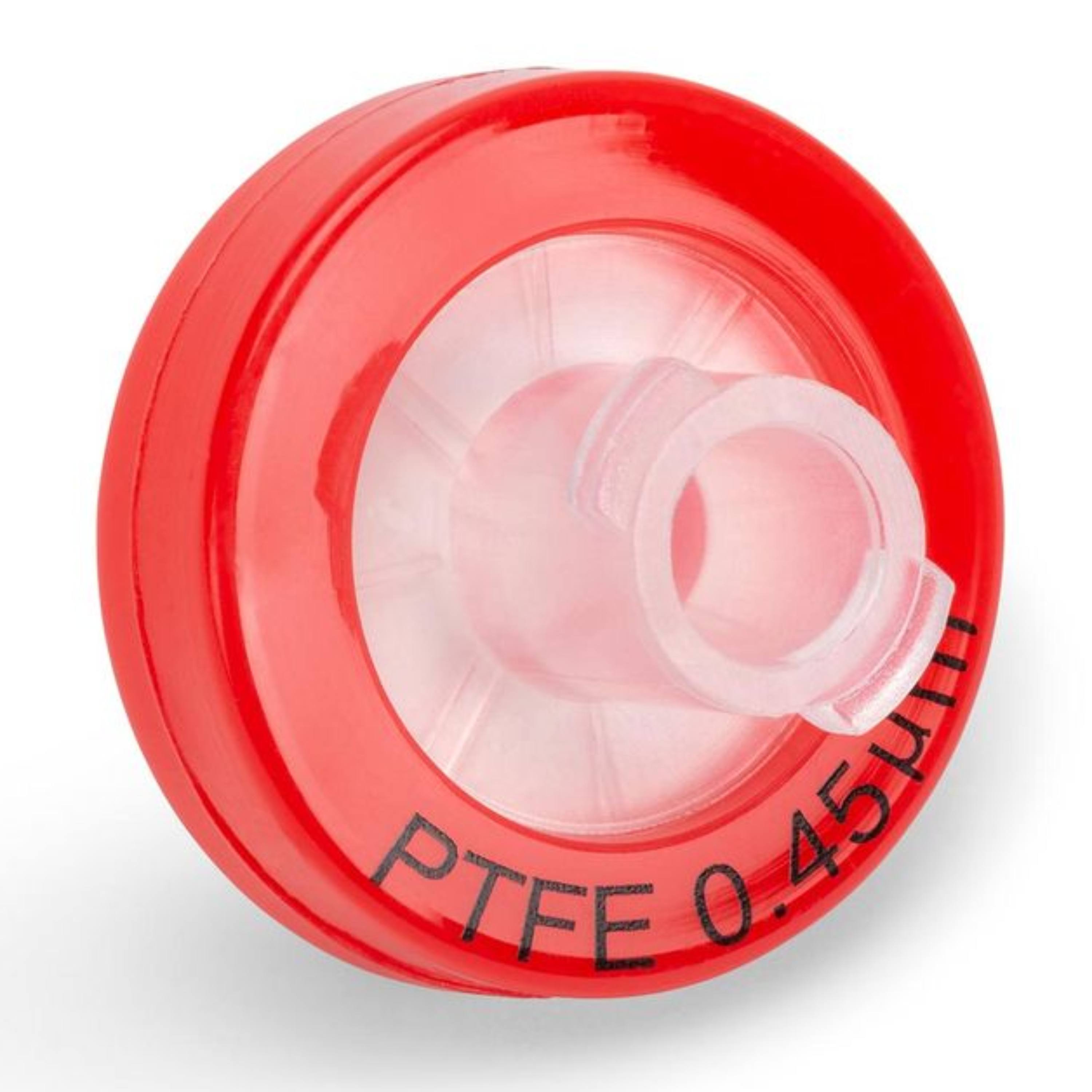

Globe Scientific Syringe Filter,PTFE,0.45μm,13mm,NON-Sterbulk Packed, Hydrophilic

Order upon Request
SKU: GLOBE-SF-PTFE-4513
Regular price $ 167.95

Still have questions? Ask our experts!

Globe Scientific Syringe Filter,PTFE,0.45μm,13mm,NON-Sterbulk Packed, Hydrophilic

Product Description

Non-sterile Diamond® PureFlow™ syringe filters are perfect for use in a wide range of filtration and sample applications where sterility is not needed. Non-sterile filters are used in analytical chemistry for sample preperation, HPLC operations, and protecting analytical equipment from particle contamination.

  • Bulk packaged with filter membrane type and membrane porosity printed on each filter.
  • Polypropylene microfiber pre-filter layer to improve filtration of particulate-laden fluids.

Get the Diamond® PureFlow™ Advantage:

  • Performance - High flow rates and low absorption membranes for minimal sample loss.
  • Simplicity - Color coded outer ring allows easy identification of membrane and filter media type. Each unit is clearly marked with an identifying code to denote pore size and membrane material.
  • Strength - Bonded outer ring on housing provides strength under higher working pressures for high performance needs
  • Efficiency - Integral polypropylene pre-filter for high flow rates and fast filtration
  • Quality - Manufacturing process certified to ISO 9001 standards

Technical Information

PTFE (Polytetrafluorethylene) Hydrophilic Membrane

  • "Universal" membrane - Ideal for both aqueous and organic samples
  • Strong chemical stability and inertia
  • Strong acid and alkali solvent filtration
  • Chemically resistant to all solvents
  • pH Range: 1-14

Specifications

Items

SF-PTFE-4513

Diameter

13mm

Housing Material

PP

Filtration Area (cm²)

0.092

Holdup Volume (μl)

<10

Volume Throughput (ml)

10

Connections (Inlet/Outlet)

Female Luer Lock Inlet / Male Luer Slip Outlet

Max Operating Pressure (psi)

87

Max Operating Temperature (°C)

100

Prefilter

PP


Downloads
