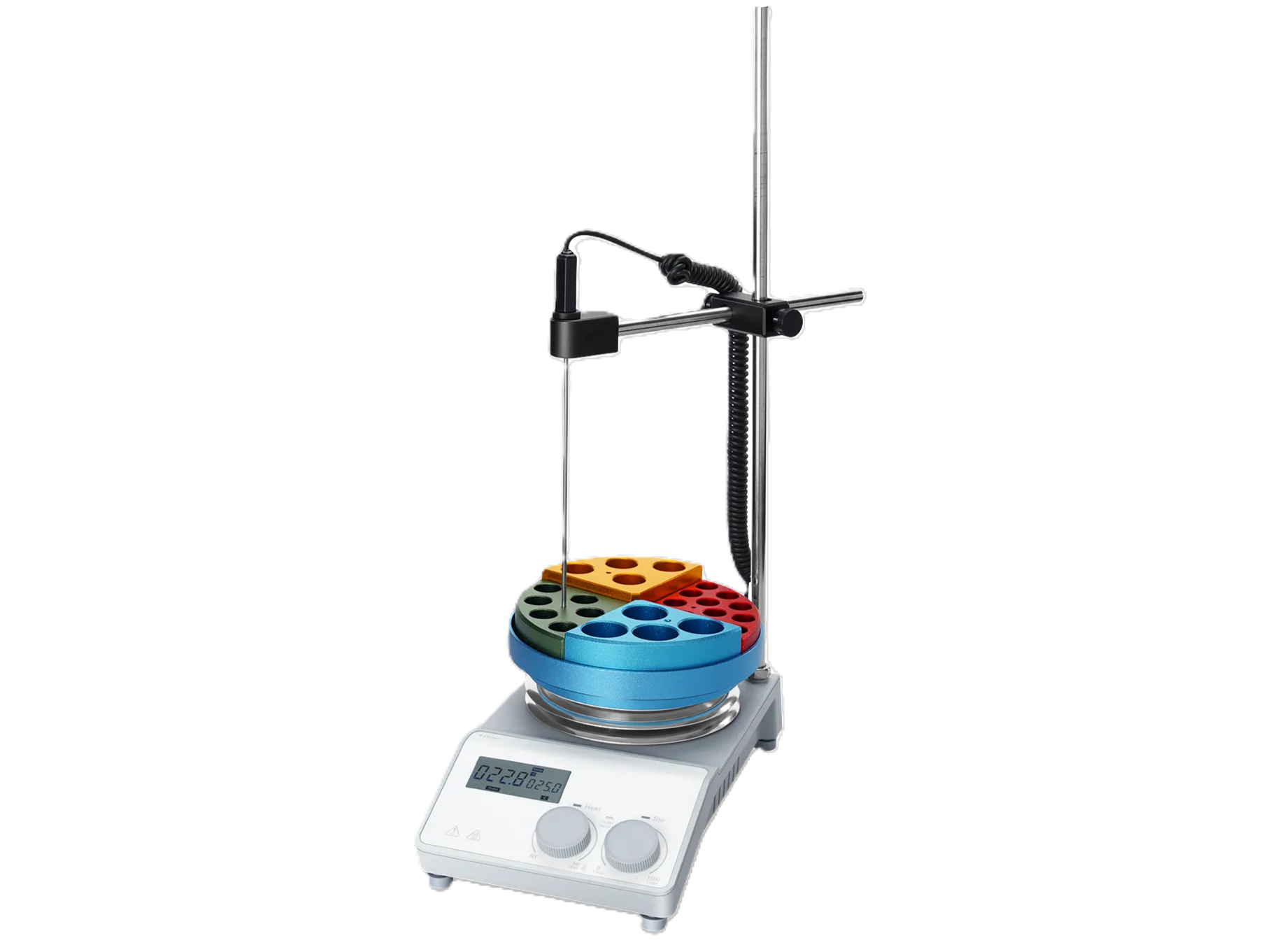

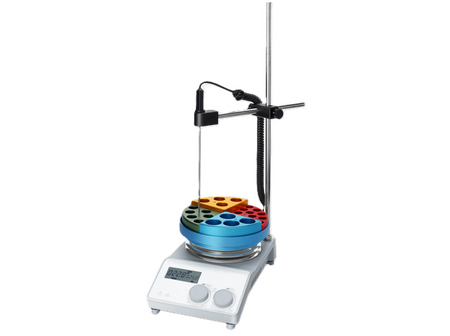

MSE PRO LCD Digital Magnetic Hotplate Stirrer, Stainless Steel with Ceramic Coating Work Plate
Regular price
$ 765.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ LCD Digital Magnetic Hotplate Stirrer, Stainless Steel with Ceramic Coating Work Plate
- Brushless DC motor is maintenance free and explosion-proof
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of water is 20L
- Safety circuits provide overheating protection
- "HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
- Work plate with ceramic coating provides good chemical-resistant performance
- Remote function provides PC control and data transmission
- Wide variety of accessories available to choose
- Optional: External temperature control is possible by connecting the temperature sensor with accuracy at ±0.2°C
Specifications:
|
SKU
|
LS1511
|
|
Work plate Dimension
|
Ø135mm (5 inch)
|
|
Work plate material
|
Stainless Steel cover with ceramic coating
|
|
Max. stirring quantity [H2O]
|
20L
|
|
Speed range
|
100-1500rpm resolution ±1rpm
|
|
Speed display
|
LCD
|
|
Temperature display
|
LCD
|
|
Heating temperature range
|
Room Temp. to 340℃, increment 1℃
|
|
Temperature control accuracy
|
±1℃(<100℃), ±1%(>100℃)
|
|
Temperature display accuracy
|
±0.1℃
|
|
External temperature sensor (optional)
|
accuracy±0.2℃
|
|
"Hot" warning
|
50℃
|
|
Overheating temperature protection
|
420℃
|
|
Motor type
|
Brushless DC motor
|
|
Stirring positions
|
1
|
|
Max. magnetic bar length
|
80mm
|
|
Data connector
|
RS232
|
|
Timer function
|
-
|
|
Protection class
|
IP21
|
|
Motor rating input
|
18W
|
|
Motor rating output
|
10W
|
|
Power
|
550W
|
|
Heating output
|
500W
|
|
Voltage Frequency
|
100-120V , 50/60Hz (Standard)
200-240V, 50/60Hz
|
|
Dimension [WxDxH]
|
160×280×100mm
|
|
Weight
|
2.8kg
|
|
Permissible ambient temperature
|
5-40℃
|
|
Permissible ambient humidity
|
80% RH
|
