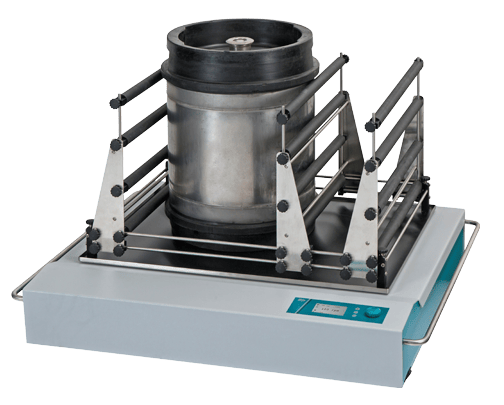

Barrel Shaker with VKS 75 F control (Edmund Buhler, Made in Germany)
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.
Description
The Edmund Buhler Barrel Shaker with VKS 75 F control with digital display and programmable control has a horizontal shaking motion. With a shaking speed up to 80 rpm, a selected stroke between 120 - 150 mm, a loading capacity up to 75 kg and a respective rack system with 3 fixing elements that shaker is optimally suited for horizontal or vertical barrels up to 80L capacity.
(floor installation only!)
Basic Equipment
Basic device with shaking plate and rubber mat, without rack system
With digital display and programmable control
Loading Capacity and Accessories
Horizontal or vertical barrels up to 80L capacity
Shaking plate VKS (1-story), p/n 0052 070
Rack system Barrel Shaker
Options
Control interface, p/n 0052 211
USB interface, p/n 0052 210
Details
| Motion: | reciprocating (horizontal) motion |
| Shaking platform: | 760 x 600 mm |
| Max. load: | 75 kg |
| Shaking speed: | up to 80 rpm, in steps of 5 |
| Stroke: | 120 - 150 mm in 10 mm steps |
| Timer: | programmable / continuous |
| Order No.: | 6212 000 |
Technical specifications
| Electrical supply: | 100 - 240 V, 50 / 60 Hz - please specify |
| Enclosure protection: | IP 21 |
| Heat emission: | max. 45 W |
| Ambient temperature: | 5 °C to 50 °C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 1050 x 835 x 250 mm |
| Weight: | 110 kg |
| Total weight (Shaker + shaking plate + Rack system): | 132 kg |
