Buy Hilgenberg high-precision glass products from MSE Supplies at the best value.

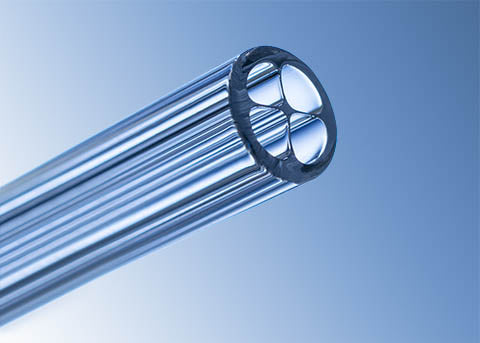

The main feature of our theta cross-section capillaries is their four completely separate chambers in a round cross-section. The individual inner chambers are separated from each other by the thinnest possible membrane, which remains fully intact even when drawing out to very thin tips.
They are ideally suited to liquid perfusion applications on cells, as the deformation of the cell wall or cell membrane can be reduced to a minimum.
In addition to the theta cross-section profiles, there are also capillaries with a septum creating two chambers. There is also the option of inserting filaments here.
Made from borosilicate glass
| SKU# | Outer Ø (mm) | Inner Ø (mm) | Wall thickness (mm) | Septum (mm) | Length (mm) |
| 1401010 | 1.50 ± 0.05 | 1.05 ± 0.05 | 0.225 | 0.165 | 75.00 |
| 1401016 | 1.50 ± 0.05 | 1.05 ± 0.05 | 0.225 | 0.165 | 100.00 |
| 1401019 | 1.50 ± 0.05 | 1.05 ± 0.05 | 0.225 | 0.165 | 150.00 |
| 1401046 | 2.00 ± 0.15 | 1.40 ± 0.15 | 0.3 | 0.22 | 75.00 |
| 1401021 | 2.00 ± 0.15 | 1.40 ± 0.15 | 0.3 | 0.22 | 100.00 |
| 1401025 | 2.00 ± 0.15 | 1.40 ± 0.15 | 0.3 | 0.22 | 150.00 |
MSE Supplies provides a wide range of technical glass products. Contact us for more details.
