Buy Hilgenberg high-precision glass products from MSE Supplies at the best value.

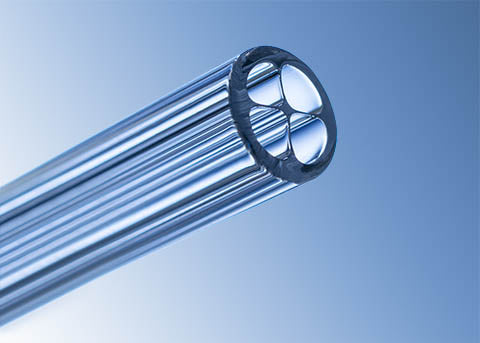

We have further developed our small theta cross-section capillaries to now manufacture a larger version. The large-volume capillaries have a total diameter of max. 8 mm. The thin partitions separate the internal cross-section into four equally sized chambers, like a clover leaf. The tubes are used, for example, in reaction vessels in which several substances are encapsulated and can be released as necessary by breaking the tube.
| SKU# | Outer Ø (mm) | Inner Ø (mm) | Wall thickness (mm) | Septum (mm) | Length (mm) |
| 1401730 | 1.00 ± 0.10 | 0.70 ± 0.10 | 0.15 | 0.044 | 100.00 |
| 1401731 | 2.00 ± 0.10 | 1.40 ± 0.10 | 0.3 | 0.088 | 100.00 |
| 1401728 | 3.00 ± 0.20 | 2.20 ± 0.20 | 0.4 | 0.12 | 100.00 |
MSE Supplies provides a wide range of technical glass products. Contact us for more details.
