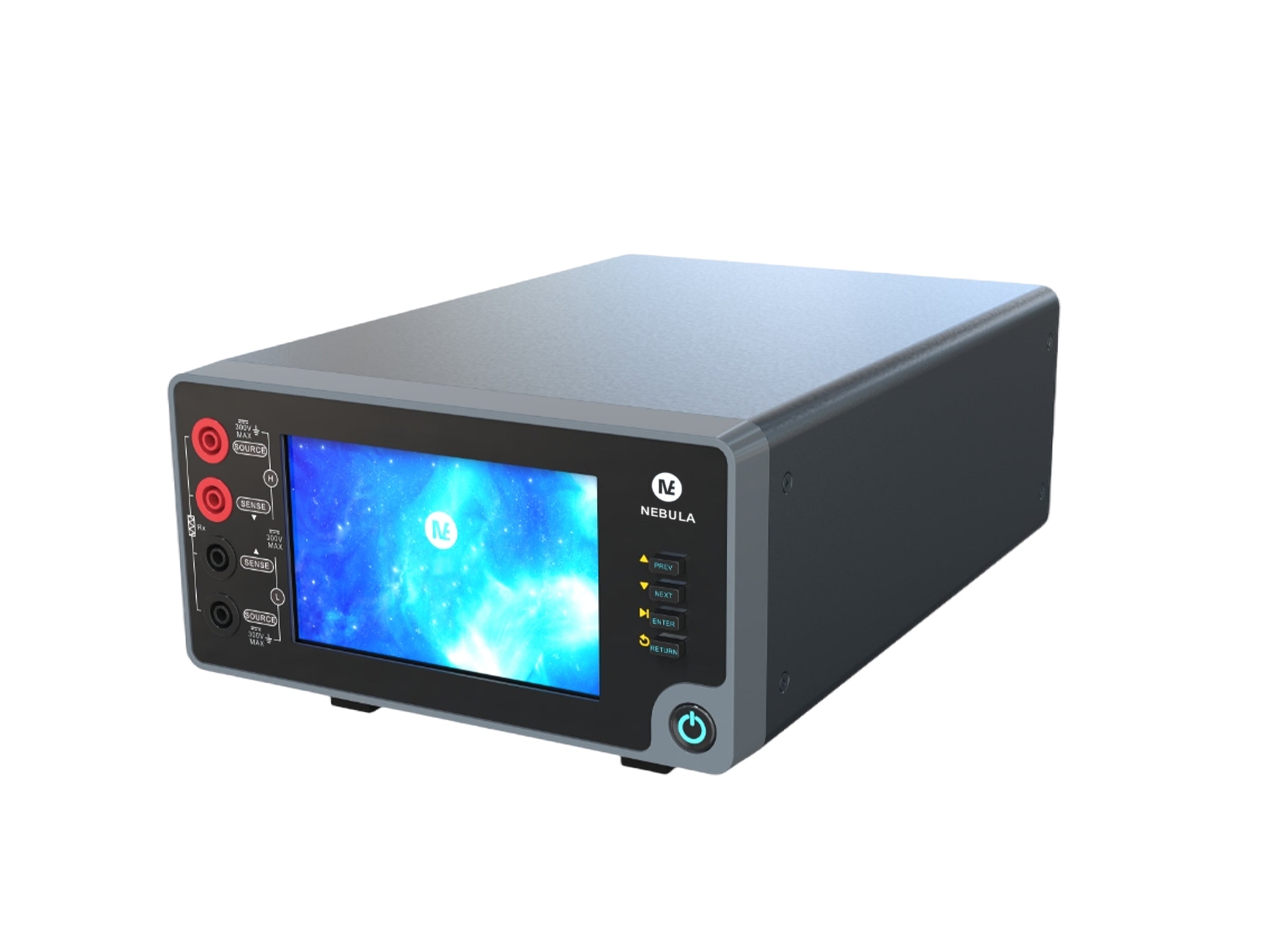

Nebula Voltage and Internal Resistance Test System NEIA-0300-V001
Product details:
NEIA-0300-V001 voltage and internal resistance test system can be applied to the test of the internal resistance and voltage of large single cells to high voltage battery packs.
About Nebula
Nebula is a global leader in advanced battery testing equipment, renowned for its precision, reliability, and cutting-edge technology. Our comprehensive product range supports a wide array of applications, including battery R&D, manufacturing automation, and energy storage systems. With a dedicated after-sales service team based in North America, we provide direct, localized support to ensure seamless operation and customer satisfaction. Nebula’s commitment to innovation and quality positions us at the forefront of the industry, empowering clients worldwide to achieve exceptional performance and sustainability goals.
MSE Supplies is an authorized distributor of Nebula in the USA. The product figure is for reference only. The actual product may look different based on product configuration.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
Specifications:
| Functional description | Functional range | Accuracy |
| Resistance test range and accuracy | 0.0001mΩ(max display 3.1500mΩ, resolution 0.1μΩ) ~ 3000Ω range (max display 3150.0Ω, resolution 100mΩ), 7-range for switching | 3mΩ to 3000Ω. ±0.3% rdg. ±5 dgt. (Add ±6 dgt. for 1PLC Add ±5 dgt. for 2PLC. Add ±4 dgt. for 4PLC. Add ±3 dgt. for 8PLC) 0.0001mΩ～3mΩ: ±0.3% rdg. ±30 dgt. (Add ±30 dgt. for 1PLC, ±25 dgt. for 2PLC, ±20 dgt. for 4PLC, ±15 dgt. for 8PLC |
| Testing source frequency | 1 kHz | ±0.2 Hz |
| Testing source current | 100 mA (3mΩ～30mΩ range) 10 mA (300mΩ range) 1 mA (3Ω range) 100 uA (30Ω range) 10 μA (300Ω~3000Ω range) |
±10%FS |
| Voltage testing range | 0~ 6V（resolution 10μV) 6~ 60V（resolution 100μV） 60~300V (resolution 1mV) |
±0.005%rdg. ±3dgt. |
| Sampling time | 50HZ: 1PLC：20ms, 2PLC：40ms, 4PLC：80ms, 8PLC：160ms, 16PLC：320ms 60HZ:1PLC：17ms, 2PLC：34ms, 4PLC：68ms, 8PLC：136ms, 16PLC：272ms |
|
| Line drop detection (max allowable line resistance) | Sampling cable: 6R（3mR~30mR), 30R（300mR~3R）Output cable：6R（3mR~30mR), 30R（300mR~3R） | |
| Interface | EXT I/O, RS-232C, USB Host, USB, Ethernet, Power Input, Test Interface, RS-485 | |
| Input power of the host machine: | 100~240V, 47~63HZ | |
| Power of single channel | 25W | |
| Dimension (W*D*H) unit(mm) | 200.54* 286*100.68 | |
| Dimension with foot pads (W*D*H) unit(mm) | 200.54* 286*106.81 | |
| Weight of the chassis | 4KG |
