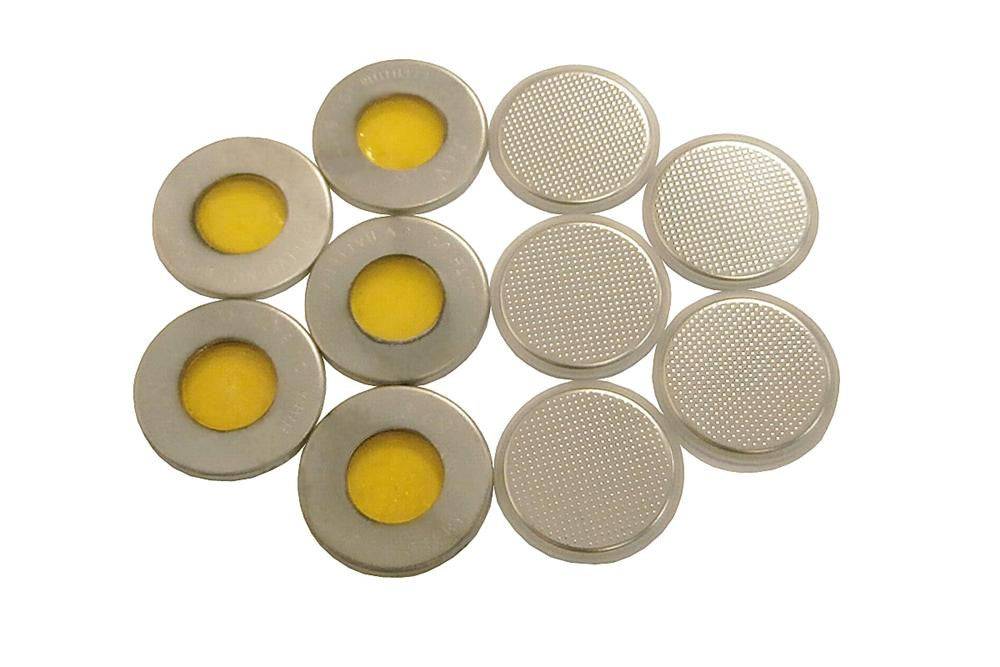

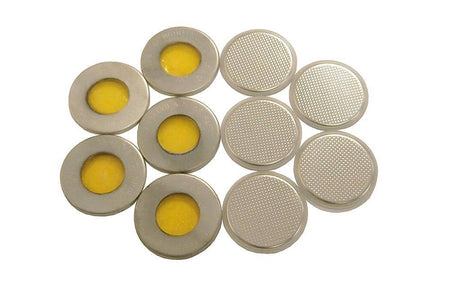

MSE PRO 5 pcs of CR2016 Coin Cell Case With One Side Kapton Window For In-situ XRD Measurement
Regular price
$ 131.95
Regular price
$ 148.95
Sale price
$ 131.95
Couldn't load pickup availability
Still have questions? Ask our experts!
Product Details:
CR2016 Coin Cell Battery Case with one side Kapton Window and Polypropylene Sealing O-ring. The Kapton window is designed for in-situ XRD measurement of battery material phase variations during charge and discharge
|
Specifications |
|
| Product SKU# | BR0110 |
| Pack Size | 5 pcs per pack |
|
Material |
Stainless Steel 304 case with one side Kapton window and Polypropylene Sealing O-ring |
|
Overall Dimensions |
CR2016 20mm x 1.6mm |
|
Case Dimension |
Cathode: O.D. = 20.0mm, I.D. = 19.4mm |
|
Kapton Window Dia |
10 mm |
| Kapton Window thickness |
0.18 mm |
