MSE PRO™ Large Arc Melting Furnace

MSE PRO™ Large Arc Melting Furnace is mainly composed of arc melting vacuum chamber, electrode and lifting mechanism, furnace door opening mechanism, water-cooled crucible, vacuum system and power supply system, etc.

Equipment structure:

Arc melting vacuum chamber: It adopts double-layer water-cooling structure, the inner and outer layers are welded by stainless steel. The furnace body is equipped with a turning manipulator for melting and turning samples. It is equipped with an observation window, vacuum interface, inflation and deflation valves, etc. The furnace cover is equipped with an upper electrode interface, with a novel structure and beautiful appearance.
Electrode and lifting mechanism: It can rotate freely 360 degrees. The electrode is lifted by a screw rod and adjusted electrically, which is convenient and flexible. The interface is connected by a welded bellows to ensure reliable vacuum sealing.
Furnace door opening mechanism: The furnace door is opened manually, which is easy to operate and easy to load and unload materials.
Water-cooled copper crucible: the water-cooled copper crucible is made of red copper, with six stations, one of which is a hemispherical station with suction casting function with a bulk density of 80-100g, and five melting and degassing stations with a bulk density (sample weight according to 7.8g/cm3) of 150-200g.
Vacuum system: It is composed of backing pump + molecular pump + compound vacuum gauge, pneumatic vacuum valve and various pipelines. 6. Power supply control system: The control system and the furnace body are integrated and equipped with a touch screen. The operation buttons are modularly arranged according to their functions, which is intuitive and convenient. The arc power supply uses a special power supply for arc melting, which has a high safety factor and strong stability.

Features:

The furnace body is designed with SS304, which is beautiful and will never rust.
The vacuum chamber adopts a double-layer water-cooled structure, which can be used for vacuum melting for a long time.
Equipped with a large-caliber observation window, the melting situation in the furnace can be observed in real time.
The melting temperature is high, and max. temperature can reach up to 3500 degrees.
A special power supply for arc melting is used, which has high efficiency and long life.
Equipped with an operating table and a manipulator to make the operation more convenient.
Equipped with a touch screen display control system, the control data is intuitively displayed, and the equipment operation is simple and easy, without the need for professional learning.
Equipped with a vacuum unit, with gate valve, shut-off valve, and bypass valve to achieve programmed vacuum, with safety protection, which can effectively prevent artificial damage to the molecular pump caused by mis operation.
It comes with a water-cooling unit, and no additional cooling water circuit is required.
Equipped with a professional infrared temperature probe to monitor the melting temperature and provide over-temperature protection.
The water-cooled electrode can move 360 degrees, which is flexible to operate.
The robot with material turning function can turn the material during the melting process, making the material melting more uniform.

Specifications:

Model	CY-VMF-AH-1000
Melting temperature	Max. 3500^oC
Chamber material	304 stainless steel
Chamber structure	Double-layer water-cooled structure
Chamber size	Diameter about 400mm, height about 410mm
Melting electrode	Tungsten needle electrode
Arc ignition method	High-frequency arc ignition
Melting current	≦2000A
Protective gas	Argon
Molecular pump	Pumping speed 600L/s
Backing pump	Bipolar rotary vane pump, pumping speed 2.2L/s
Vacuum gauge	Composite vacuum gauge, measurement range 10⁵ Pa ~ 10^-5 Pa
Vacuum degree	＜8.0*10^-3Pa
Input power supply	Three phases AC380V, 60Hz, ~30KW
Melting crucible	Six stations, one of which is a hemispherical station with suction castingfunction with a bulk density of 80-100g, and five melting and degassing stations with a bulk density (sample weight according to 7.8g/cm3) of 150-200g
Working gas	High purity Argon gas (≧5N) or mixed gas of Ar and H2 (5% H2 + 95% Ar)

MSE Supplies offers a variety of Arc Melters and accessories, to suit different applications and requirements. Please contact us to discuss your needs.

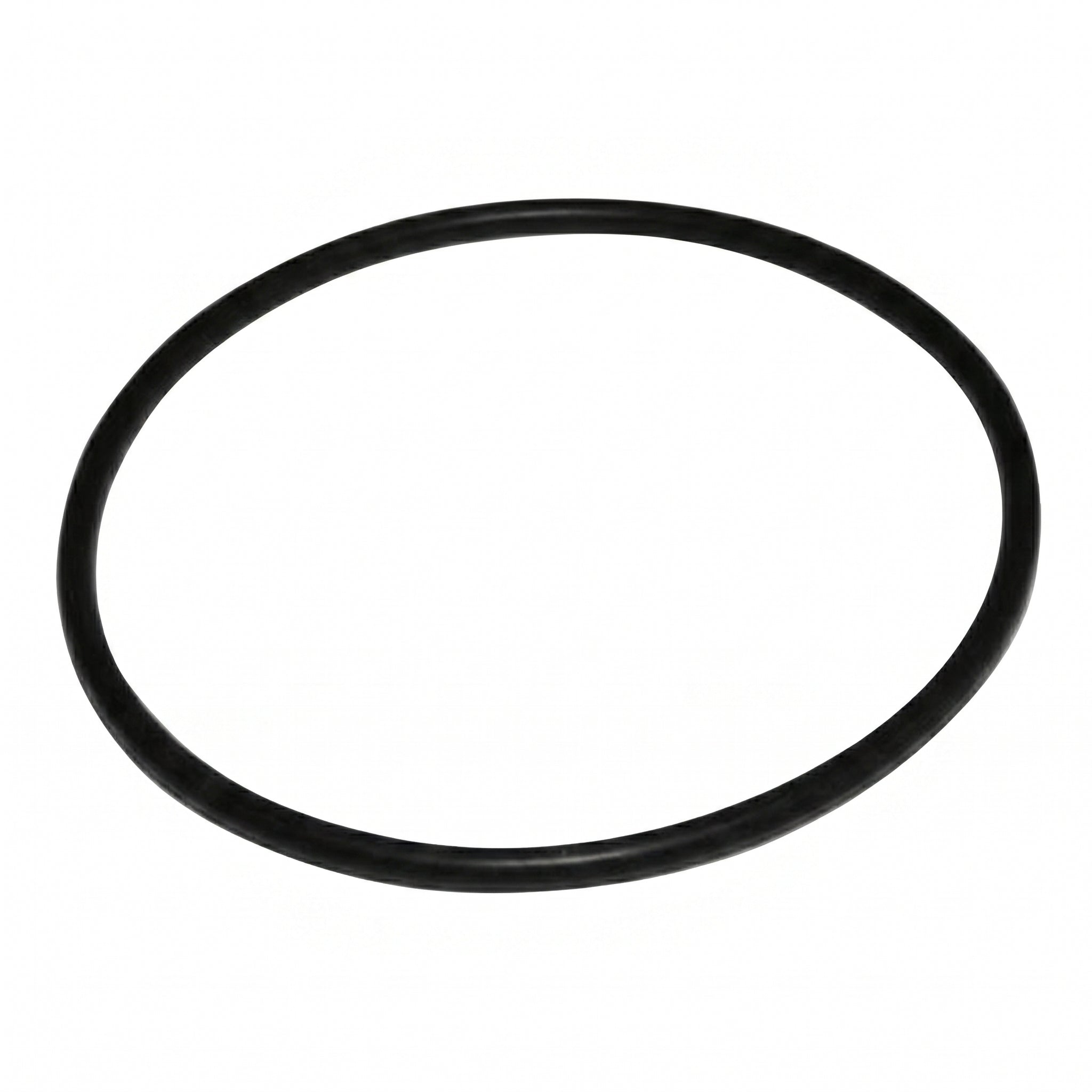

O-ring 5376, O-RING VITON DI 35 x 4 mm, for arc melter AM, part number 5376
