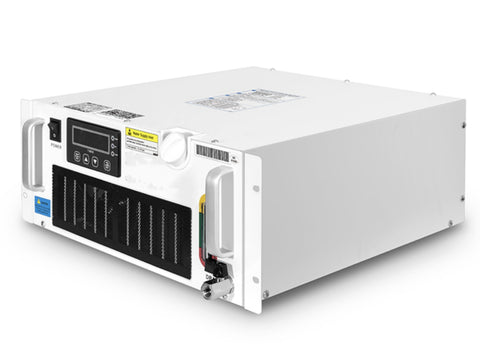

TEYU 4U Rack Mount Water Chiller for UV Laser Ultrafast Laser

The rack mount water chiller stands at a compact 4U height, making it an ideal choice for 3W-5W UV laser and ultrafast laser applications. With its PID control technology, it offers exceptionally precise cooling, maintaining stability within a remarkable ±0.1°C range and a cooling capacity of up to 380W. The chiller's exceptional temperature stability is perfectly suited to meet the rigorous demands of laser processes.

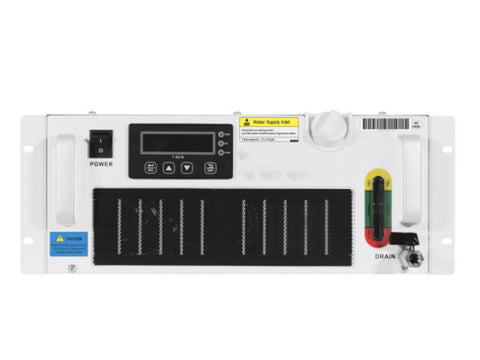

Featuring standard components like a robust water pump, high-performance cooling fan, and integrated front handles for enhanced mobility, the rack mount water chiller ensures ease of use. Its front-mounted water fill and drain ports further add to the convenience. The refrigerant used in this chiller complies with environmental standards. Despite its small, lightweight, and space-saving design, the water chiller delivers superior performance, making it the embodiment of a compact and high-precision laser cooling solution that exceeds your expectations.

Main Features:

1. Intelligent functions

• Low tank water level detecting
• Low water flow rate detecting
• Over water temperature detecting
• Heating of the coolant water at low ambient temperature

2. Self-check display

• 12 types of alarm codes

3. Easy routine maintenance

• Toolless maintenance of dustproof filter screen
• Quick-replaceable optional water filter

4. Communication function

• Equipped with RS485 Modbus RTU protocol.

Technical Data

The working current can be different under different working conditions.

The above information is for reference, for more detail or different chillers, please contact us now.
