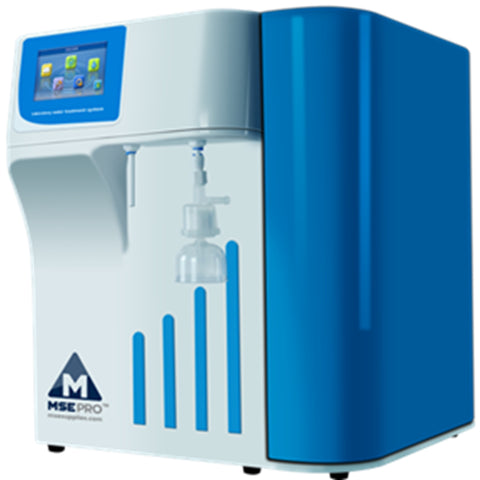

MSE PRO Water Deionization System (TYPE II Grade Water)
SKU: MA0065584-A
MSE PRO™ Water Deionization System (TYPE II Grade Water)
Features
- Colored touched screen, humanized operation interface make users completely monitor controller’s working status and real-time data.
- ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, self-priming door.
- Type U Korean quick-insert filters, used imported filtering materials.
- Upgraded self-cleaning filter which with design of built-in 10’’10μm stainless steel filter mesh and silicone soft scraping, it can clean anytime, perfectly replace PP cotton filter, no need exchange.
- Long-acting KDF filter whose adsorption efficiency and lifetime are more than 10times as equal quantity activated carbon filters, this avoids frequent filter replacement.
- Imported UF ultra filtration column ensures meet request for removing pyrogen and RNA.
- Built-in pressure tank which has inner pouch whose material is anti-bacteria, and it is transparent, the inner pouch can be changed anytime.
- Inbuilt feed water pressure test gauge to real time monitor tap water pressure and filters blocking.
- Lifetime of PP cotton activated carbon filter, RO membrane and ultra purification columns can be set to display the elapsed & rest time of consumables. Automatic reminder for filter replacement to avoid water quality decreasing.
- Perfect managing functions of RO&UP water making, circulation system and sterilization.
- Feed water, RO and UP water three ways water quality sensor and five ways switches signal are accessed integrated, with functions of timing quantitative water taking.
- Equipped with USB Host interface, it supports data export function of historical alarm record and historical water intake record.
- Low-voltage 24VDC is used as the main power supply, which meets the safety regulations and meets the requirements of humid environment, and will not cause personal injury.
- Can be with inner circulation system to ensure water quality keep at the highest level. ( optional)
Specifications:
| Water rate | 10 Liter per hour |
| Production speed | 1.5-2 L/min（with pressure barrel） |
| The water requirements | Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃ |
| RO water Parameter | |
| Ion rejection rate | 97%-99% (when using a new RO membrane) |
| Organic matter rejection rate | >99% when MW>200 Dalton |
| Particle and bacterial rejection | > 99% |
| Application | Front system of ultra-pure water machine, buffer configuration, photosensitive film washing, water supply for stability experiment box, meteorological experiment equipment, hydrogen generator, battery adding liquid, electroplating and other instruments |
| DI water Parameter(ASTM TYPE II grade water) | |
| Resistivity (25℃) | 10-16 M Ω. cm @ 25 ℃ |
| Conductivity | <0.1 μS/cm |
| Total organic carbon (TOC) * | <30 ppb |
| Application | Preposition unit of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical&biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt spray test chamber. |
| UP water Parameter(ASTM TYPE I grade water) | |
| Resistivity (25℃) | 18.25 M Ω. cm @ 25 ℃ |
| Heavy metal ion | < 0.01 ppb |
| Total organic carbon (TOC) * | <3 ppb |
| bacteria | < 0.1 cfu/ml *(with terminal filter) |
| Particulate matter (> 0.1 microns) | <1/ml |
| Pyrogen (endotoxin) | < 0.001 Eu/ml |
| Ribonuclease (RNases) | <1pg/ml |
| Deoxyribonucleases (DNases) | <5pg/ml |
| Application | Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing |
| Electrical requirements | 100-240V, 50/60Hz, 48-72W |
| The system configuration | Host machine (including 1 set of purification column) +TDS pen + accessory bag |
Operation Screen Display
Process
Filter Function
Product Consumables List
| No | Filter element | Replace cycle | Qty |
| 1 | KDF composite filter | About 1 year | 1 pc |
| 2 | 11" PP filter | About 4-6 month | 1 pc |
| 3 | 11" activated carbon filter | About 4-6 month | 1 pc |
| 4 | 75 GPD RO membrane | About 1-2 years | 1 pc |
| 5 | 11" deionized purification column (imported resin) | About 1000 liter/pc | 2 pcs |
| 5 | 11" ultra-purification column (imported resin) | About 1000 liter/pc | 4 pcs |
| 6 | 0.2 μm imported PES terminal filter | About 2-3 years | 1 pc |
| 7 | Imported PES 5000 Dalton UF heat source column | / | 1 pc |
| 8 | Dual wavelength (185 & 254 nm) UV lamp tube (import) | About 9000 hours | 1 pc |
Note: The filter replacement cycle in the table is estimated based on previous customer experience. It is only a suggestion. The specific period is determined by the water quality.
