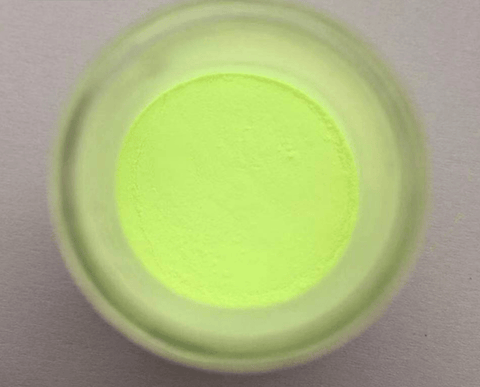

MSE PRO Lutetium Aluminum Garnet (LuAG) LED Phosphor
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.
Product details:
Lutetium Aluminum Garnet (LuAG) LED Phosphor can be effectively excited by a 450nm blue LED chip with an emission peak wavelength in the 510-540nm range. Combined with nitride red phosphor, a high CRI spectrum with Ra above 95 can be achieved.
SKU#: LM0103
Lutetium Aluminum Garnet (LuAG) LED Phosphor |
||||||
|
Item
|
Particle Size (um)
|
Color
|
1931-CIE Chromaticity diagram
|
Spectrum performance
|
||
|
x
|
y
|
Excitation wavelength（nm）
|
Emission peak λp（nm）
|
|||
|
LuAG
|
15 ± 1μm
|
yellow green
|
0.347
|
0.575
|
440-470
|
513
|
|
15 ± 1μm
|
yellow green
|
0.361
|
0.573
|
440-470
|
516
|
|
|
15 ± 1μm
|
yellow green
|
0.382
|
0.564
|
440-470
|
523
|
|
|
15 ± 1μm
|
yellow green
|
0.394
|
0.565
|
440-470
|
524
|
|
|
15 ± 1μm
|
yellow green
|
0.402
|
0.560
|
440-470
|
527
|
|
