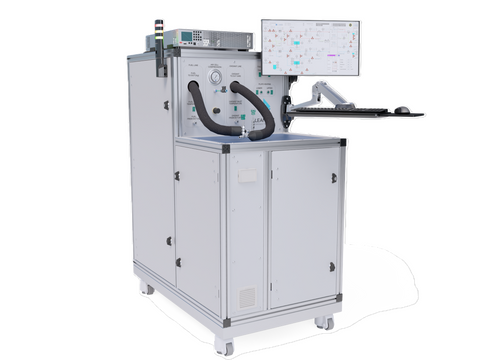

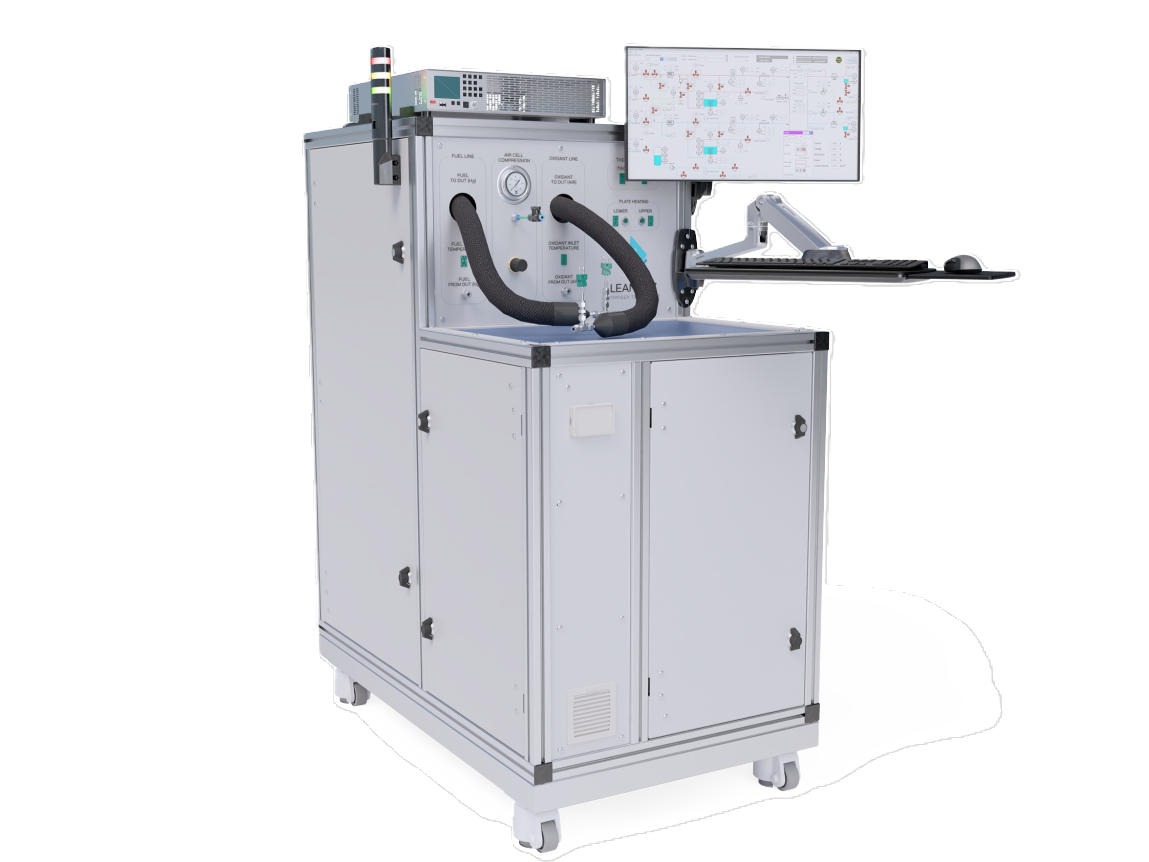

LEANCAT PTS-1 PEM Fuel Cell Test Station
Couldn't load pickup availability
Customizable Product
Together with our experts we will create a product designed for your needs
Still have questions? Ask our experts!
LEANCAT PTS-1 PEM Fuel Cell Test Station
Buy LEANCAT products from MSE Supplies at the best value.
MSE Supplies offers fuel cell test station from LEANCAT
Key features
- For PEM fuel cells testing only
- User-Friendly manual operation with P&ID visualization or automated operation using in-house developed Python library
- 3 mass flow controller on each line ensuring rapid change in gas parameter
-
Cell/stack temperature control with liquid cooling circuit
- Highly customizable station
Applications
- Research and development of large area PEM fuel cells
- Benchmarking of PEM fuel cells and short stacks thanks to extensive scripting possibilities
Specifications
| Max power | 100 W |
| Fuel flow rate | 0.02 to 2 Nl/min |
| EIS | optional |
| Max dew point temperature | 90 °C |
| Max. current | 120 A |
| Oxidant flow rate | 0.05 to 5 Nl/min |
| Gas pre heating | 120 °C |
| Max backpressure | 4 barg |

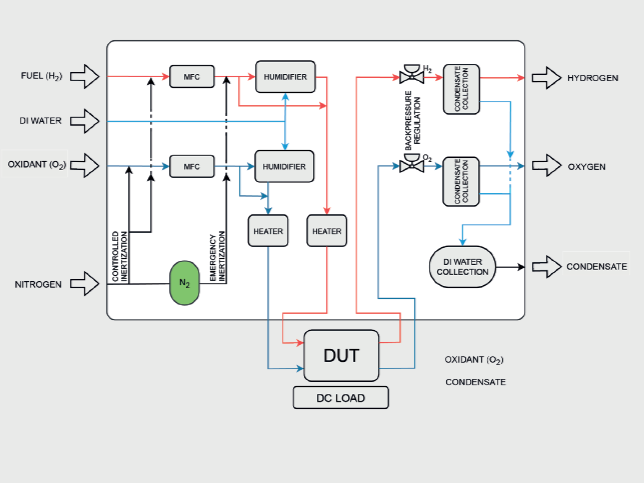

Block Diagram
User manual
MSE Supplies offers a variant of fuel cell test station. Please contact us for more information.
