InfinityPV Laboratory Roll-to-Roll Coater Gear Pump

InfinityPV Laboratory Roll-to-Roll Coater Gear Pump

SKU: IPVGPUMP

  • $ 18,81895
  • Save $ 2,25900


Request a Quote

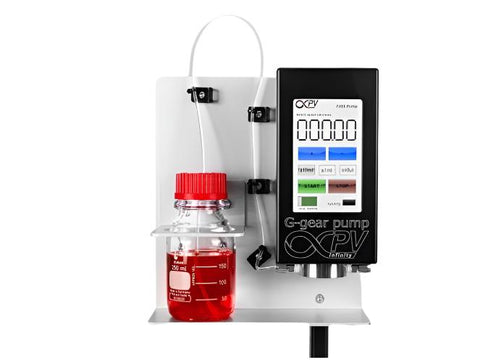

InfinityPV Laboratory Roll-to-Roll Coater Gear Pump

Buy InfinityPV products from MSE Supplies at the best value.

The Gear Pump is a positive displacement pump that uses gears to pump fluids by transferring mechanical energy from the motor to the fluid. The Gear pump is ideal for applications that require a steady fluid supply over extended periods. The pump can function across a wide range of flow rates, making it suitable for various industrial processes that demand both low and high flow rates. Additionally, its design allows for the pumping of non-Newtonian fluids without imposing strict limitations on the type of liquid being used.

An integrated 5-inch color touch screen makes setting the ink flow intuitive, allowing for real-time adjustments even while the pump is operating.

Applications

  • Ink dosage
  • Chemical processing
  • Medical and pharmaceutical industry
  • Dispensing of adhesives
  • Food and beverage industry

Specifications

  • Pump Type: Internal Gear Pump
  • Flow Rate: 0.05 - 288 ml/min
  • Max System Pressure: 8 bar (1160 psi)
  • Viscosity Range: 0.3 – 1000 mPas
  • Liquid Temperature Range: -5°C to 60°C
  • Particles: <10 um

Features

  • High resistance to corrosion oxidizing and reducing media, acids and bases
  • High dosage precision CV < 1 % at low volumes
  • Broad viscosity range
  • Low pulsation delivery, low shear stress rotary micro annular gear technology
  • High differential pressures achievable even for low viscosity liquids
  • Easy Maintenance
  • Adjustable flow rate by changing RPM

MSE Supplies offers a variety of roll-to-roll coaters and its accessories. Please contact us for more information.
