GVS Filter Holder
Buy GVS products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of GVS
GVS offers a selection of filtration holders and apparatus that are designed to ensure precise filtration work with GVS membranes.
In most applications, the filter holder is just as important as the filter for accurate results every time.
Filter holders are available for a wide variety of applications including air analysis, chemotaxis, tissue culturing and general aqueous and solvent filtration.

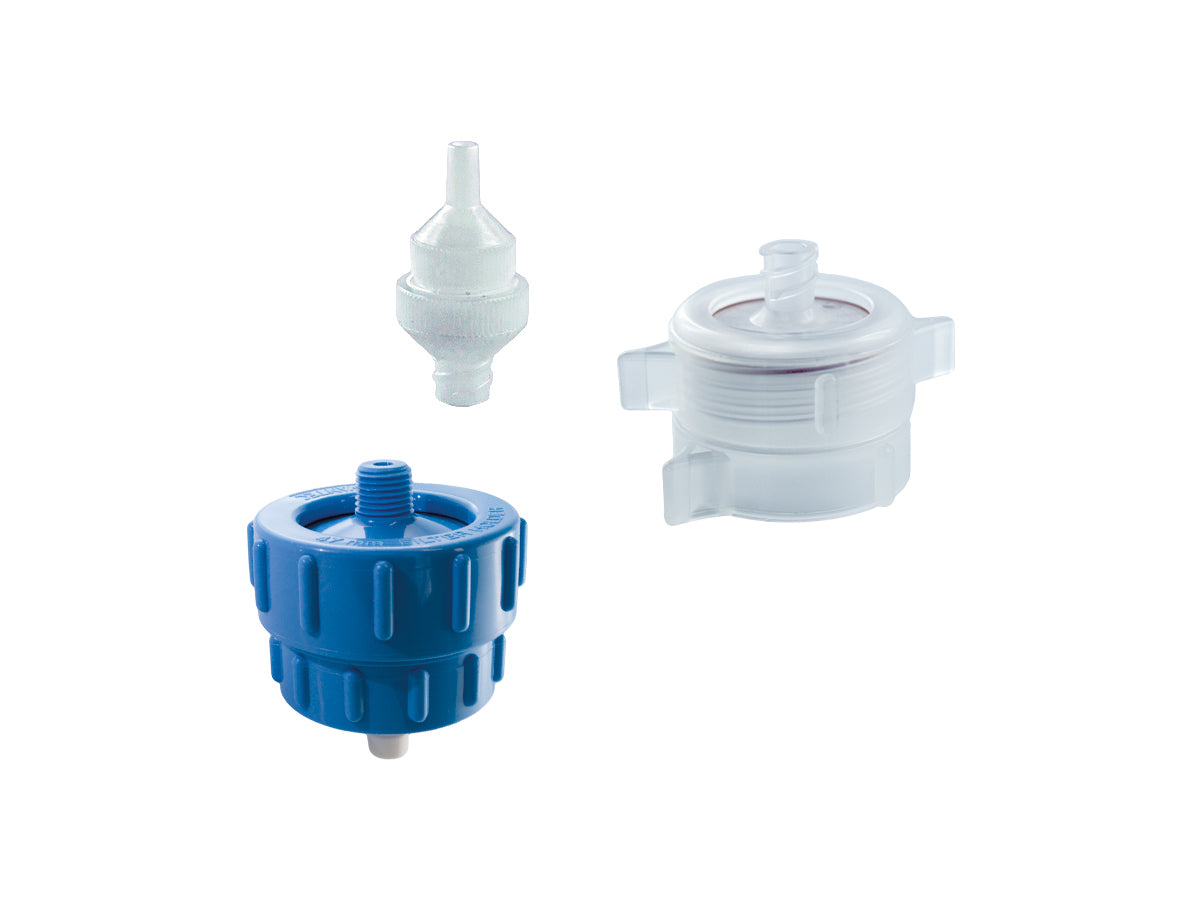

Available products are 13, 25, and 47mm.
The GVS filter holder is designed especially for ultra cleaning and sterilizing liquids under positive pressure.
In addition, this holder can be used for aseptic sampling of liquids or gases at point-of-use or when samples must be collected and processed on-site.
The polypropylene material allows these holders to be used over a wide temperature range with excellent chemical compatibility.
It can withstand temperatures up to 121°C and be autoclaved.
Sealing is achieved by simple hand tightening of the locking ring.
The In-Line holder has dual support screens, which allow for flow in either direction.
The inlet cap design and exterior locking ring allow the unit to be assembled quickly and efficiently without tearing the membrane.
3 O-rings help to prevent leaks with all membranes.
In the case of the syringe, the inlet cap locks into the base to prevent twisting damage to the membrane as the cap is tightened in case back pressure is applied.
It also allows for bi-directional sample flow.

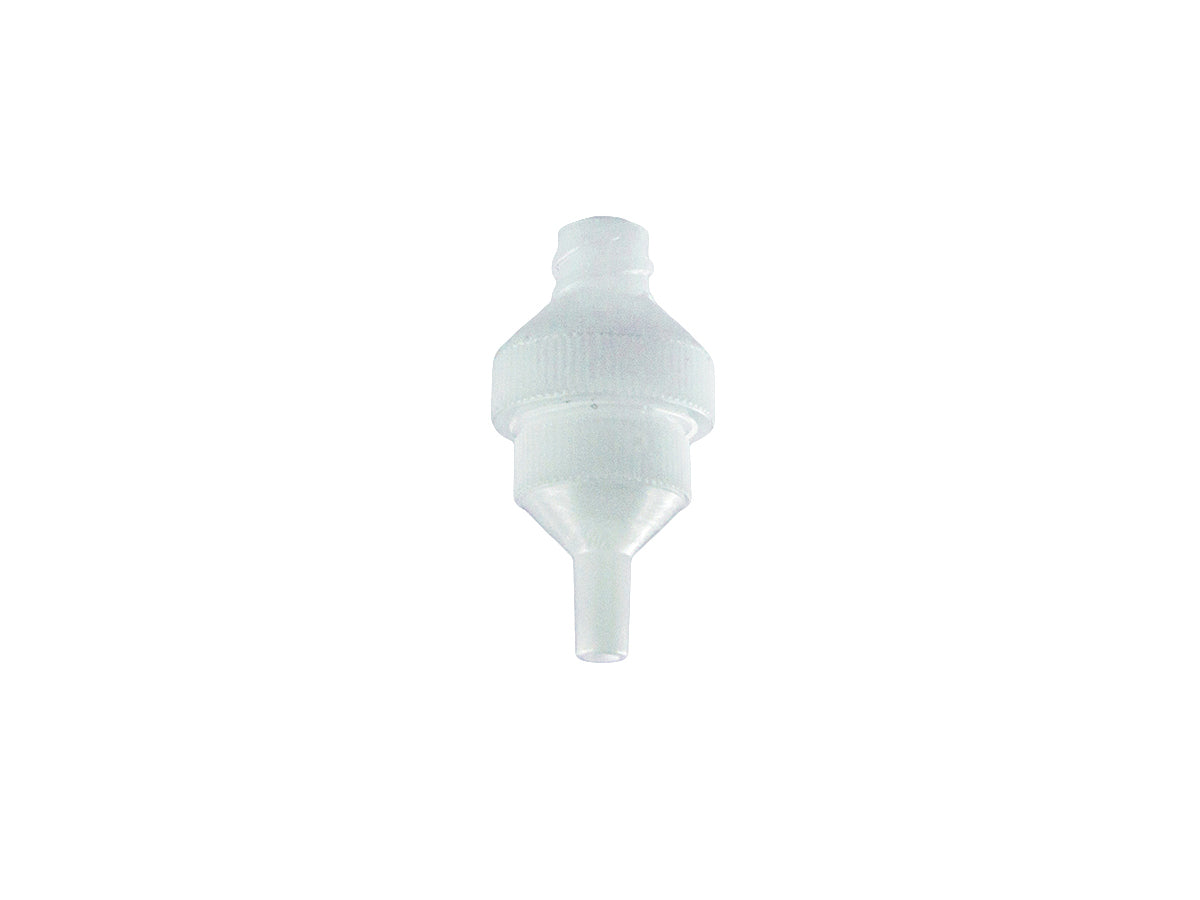

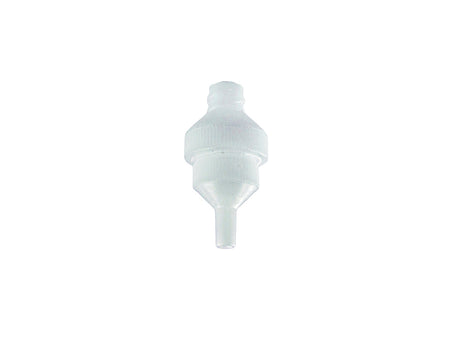

The Swinney 13mm filter holder is optimized for small volume (1-5ml) particulate removal from fluids dispensed with a syringe.
The 25mm is used to filter up to 50mL of sample.
The 47mm can filter up to 1 liter depending upon the viscosity of the sample.
- Compatibility: excellent chemical compatibility
- Quick and efficient assembly: no need for special tools
- Resistance: excellent temperature and chemical resistance
- For serial filtration: several syringe holders can be attached together
- Easy to clean and use: unique lock ring design assures proper sealing without damage to the membrane
- Conforms with EPA Method 1311 for Toxicity Characteristic Leaching Procedure: 40 CFR, Part 261, 1991 Hazardous Waste Compliance Guide
- Analysis of Biological and Organic Fluids
- Biofuel analysis
- Gas chromatography samples
GVS was founded in 1979 and is headquartered out of Bologna, Italy. GVS has a rich history of responsible innovation and a commitment to a future in which good health is a universally reachable target. In over 40 years of history, GVS has evolved from a supplier of components for the healthcare sector to a global group that produces highly technological diversified filtration solutions.
In the Healthcare & Life Sciences area, the GVS plants operate with ISO 13485 certifications and are compliant with the European Guide to Good Manufacturing Practice. Many of the products in this division have the CE certification, are registered with FDA in the United States or have registrations for the specific countries where the group operates.
