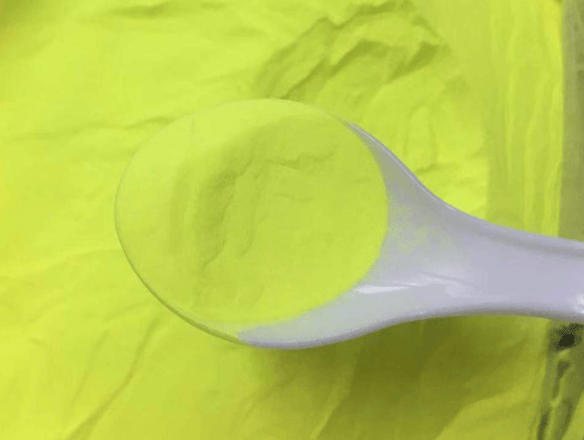

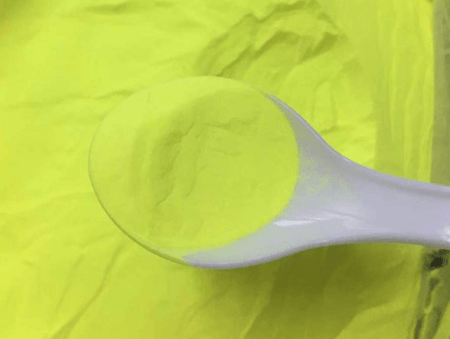

MSE PRO Yttrium Gallium Aluminum Garnet (YGaAG) LED Phosphor
Couldn't load pickup availability
Customizable Product
Together with our experts we will create a product designed for your needs
Still have questions? Ask our experts!
Product details:
Compared with Yttrium Aluminum Garnet (YAG) LED Phosphor, the addition of Gallium in Yttrium Gallium Aluminum Garnet (YGaAG) LED Phosphor shifts the peak emission wavelength to short wavelengths, therefore giving the phosphor a stronger green component. This allows the new white LED to have a variety of color temperature including daylight white (5000~6500K) as well as incandescent-like white (2500~3300 K).
SKU#: LM0102
Typical Chemical Composition:
Y3(Al,Ga)5O12:Ce
Yttrium Gallium Aluminum Garnet (YGaAG) LED Phosphor |
||||||
|
Item
|
Particle Size (um)
|
Color
|
1931-CIE Chromaticity diagram
|
Spectrum performance
|
||
|
x
|
y
|
Excitation wavelength（nm）
|
Emission peak λp（nm）
|
|||
|
YGaAG
|
15 ± 1
|
yellow green
|
0.347
|
0.575
|
440-470
|
513
|
|
15 ± 1
|
yellow green
|
0.361
|
0.573
|
440-470
|
516
|
|
|
15 ± 1
|
yellow green
|
0.382
|
0.564
|
440-470
|
523
|
|
|
15 ± 1
|
yellow green
|
0.394
|
0.565
|
440-470
|
524
|
|
|
15 ± 1
|
yellow green
|
0.402
|
0.562
|
440-470
|
527
|
|
