Beryllium Oxide (BeO), also known as beryllia, is one of the best ceramic for heat dissipation related applications. It has characteristics like high thermal conductivity, high melting point, high strength, low dielectric loss, etc. BeO ceramic also has the combination of low density and high neutron moderation and reflection capabilities compared with Aluminum Nitride (AlN) and Alumina (Al₂O₃). These properties makes BeO ceramic a great candidate for the moderator/reflector materials in nuclear reactors. It is also widely used in medical, industrial and electronics industries.

For Research Use Only (RUO). Not for use in diagnostic procedures.

Typical Specification:

Purity	99.50%
Color	White
Dielectric Constant	at 1MHz: 6.6 ± 0.2
Dissipation Factor	at 1MHz: ≤ 4x10^-4
Density	≥ 2.88 g/cm³
Thermal Conductivity @ 25 °C	≥ 285 W/mK
Flexural Strength	> 200 MPa
Volume Resistivity @ 25 °C	≥ 10¹⁴ Ω·cm

*Please contact us for customization or bulk orders.

References:

1. Thermal conductivity of beryllium oxide ceramic. Refractories and Industrial Ceramics 50, no. 6 (2009): 465-468.

2. Control of structural parameters and thermal conductivity of BeO ceramics using heavy ion irradiation and post-radiation annealing. Ceramics International 45, no. 12 (2019): 15412-15416.

3. Numerical assessment of beryllium oxide as an alternative material for micro heat exchangers. Ceramics International 46, no. 11 (2020): 19248-19255.

Google Shopping Feed Collection

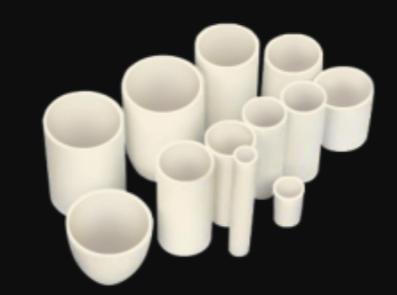

MSE PRO Customized Beryllium Oxide (BeO) Ceramic Parts
