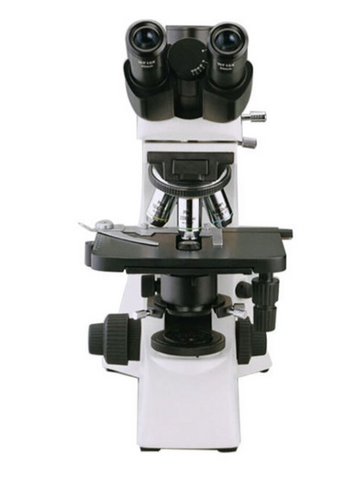

MSE PRO 25X-1000X BM-01 Biological Microscope

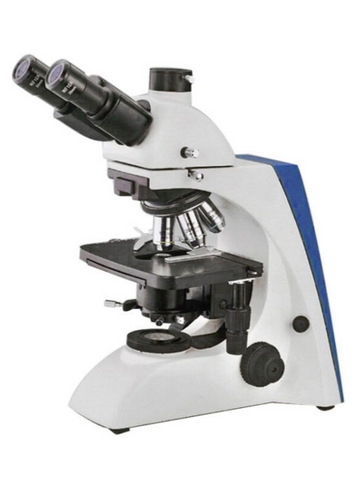

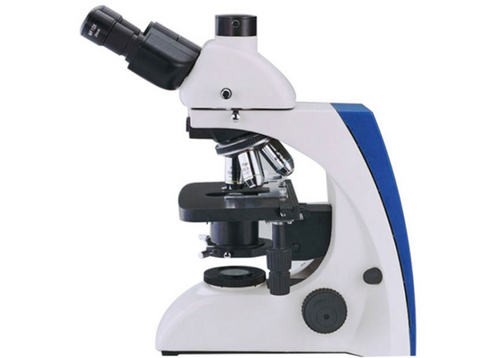

MSE PRO™ BM-01 Biological Microscope

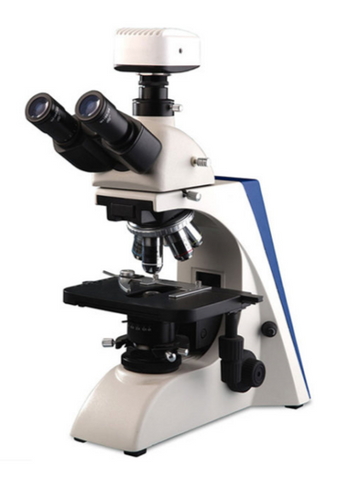

MSE Supplies offers a BM-01 Biological Microscope that can be widely used in biological study such as cell culture, tissue culture, etc. Multiple add-on systems can be added to the standard model. Optional trinocular head allows a digital camera to be mounted, which makes the data recording easy. Accessories like Fluorescence Unit, Phase Contrast Unit, Polarizer and Dark Field Condenser can be added according to your need.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
The price is for standard unit. For different accessories, please contact us.
Technical Data

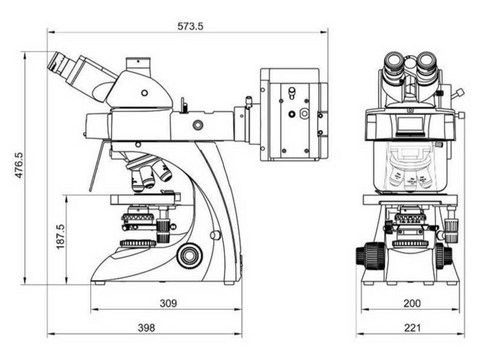

- Packing Size: 542mm×265mm×355mm
- Gross Weight: 12kg
- Net Weight: 10kg
- Include one year warranty
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
|
Items |
Specification |
Outfits |
|
|
Eyepiece |
WF10x/20mm (23.2mm) |
●● |
|
|

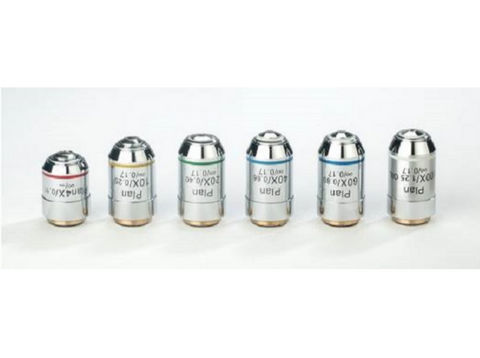

Infinity Plan Objectives |
PLAN 4×/0.10 |
W.D.=12.10mm |
● |
|
PLAN 10×/0.25 |
W.D.=4.64mm |
● |
|
|
PLAN 20×/0.40(S) |
W.D.=2.41mm |
● |
|
|
PLAN 40×/0.66(S) |
W.D.=0.65mm |
● |
|
|
PLAN 100×/1.25(S, Oil) |
W.D.=0.12mm |
● |
|
|
PLAN 2.5×/0.07 |
W.D.=8.47mm |
○ |
|
|
PLAN 60×/0.80(S) |
W.D.=0.33mm |
○ |
|
|
PLAN 100×/1.15(S, W) |
W.D.=0.19mm |
○ |
|
|
Infinity Plan Semi Apochromatic Objective |
UPlanFLN 10X/0.30 |
W.D.=7.68mm |
○ |
|
UPlanFLN 20X/0.50 |
W.D.=1.96mm |
○ |
|
|
UPlanFLN 40X/0.75 |
W.D.=0.78mm |
○ |
|
|
UPlanFLN 100X /1.30 (Oil) |
W.D.=0.15mm |
○ |
|
|
Seidentopf Binocular Head |
|
● |
|
|
Seidentopf Trinocular Head |
|
○ |
|
|
Nosepiece |
Quintuple |
● |
|
|
Mechanical Stage |
|
● |
|
|
○ |
||
|
Condenser |
Abbe N.A. 1.25 with iris diaphragm. |
● |
|
|
Swing out condenser, N.A. 0.9/0.13, with iris diaphragm. |
○ |
||
|
Koehler Illumination Wide voltage input: 100V～240V Field diaphragm, center adjustable |
12V/20W Halogen lamp |
○ |
|
|
6V/30W Halogen lamp |
○ |
||
|
3W-LED Illumination |
● |
||
|
Filter |
Blue |
● |
|
|
Green/Amber/Grey |
○ |
||
|
C-mount |
1×/0.5×/0.75×C-mount (focus adjustable) |
○ |
|
|

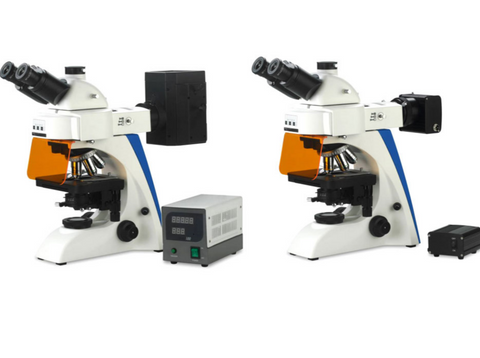

Fluorescence Attachment |

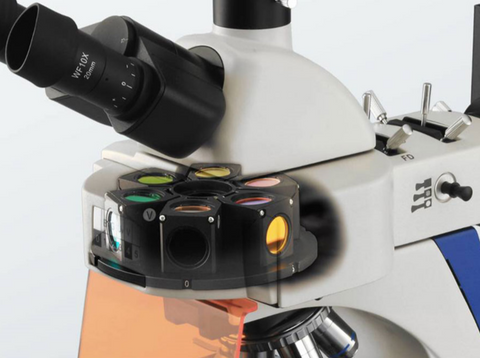

Epi fluorescence unit (six-hole disc media which can be fixed with Uv/V/B/G and another filters),100W mercury lamp. |
○ |
|
|
Epi fluorescence unit (six-hole disc media which can be fixed Uv/V/B/G), 5W-LED fluorescence lamp. |
○ |
||
|

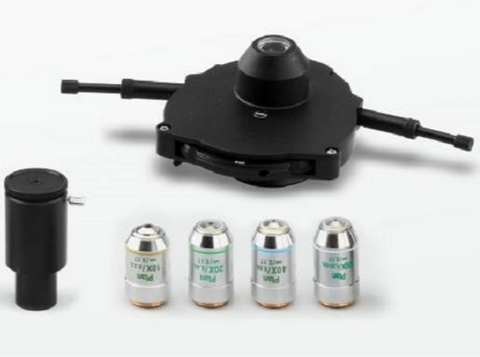

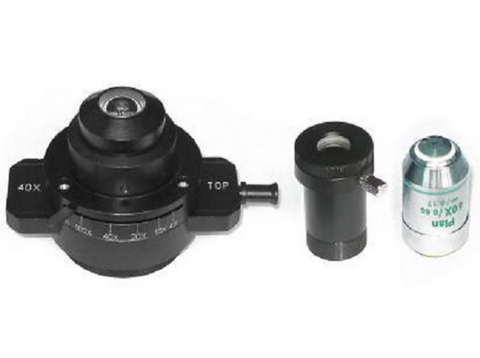

Phase Contrast Unit |
Quintuple hole turret 10×/20×/40×/100× phase contrast objective |
○ |
|
|
Independent slot 10×/20×/40×/100× phase contrast objective |
○ |
||
|

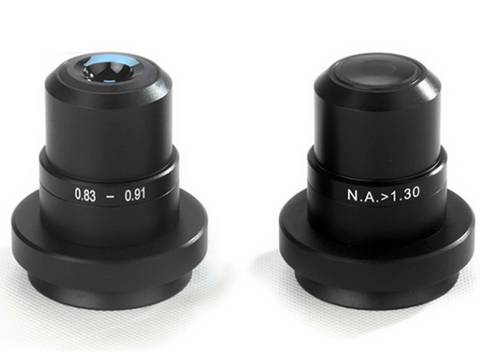

Dark Field Unit |
Dark field condenser (dry), apply to 4×- 40× objective |
○ |
|
|
Dark field condenser (wet), apply to 100× objective |
○ |
||
|

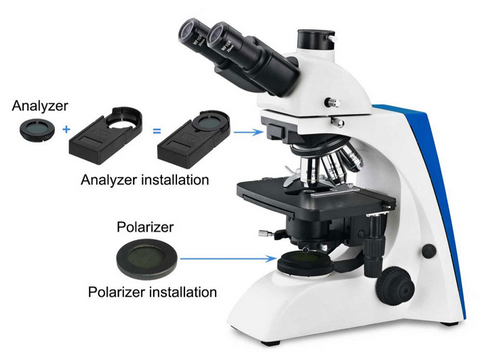

Polarizing Attachment |
Analyzer/Polarizer |
○ |
|
