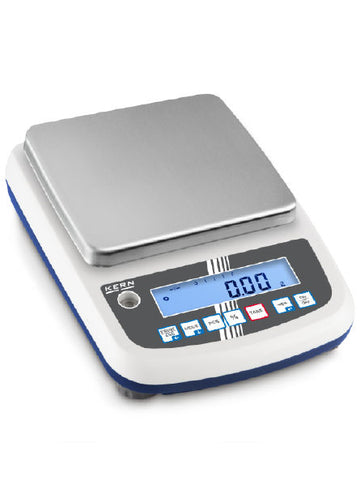

Kern PFB Series Precision Balance
Kern PFB Series Precision Balance
Buy Kern products from MSE Supplies at the best value.
MSE Supplies offers PFB Series Precision Balance from KERN & SOHN GmbH. They are quick-display precision balance with user-friendly concept of operation - now with larger housing for more secure footing.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Main Features:
- Easy to use: All primary functions have their own key on the keypad
- Compact size, practical for small spaces
- Capacity display: A bar lights up to show how much of the weighing range is still available
- Level indicator and levelling feet for precise levelling of the scale, fitted as standard, to give the most accurate weighing result
- Draught shield standard (only for models with weighing plate size mm Ø 80 and 120). Weighing space W×D×H 158 × 143 × 64 mm
- Protective working cover included with delivery
- In order to make it easier for you to make the right choice of KERN balance, we have included a quality code for each model, which is made up of two quality features and will give you technical data and pictograms in addition to the product features. This will help you to make the decision on the perfect balance for your application.
Accessories:
- Protective working cover
- Colour band
- Matrix needle printer
- Paper rolls for Printer
- Thermal printer
- Thermal receipt rolls
- Statistics printer
- Farbband
- Matrix needle printer
- Mains adapter
- Hook
- RS-232/Ethernet adapter
- RS-232/Bluetooth adapter
- Mains adapter external
For accessories, please contact us so we can help you choose appropriate products for your needs.
Technical Specifications:
|
Parameter |
PFB1203 |
PFB2003 |
PFB3003 |
PFB20002 |
PFB30002 |
PFB60002 |
PFB60001 |
|
Readability |
1 mg |
10 mg |
10 mg |
50 mg |
100 mg |
||
|
Weighing range (max) |
120g |
200 g |
300 g |
2000 g |
3000 g |
6000 g |
|
|
Repeatability |
2 mg |
20 mg |
50 mg |
100 mg |
|||
|
Linearity |
5 mg |
50 mg |
150 mg |
300 mg |
|||
|
Stabilization time |
3 sec |
||||||
|
Adjustment weight |
External calibration |
||||||
|
Warm-up time |
2 hrs |
||||||
|
Weighing units |
g, ct, bat, mo, oz, tl, (Cn), t, lb, dot, dwt, ozt, tl, (Tw), N, tl, (HK) |
||||||
|
Dimensions of the housing (W x D x H) |
210 mm x 315 mm x 90 mm |
||||||
|
Weighing space |
132 mm x 1125 mm x 65 mm |
|
|||||
|
Net weight (kg) |
2.0 |
1.4 |
2.0 |
1.6 |
1.4 |
2.0 |
2.0 |
|
Operating temperature |
15°C ~ 30°C |
||||||
|
Operating Humidity |
0 % ~ 80 % |
||||||
|
Input voltage |
100 V – 240 V, 50 / 60 Hz |
||||||
* For applications that require verification, please order verification at the same time
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
