Product Details
Item number: 0025007063

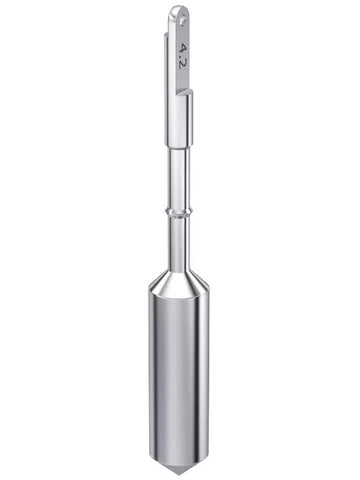

VOL-SP-4.2 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 3.8 ml.
It is required to use the 4.2 ml chamber VOL-C-RTD-3.8 in combination with the VOL-SP-4.2 spindle. The chamber is available as accessory.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA VOL-SP-4.2 Viscometers
| Spindle geometry | Cylinder |
| Connection | Thread M2.5 LH |
| Hook connector | yes |
| Diameter | 7 mm |
| Immersion depth | 33 mm |
| Spindle length | 56.5 mm |
| Sample volume | 4.2 ml |
| Flow Jacket | yes |
| Mounting Bracket | yes |
| Sample container: | Specified chamber |
| Working temperature max. | 100 °C |
| Viscosity Accuracy (FSR) | 2 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 599.9 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 119974 mPa.s |
| Min. FSR match ROTAVISC me-vi | 6400 mPa.s |
| Max. FSR match ROTAVISC me-vi | 1280000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 12800 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 2560000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 51200 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 10240000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 9 x 59 x 9 mm |
| Weight | 0.008 kg |
| Permissible ambient temperature | 5 - 40 °C |
